Inspection Of Resistance (On-vehicle)

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistances between the following terminals.
- If any resistances are out of specifications, inspect the ground, then perform the operation and the part inspection.

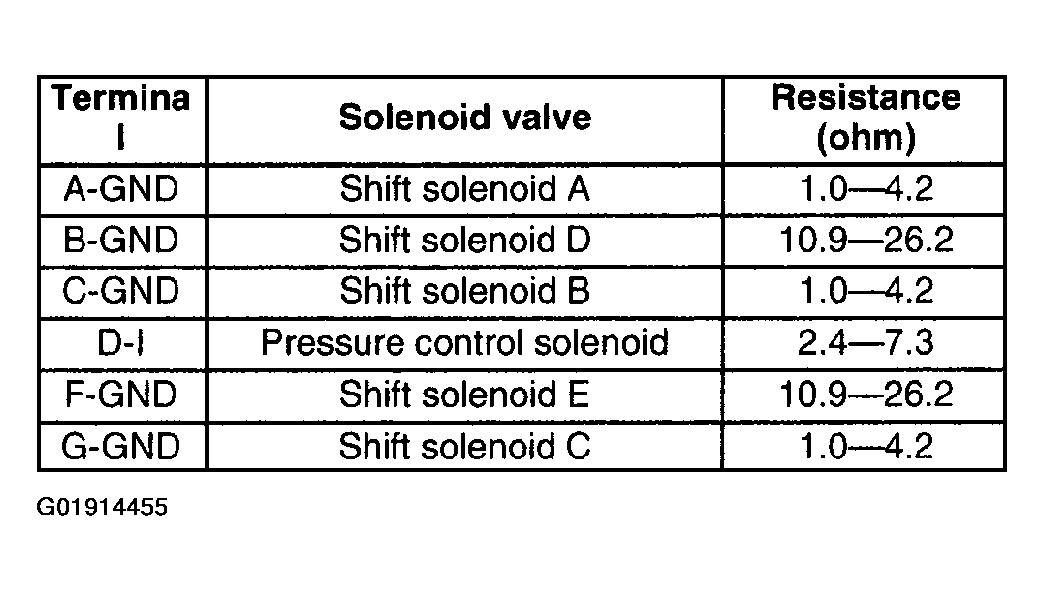

  Fig 1: Terminal Resistances Chart
  Courtesy of MAZDA MOTORS CORP.

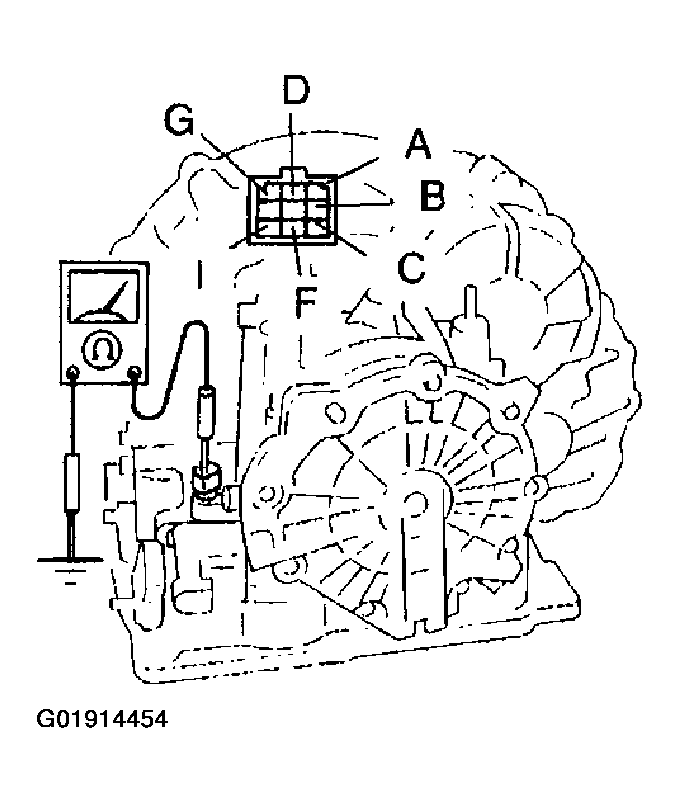

  Fig 2: Measuring Resistances Between Terminals
  Courtesy of MAZDA MOTORS CORP.
