D Range (Normal Mode, O/D OFF Switch OFF)

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

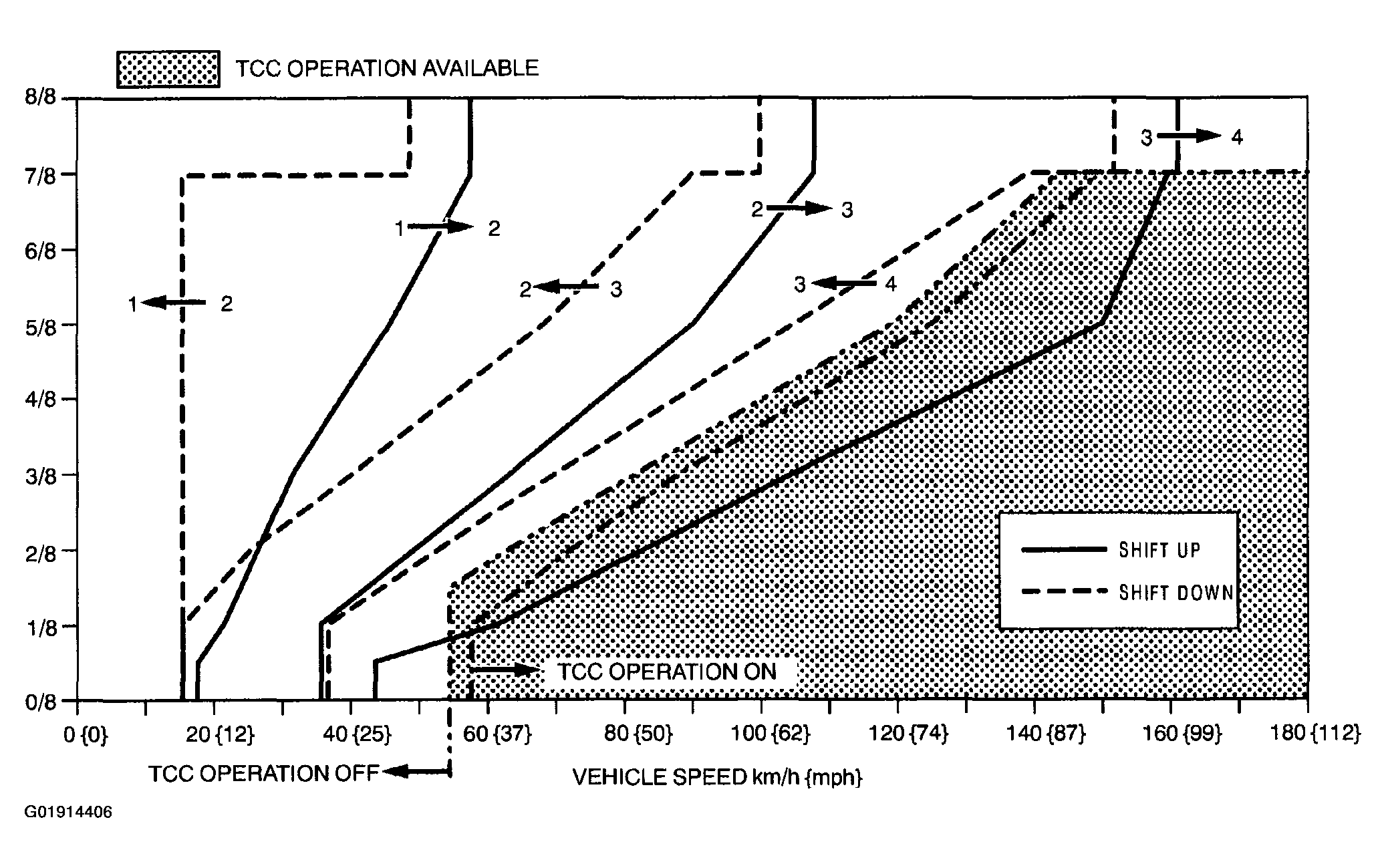

Fig 1: Shift Diagram (D Range) ZM

Courtesy of MAZDA MOTORS CORP.

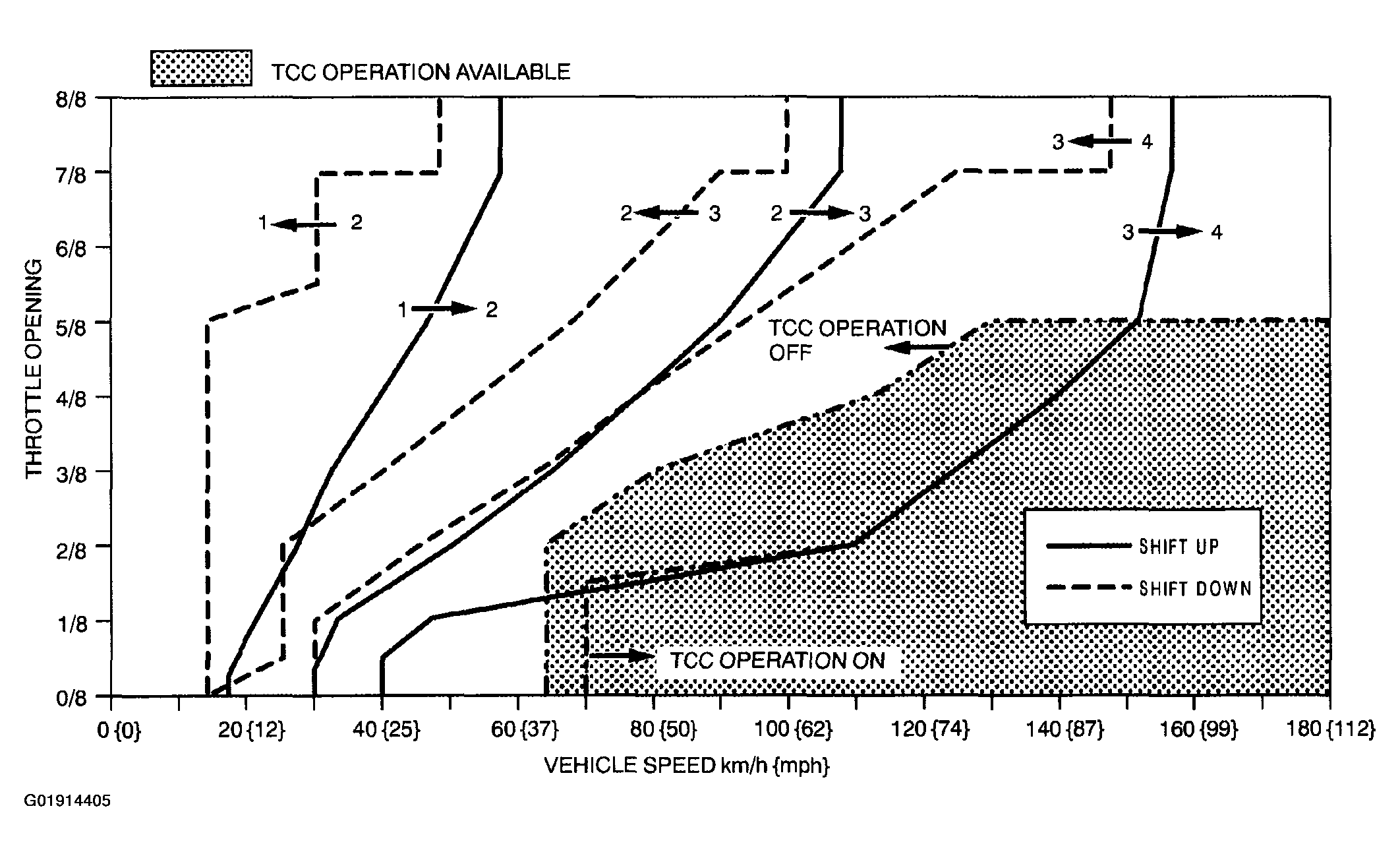

Fig 2: Shift Diagram (D Range) FS

Courtesy of MAZDA MOTORS CORP.
