Oil Cooler Removal/Installation: Notes
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

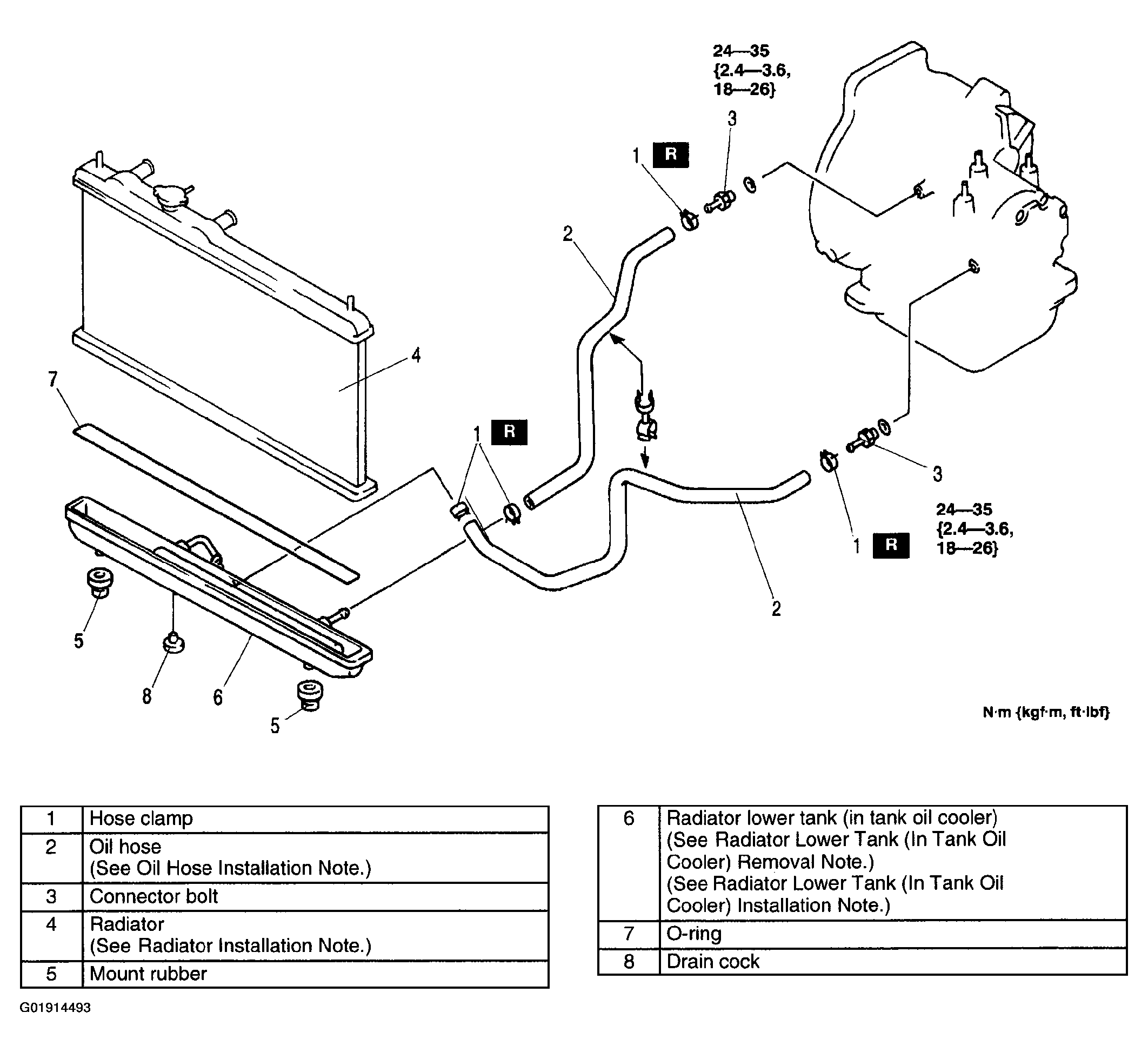

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
- Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Inspect for the coolant and ATF leakage.
- Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
- Carry out the road test. (See ROAD TEST .)
