Input/Turbine Speed Sensor Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE AIR SYSTEM .)
- Disconnect the input/turbine speed sensor connector.

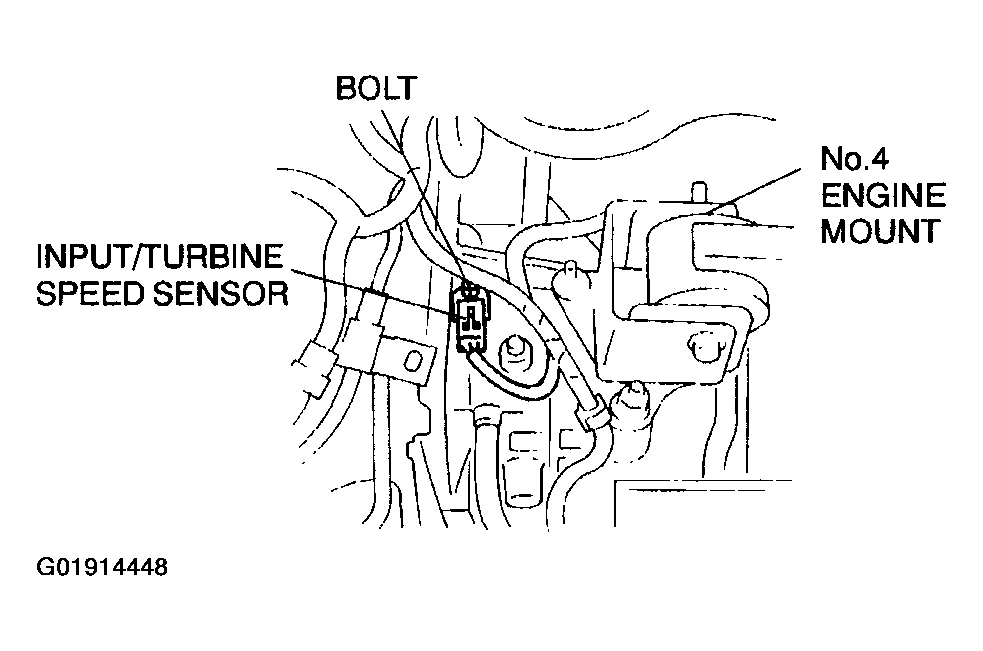

- Remove the input/turbine speed sensor.
- Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.
- Install the input/turbine speed sensor.
Tightening Torque
7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}
- Connect the input/turbine speed sensor connector.
- Install the air cleaner component. (See INTAKE AIR SYSTEM .)
- Connect the negative battery cable.
