Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE (ATX) REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Install the transaxle. (See AUTOMATIC TRANSAXLE (ATX) REMOVAL/INSTALLATION .)
    Fig 1: Drive Plate Components Removal Order
    G01914505Courtesy of MAZDA MOTORS CORP.

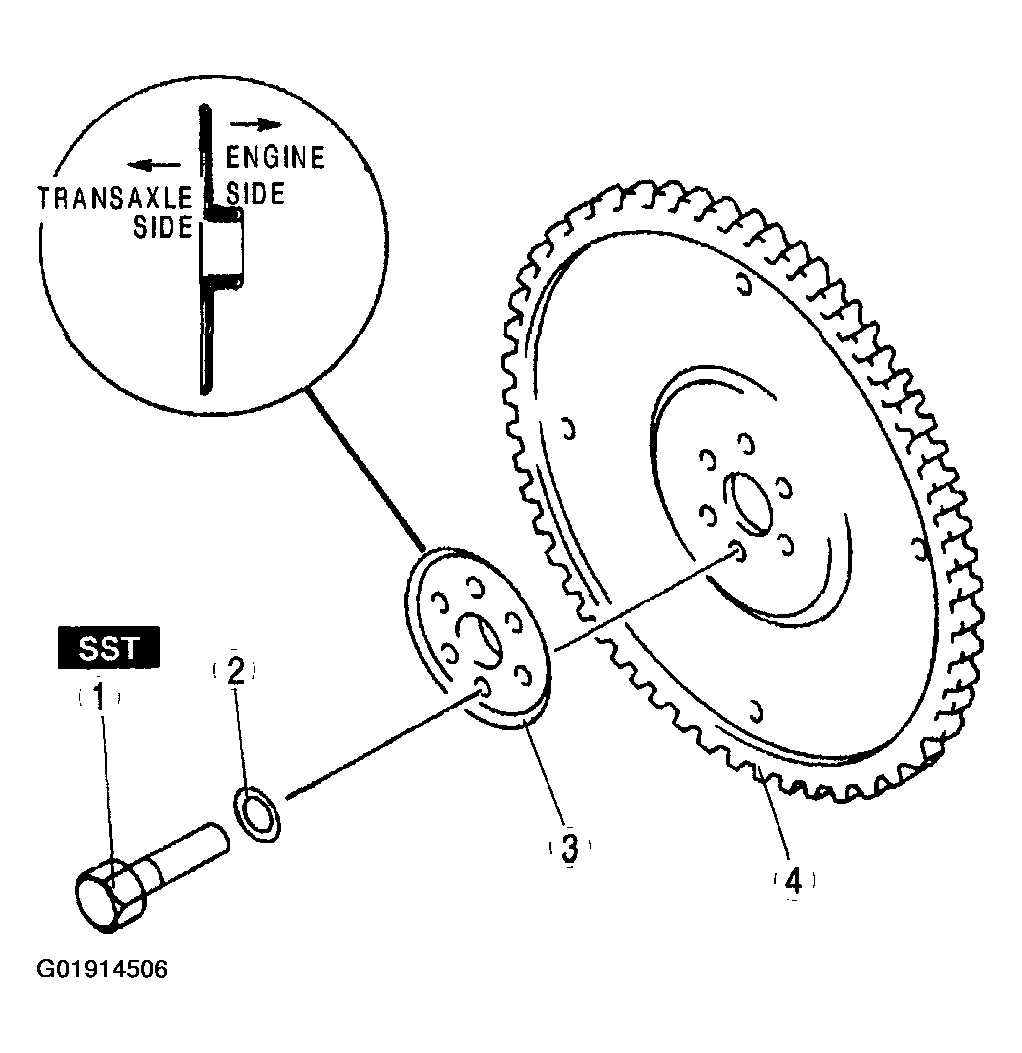

    Fig 2: Installing Drive Plate
    G01914506Courtesy of MAZDA MOTORS CORP.
