Automatic Transaxle Location Index

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

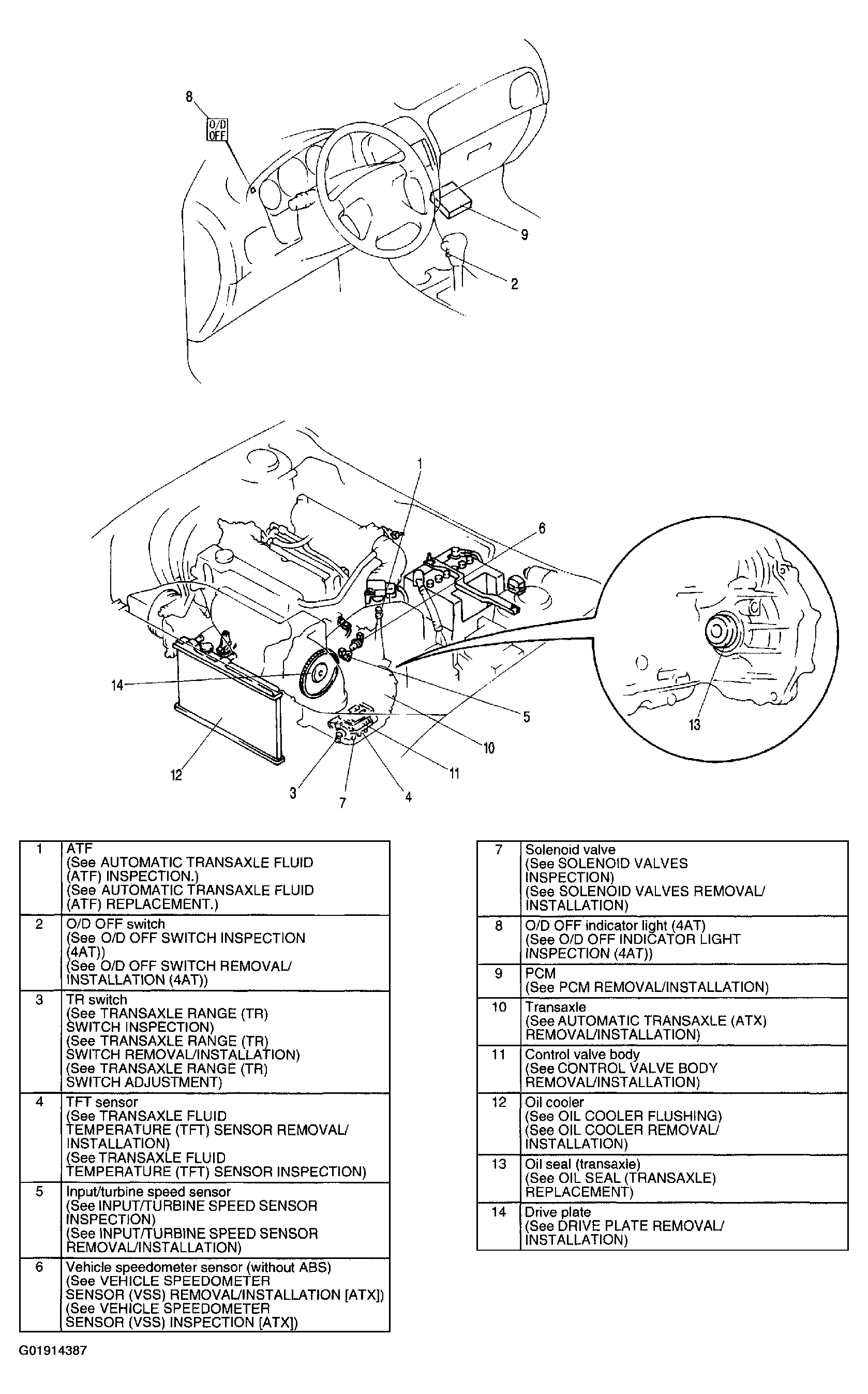

Fig 1: Identifying Automatic Transaxle Location

Courtesy of MAZDA MOTORS CORP.
