No.2 Engine Mount, Engine Mounting Member, No.4 Engine Mount Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the engine mounting rubber is installed as shown.
Install the No.2 engine mount to the transaxle.
Put the No.2 engine mount stud bolts in the installing holes when installing the engine mounting member.

Fig 1: Installing Engine Mounting Rubber
Courtesy of MAZDA MOTORS CORP.
Install the bolts and nuts A, then the nuts B as shown.
Tightening Torque

A: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}

B (ZM): 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}

B (FS): 86-116 N.m {8.7-11.9 kgf.m, 63-86 ft.lbf}

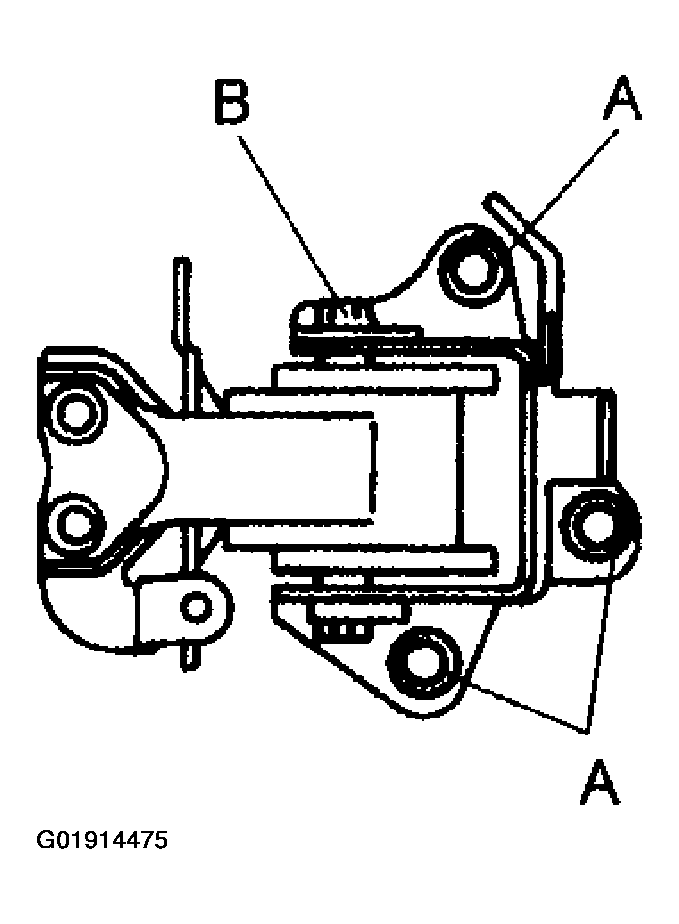

Fig 2: Installing Bolts And Nuts A, Then Nuts B
Courtesy of MAZDA MOTORS CORP.
Install the No.4 engine mount bracket by passing it through the stud bolt on the transaxle.
Match the positions of the No.4 engine mount bracket and the rubber, then temporarily tighten installation bolt A.
Tighten installation nut B, then tighten bolt A.
Tightening Torque

A, B: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}
Remove the SST (49 E017 5A0).

Fig 3: Installing Nut B, Then Tightening Bolt A
Courtesy of MAZDA MOTORS CORP.
