Lower Arm Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clinch bolt from the lower arm ball joint.
CAUTION:
- Wrap a rag around the ball joint dust seal to protect it from damage.
Fig 1: Removing Clinch Bolt From Lower Arm Ball Joint
Courtesy of MAZDA MOTORS CORP.

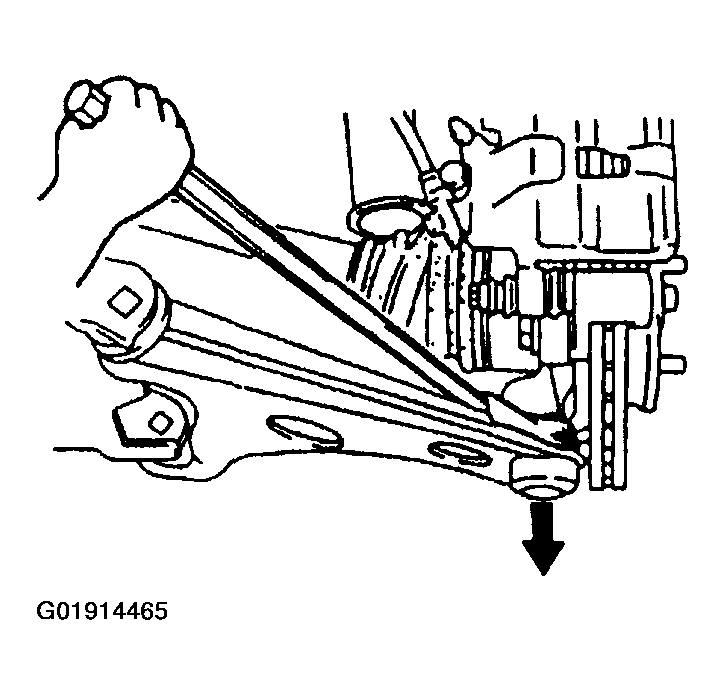

Pry the lower arm out of the knuckle.

Fig 2: Prying Lower Arm Out Of Knuckle
Courtesy of MAZDA MOTORS CORP.
