Section 314 (Automatic Transaxle - Service, Removal & Installation [FN4AEL])
>>
Automatic Transaxle (ATX) Cross-Sectional View
Automatic Transaxle (ATX) Cross-Sectional View
WARNING:
This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

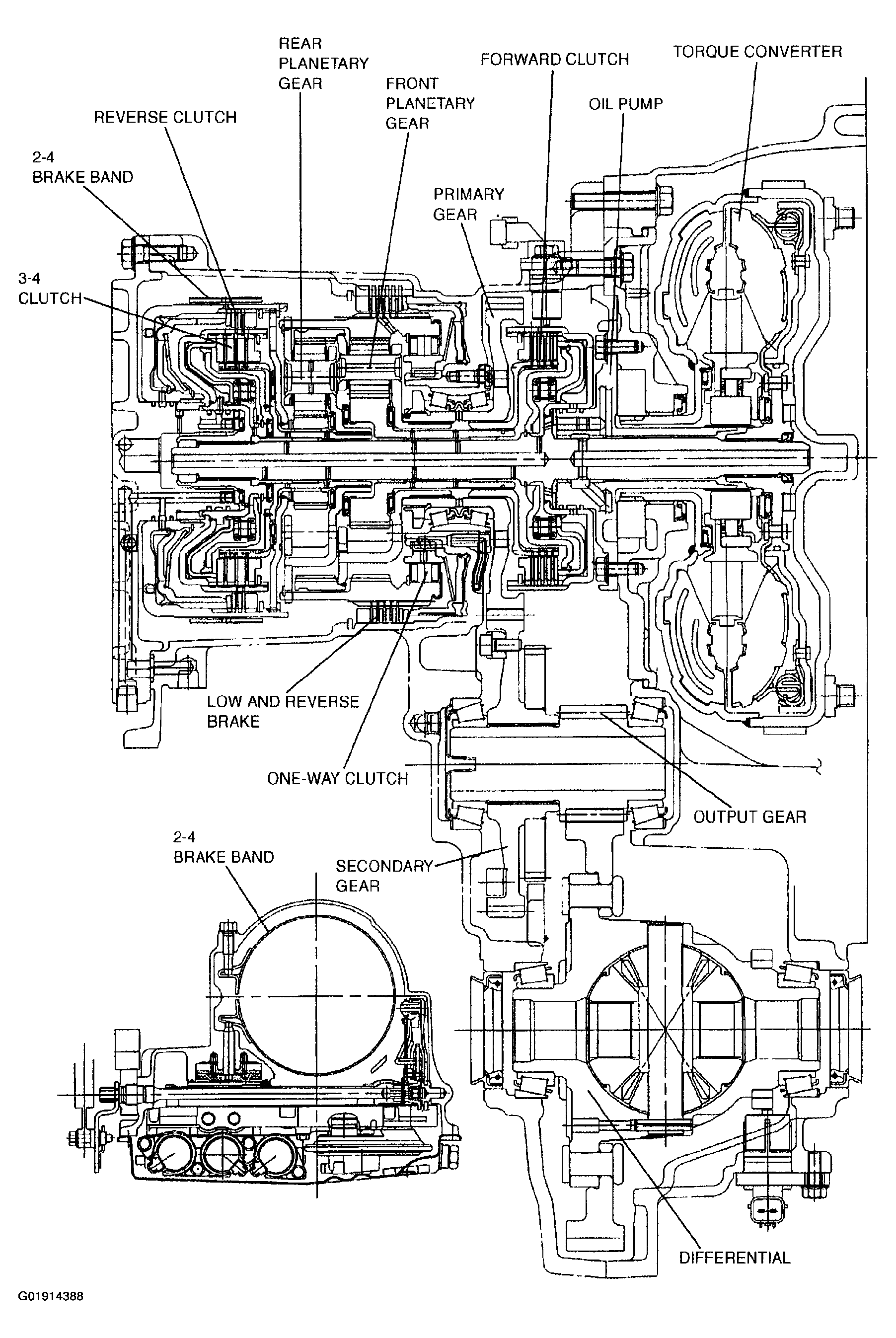

Fig 1: Automatic Transaxle (ATX) Cross-Sectional View
Courtesy of MAZDA MOTORS CORP.
