ZM & FS

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
Remove the fresh air duct.
Remove in the order indicated in the table.
Install in the reverse order of removal.

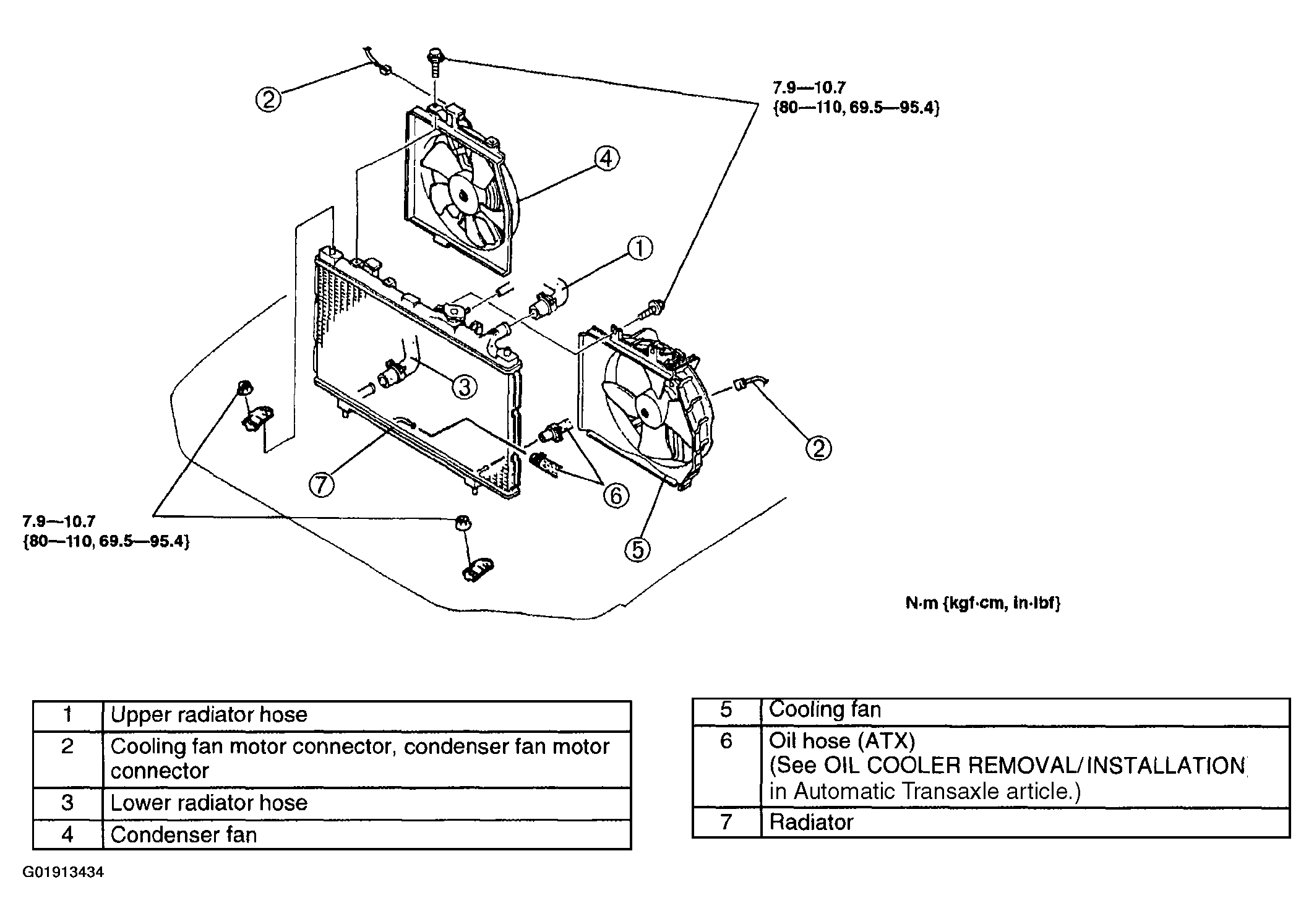

Fig 1: Removing Radiator (ZM & FS)
Courtesy of MAZDA MOTORS CORP.
