Cooling Fan Motor Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling fan. (See RADIATOR REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Fig 1: Cooling Fan Motor Removal Order Table
Courtesy of MAZDA MOTORS CORP.

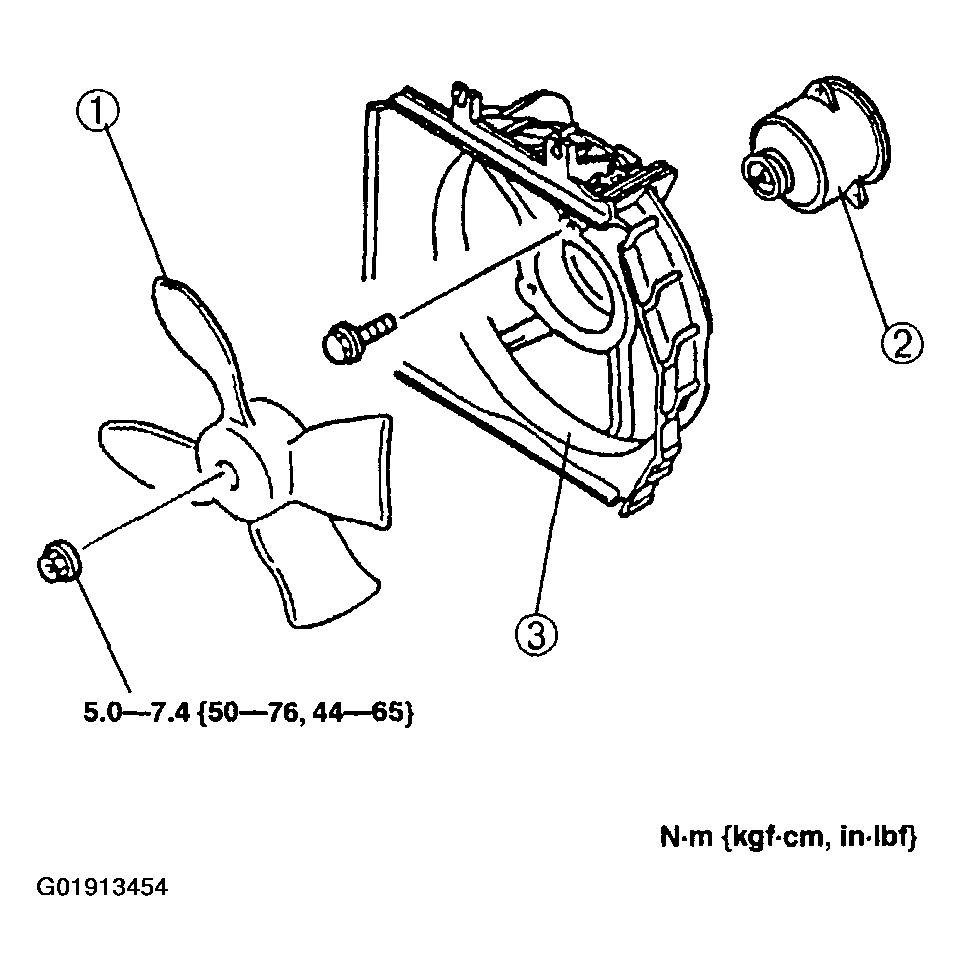

Fig 2: Removing Cooling Fan Motor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
