Instrument Cluster Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
Remove the meter hood.
Remove in the order indicated in the figure(s).

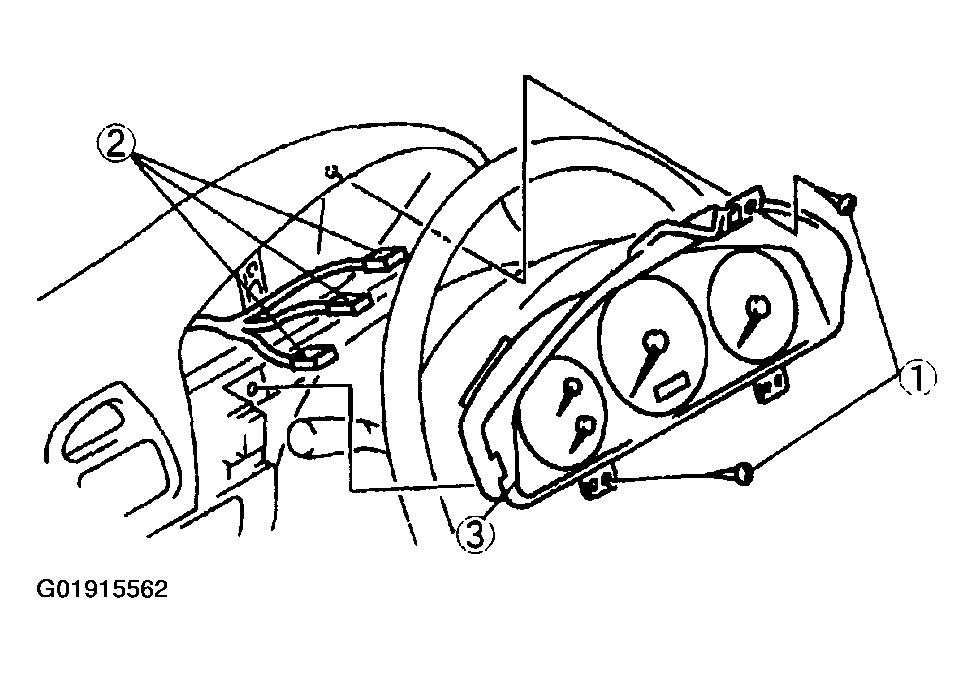

Fig 1: Removing Instrument Cluster
Courtesy of MAZDA MOTORS CORP.

Fig 2: Instrument Cluster Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
