Inspection of DTCs

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

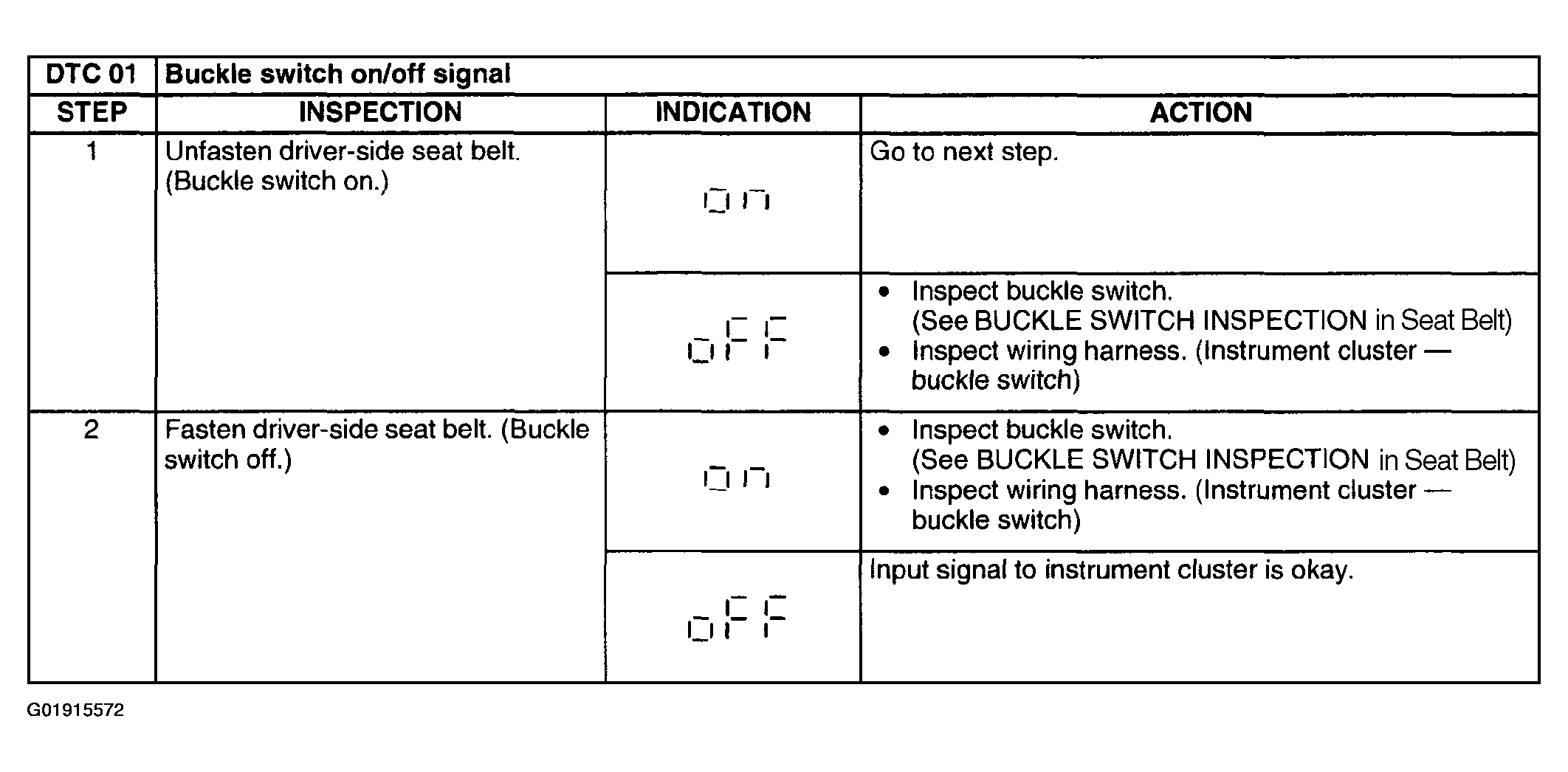

Fig 1: Inspection Procedure - DTC 01

Courtesy of MAZDA MOTORS CORP.

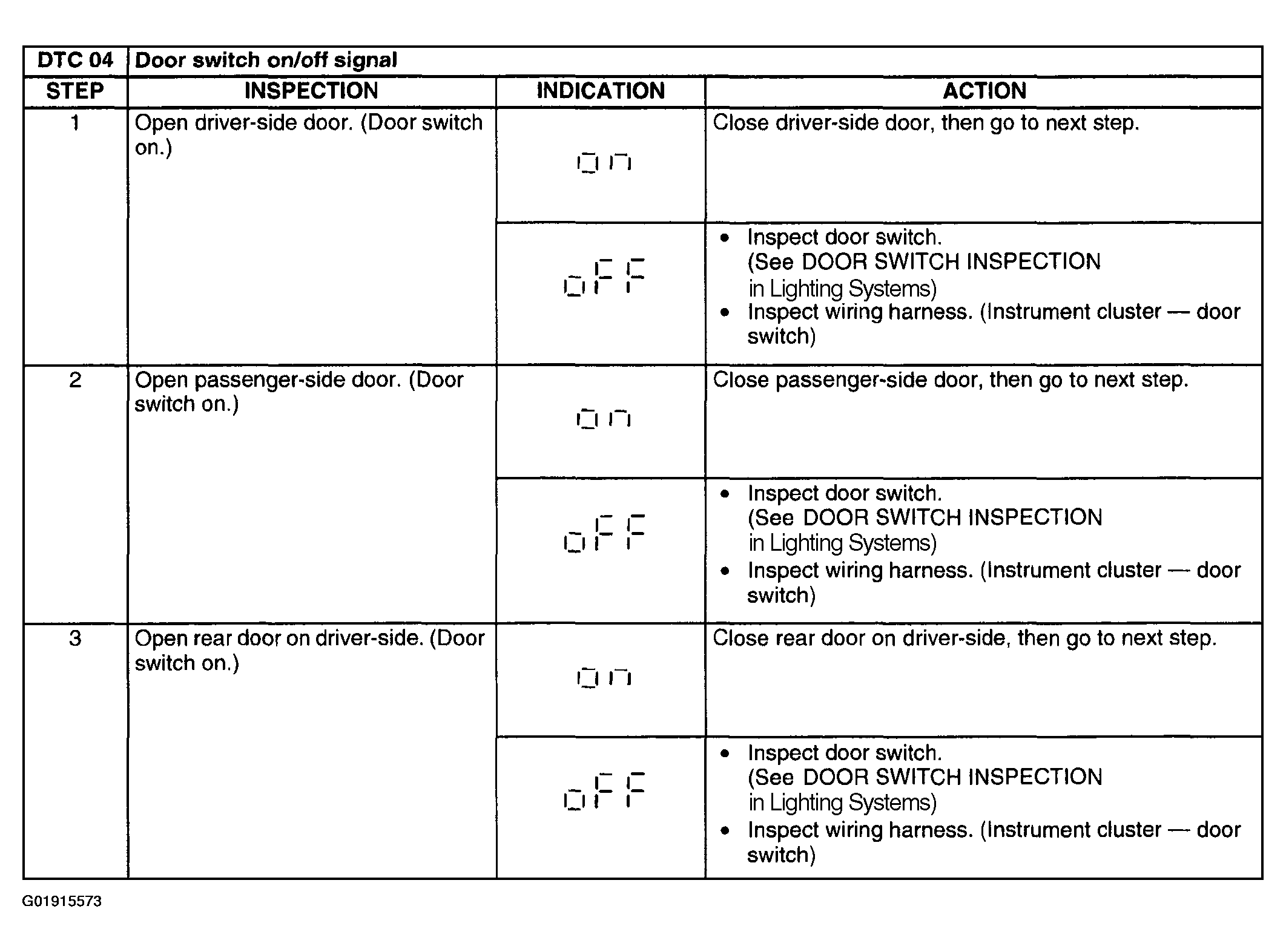

Fig 2: Inspection Procedure - DTC 04 (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

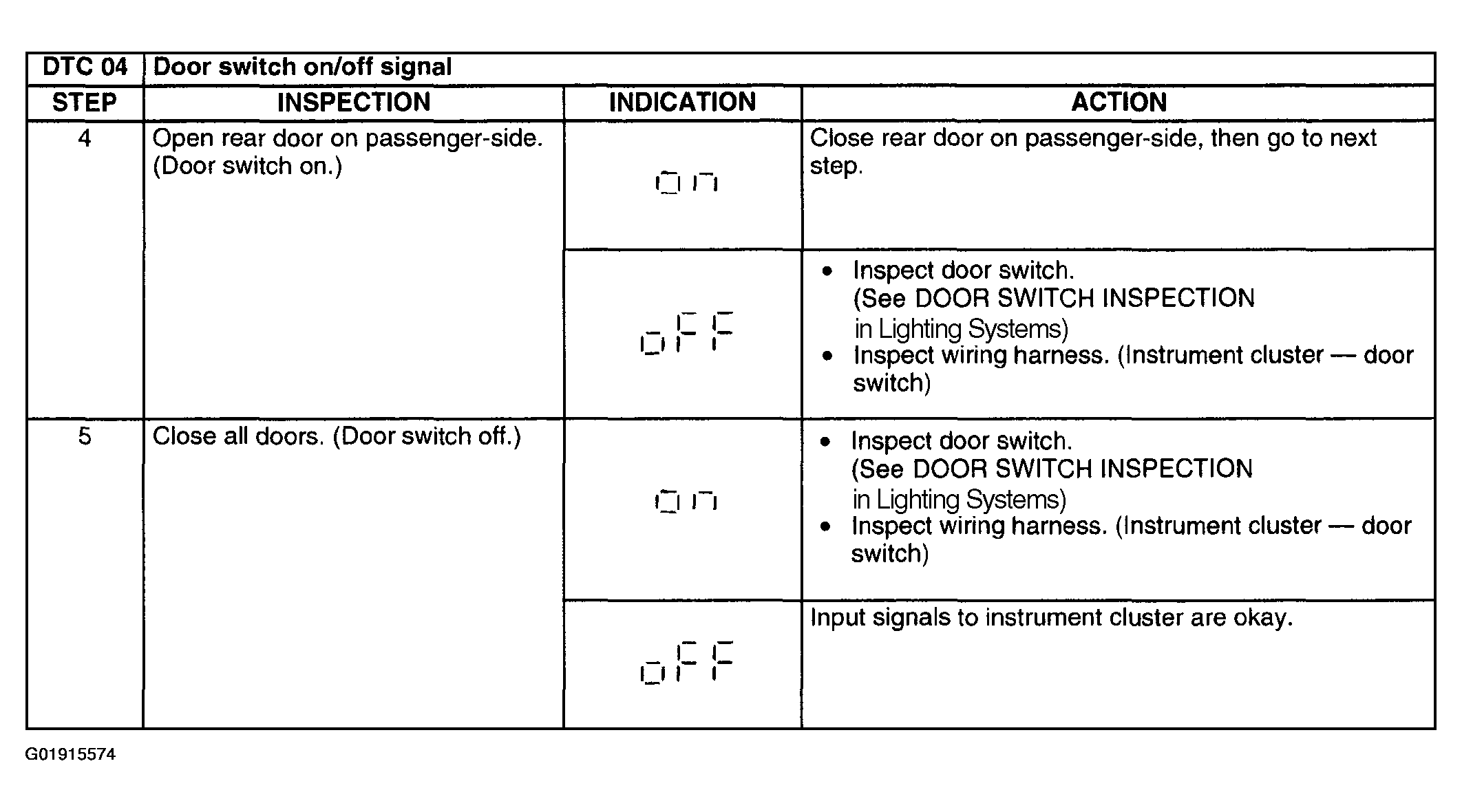

Fig 3: Inspection Procedure - DTC 04 (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

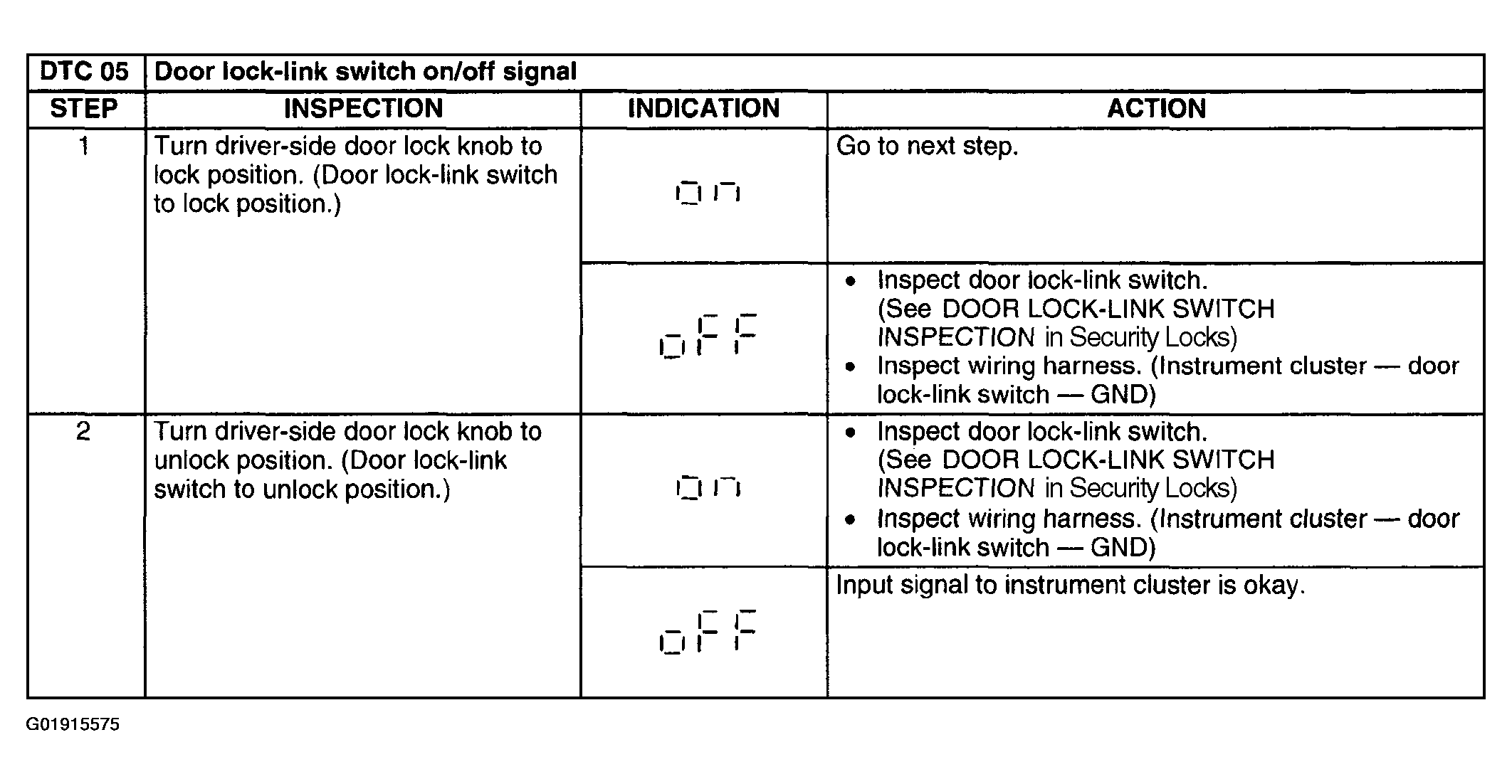

Fig 4: Inspection Procedure - DTC 05

Courtesy of MAZDA MOTORS CORP.

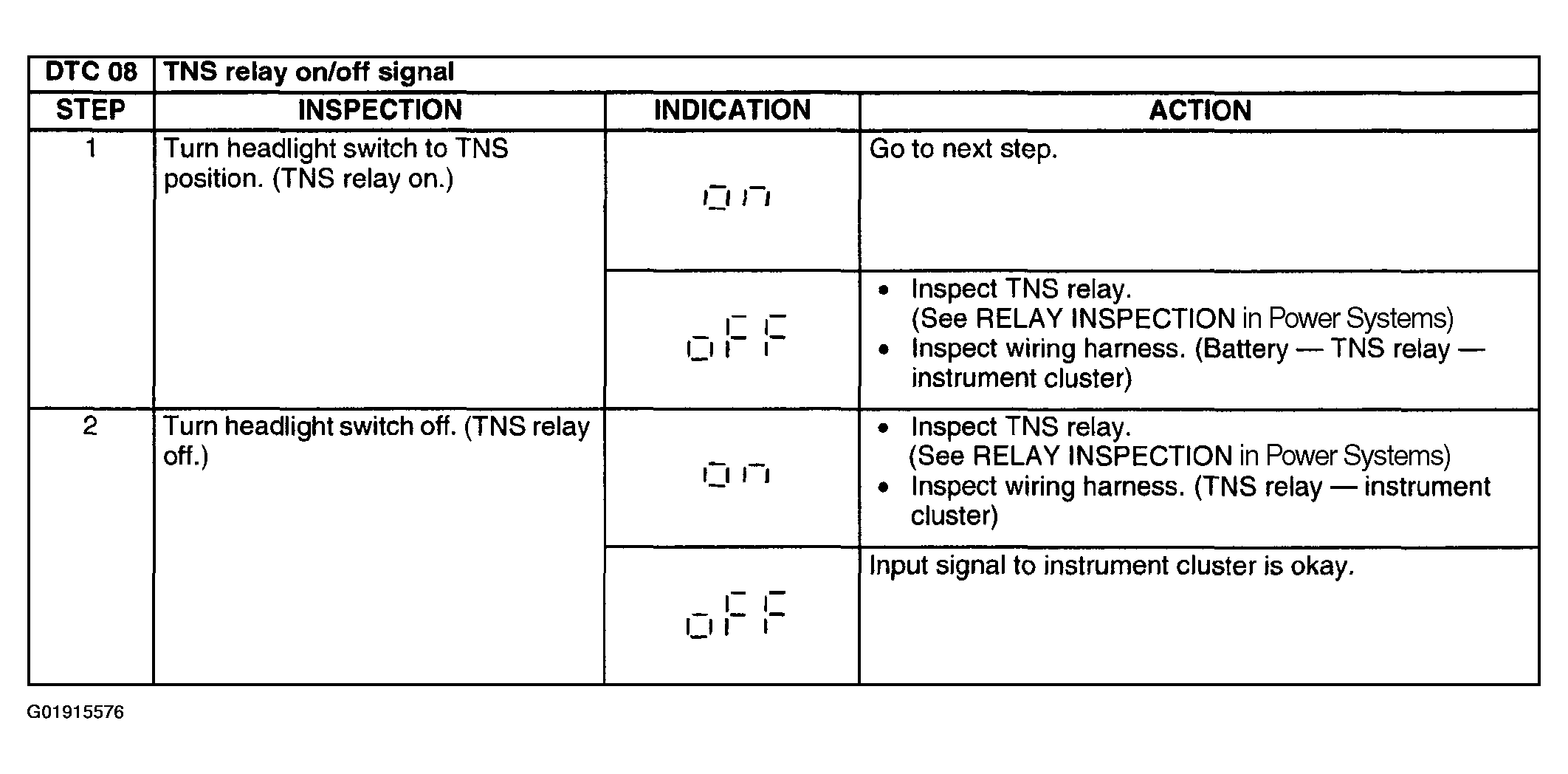

Fig 5: Inspection Procedure - DTC 08

Courtesy of MAZDA MOTORS CORP.

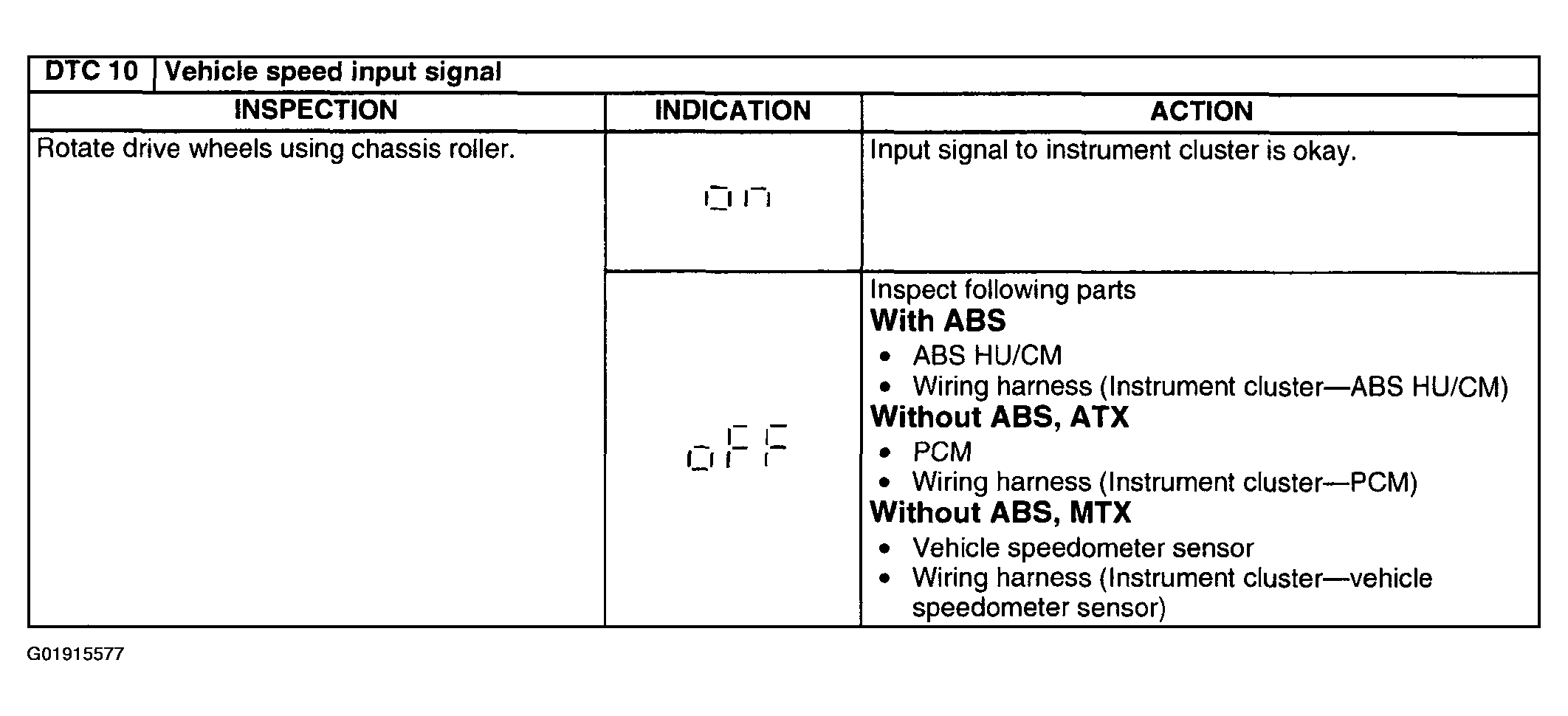

Fig 6: Inspection Procedure - DTC 10

Courtesy of MAZDA MOTORS CORP.

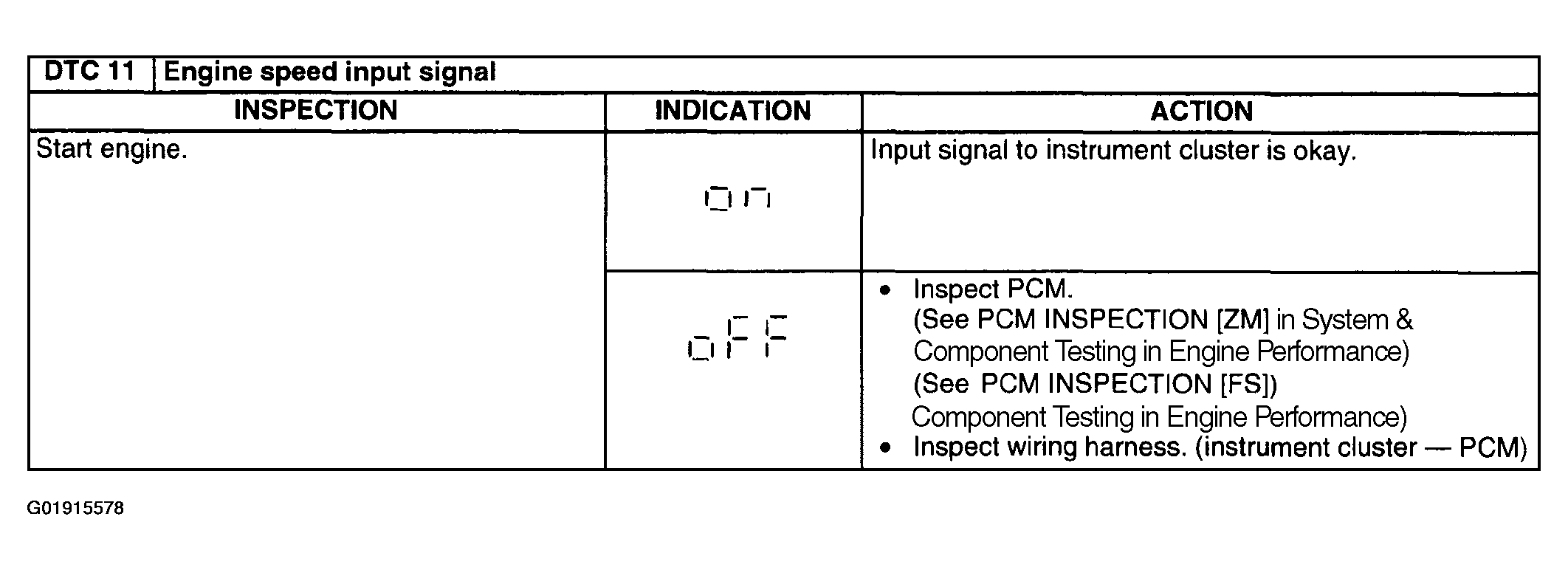

Fig 7: Inspection Procedure - DTC 11

Courtesy of MAZDA MOTORS CORP.

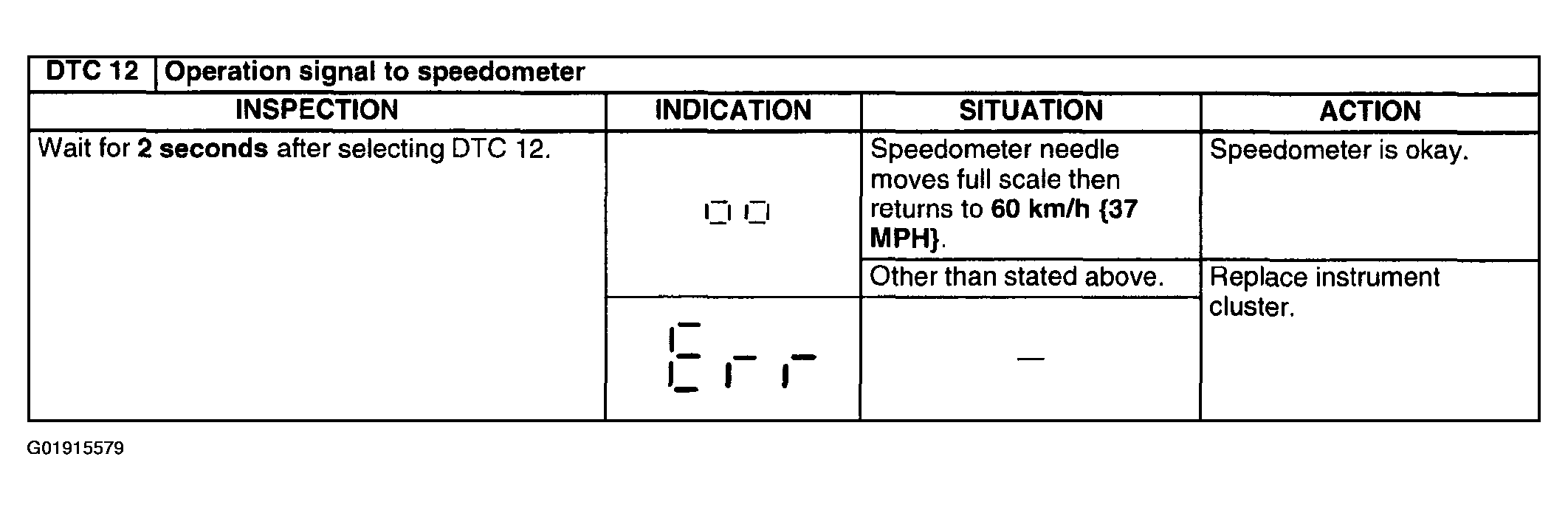

Fig 8: Inspection Procedure - DTC 12

Courtesy of MAZDA MOTORS CORP.

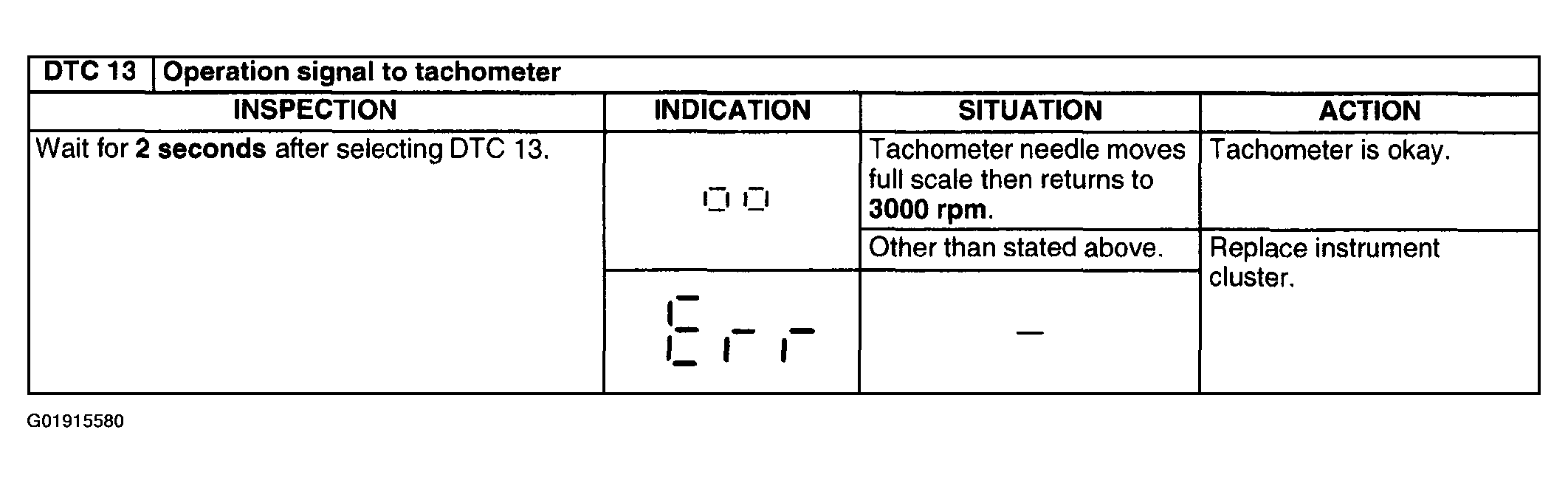

Fig 9: Inspection Procedure - DTC 13

Courtesy of MAZDA MOTORS CORP.

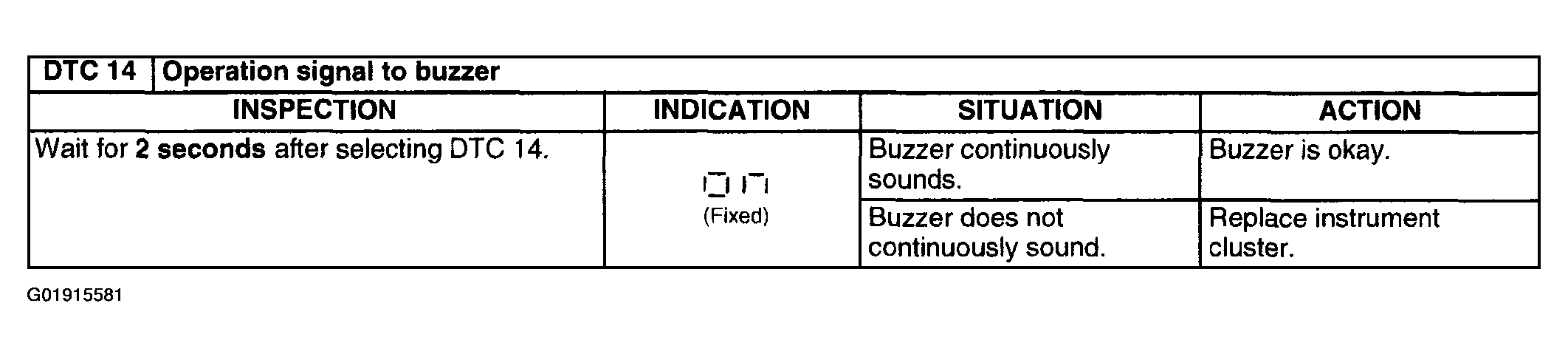

Fig 10: Inspection Procedure - DTC 14

Courtesy of MAZDA MOTORS CORP.

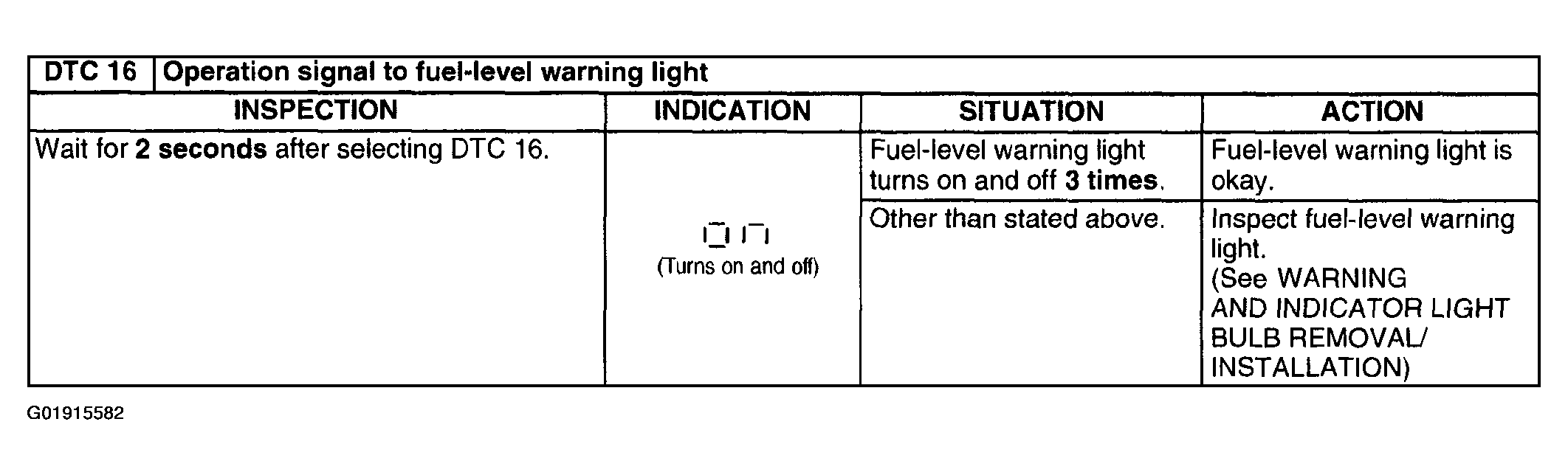

Fig 11: Inspection Procedure - DTC 16

Courtesy of MAZDA MOTORS CORP.

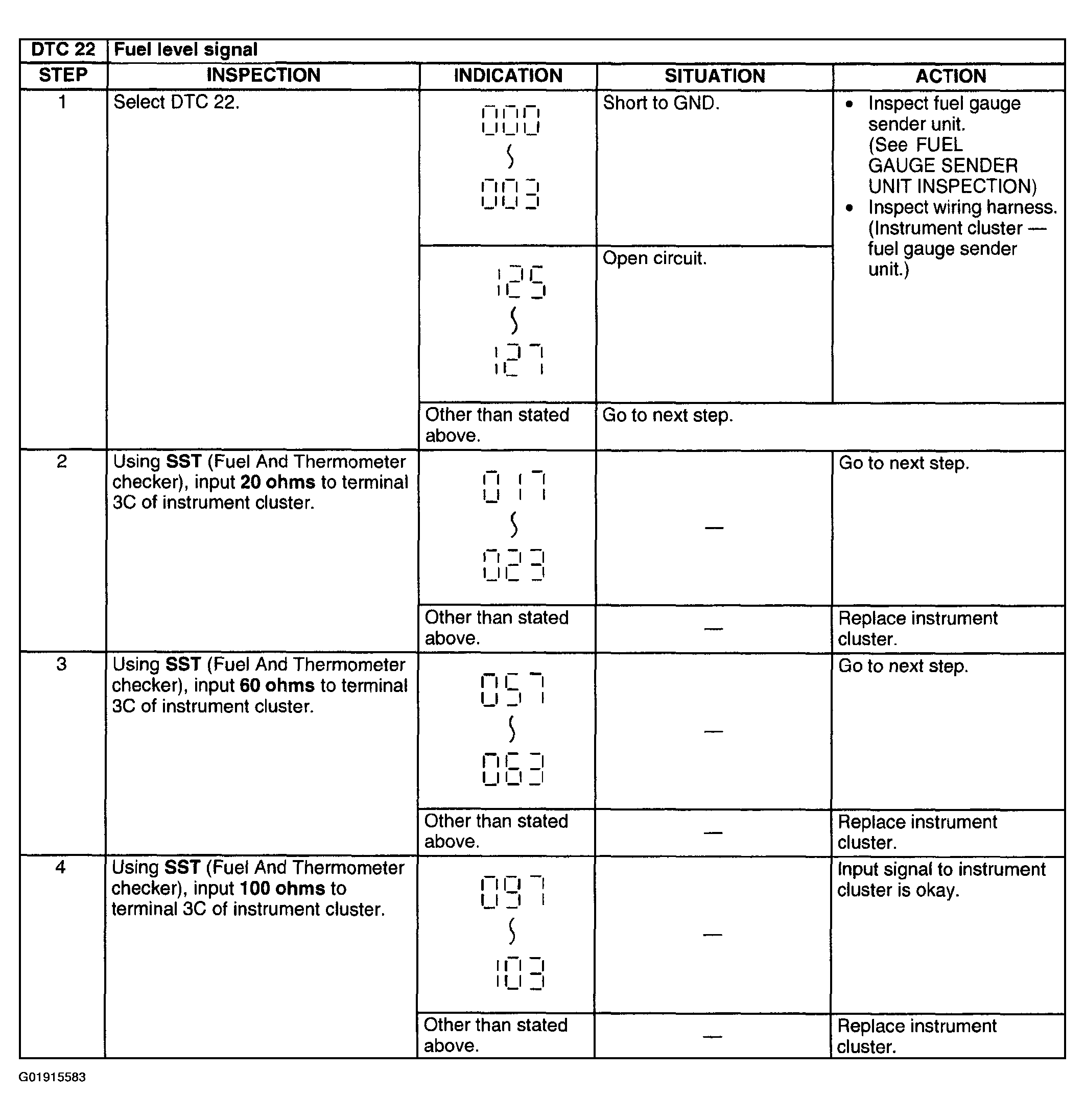

Fig 12: Inspection Procedure - DTC 22

Courtesy of MAZDA MOTORS CORP.

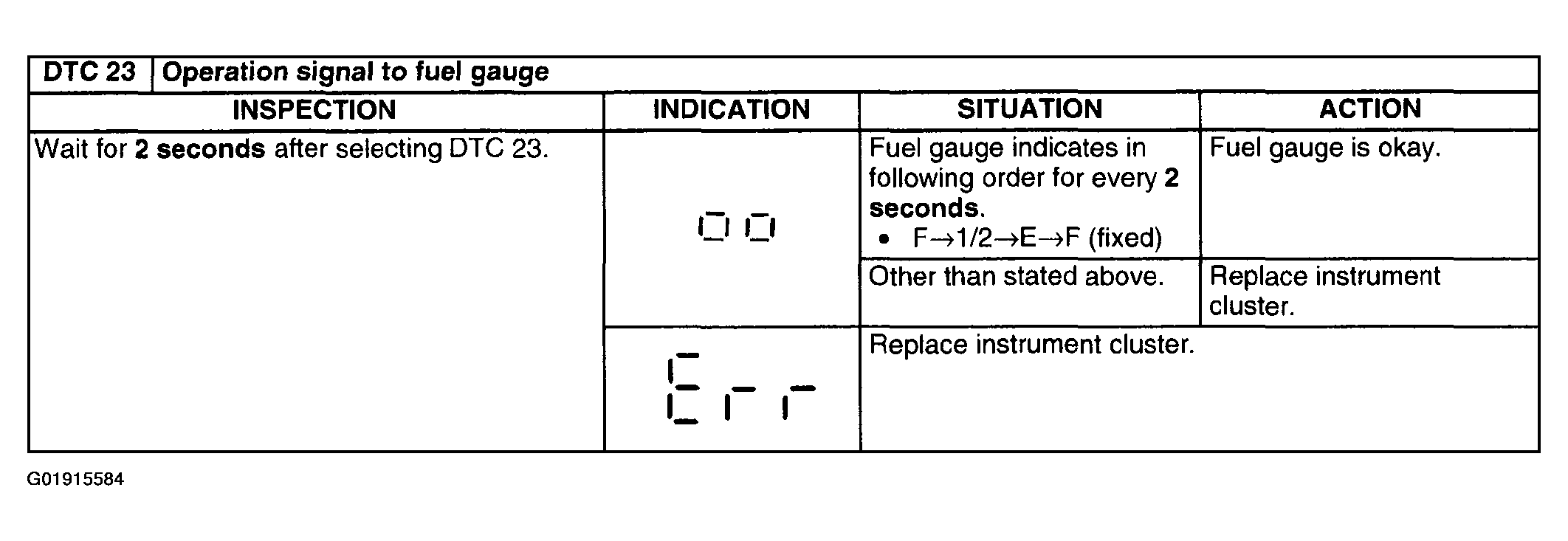

Fig 13: Inspection Procedure - DTC 23

Courtesy of MAZDA MOTORS CORP.

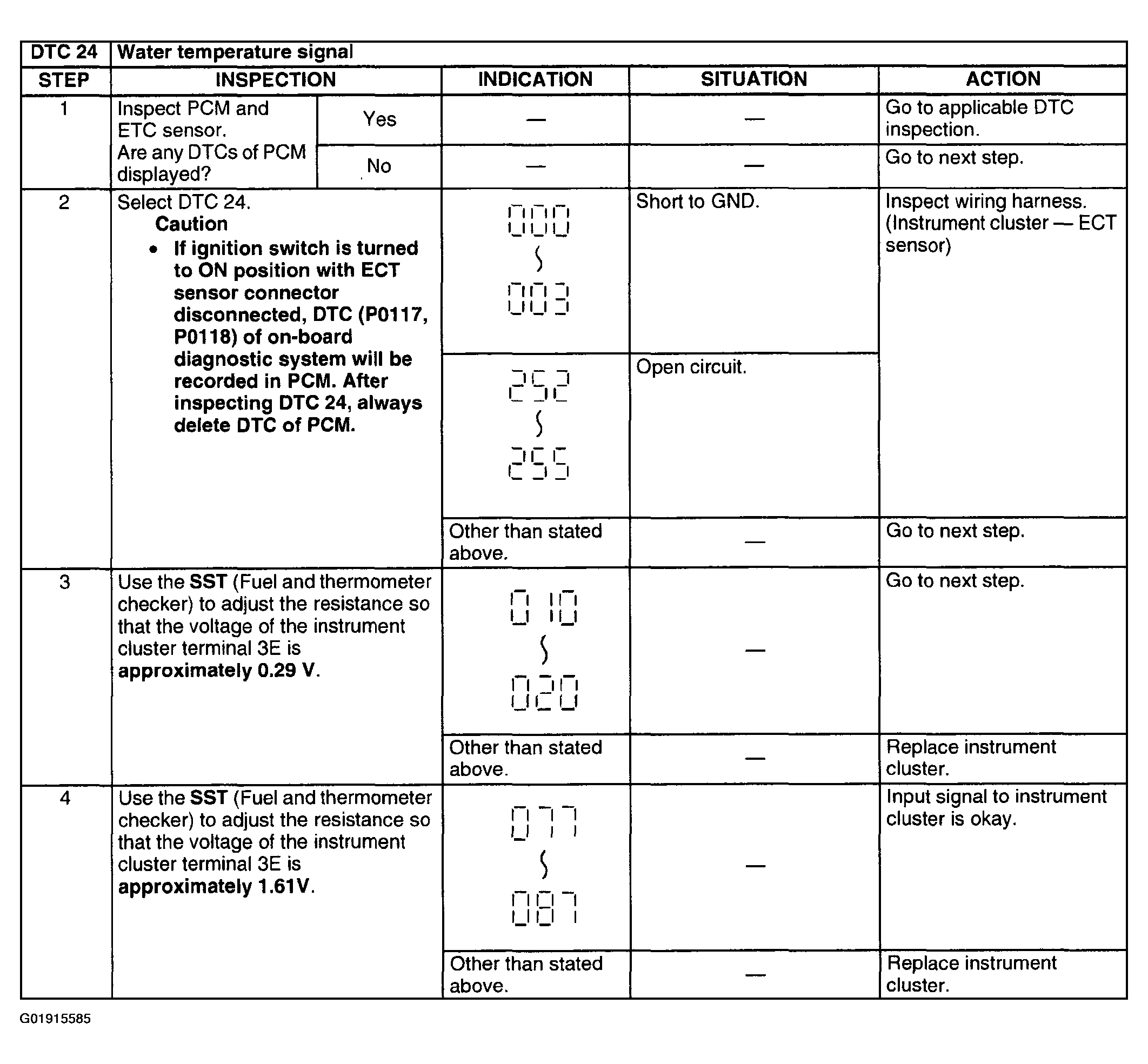

Fig 14: Inspection Procedure - DTC 24

Courtesy of MAZDA MOTORS CORP.

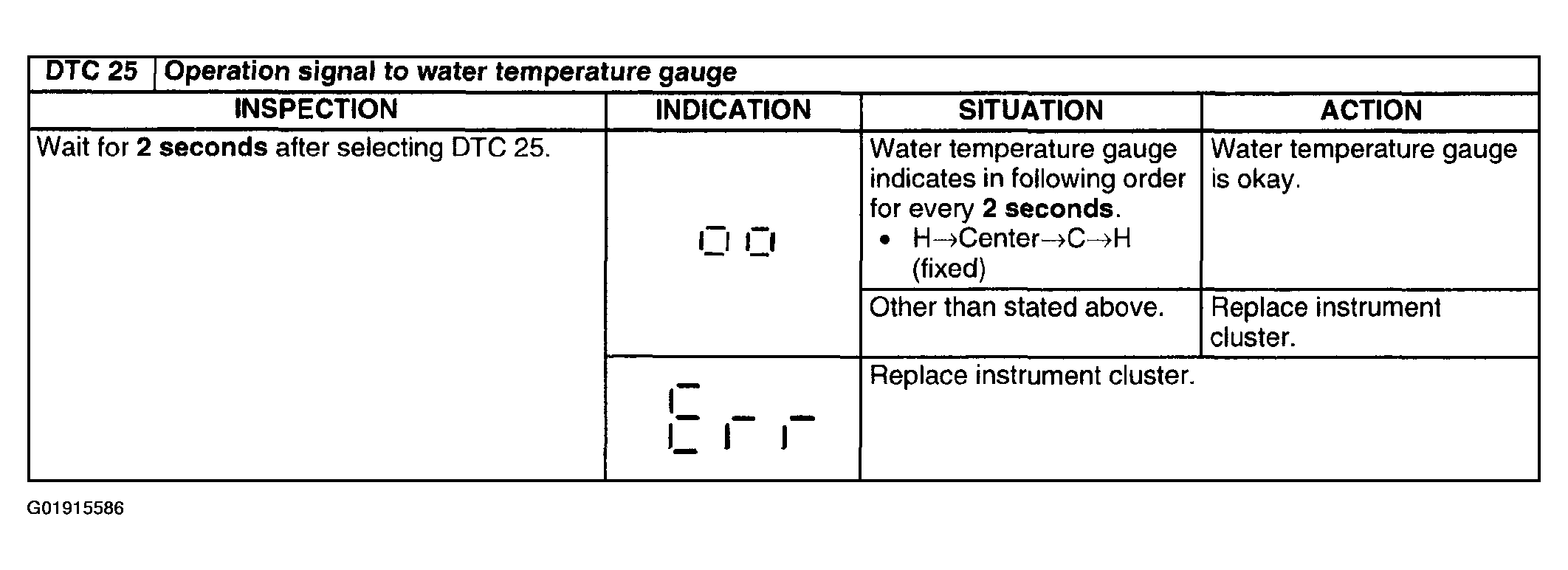

Fig 15: Inspection Procedure - DTC 25

Courtesy of MAZDA MOTORS CORP.

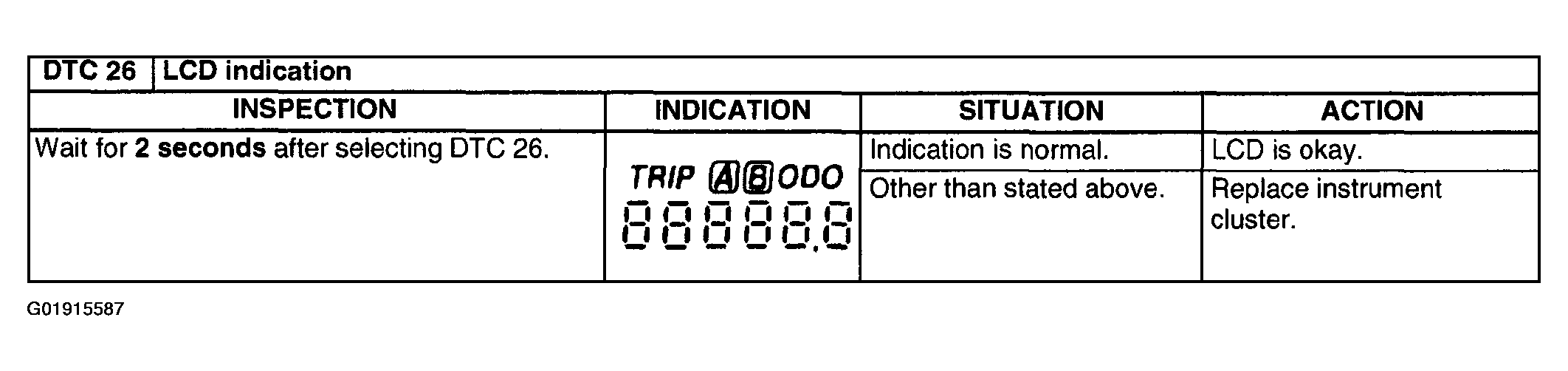

Fig 16: Inspection Procedure - DTC 26

Courtesy of MAZDA MOTORS CORP.

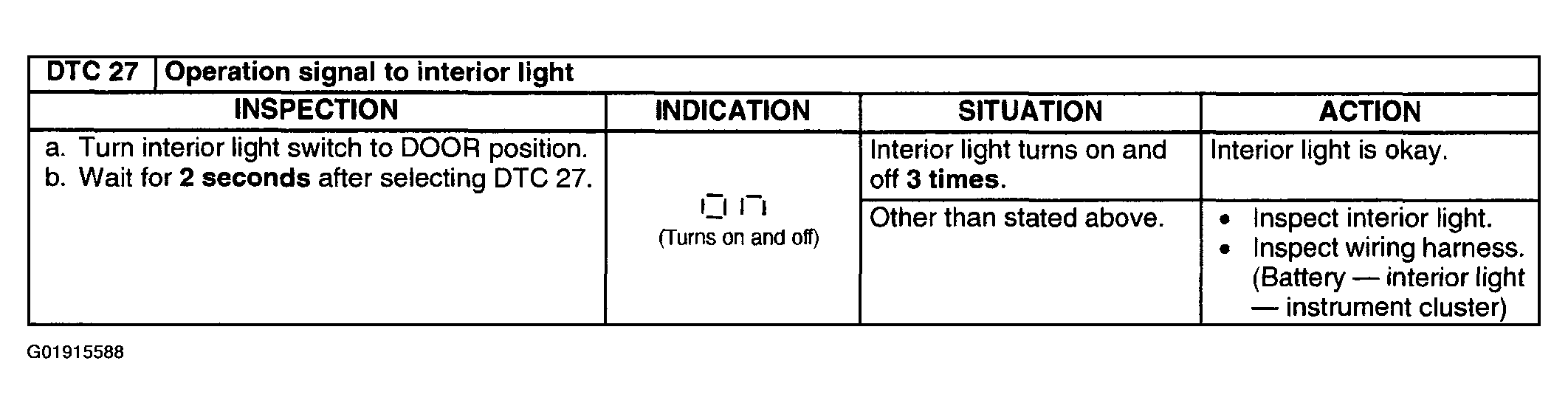

Fig 17: Inspection Procedure - DTC 27

Courtesy of MAZDA MOTORS CORP.

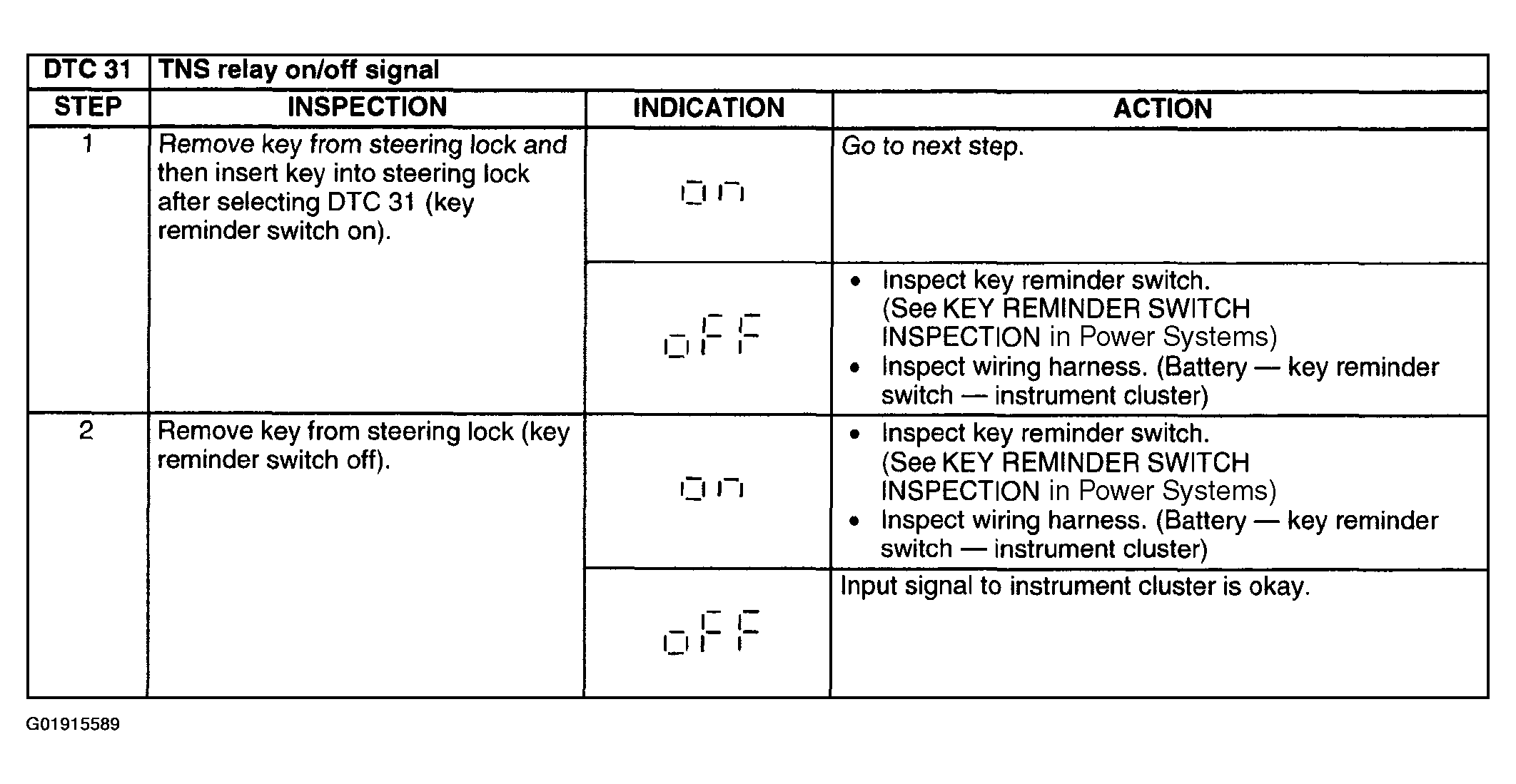

Fig 18: Inspection Procedure - DTC 31

Courtesy of MAZDA MOTORS CORP.
