Instrument Cluster Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the instrument cluster is dropped or the print plate is damaged, the system will not operate properly and it may become the cause of trouble or malfunctions.

Disassemble in the order indicated in the figure(s).

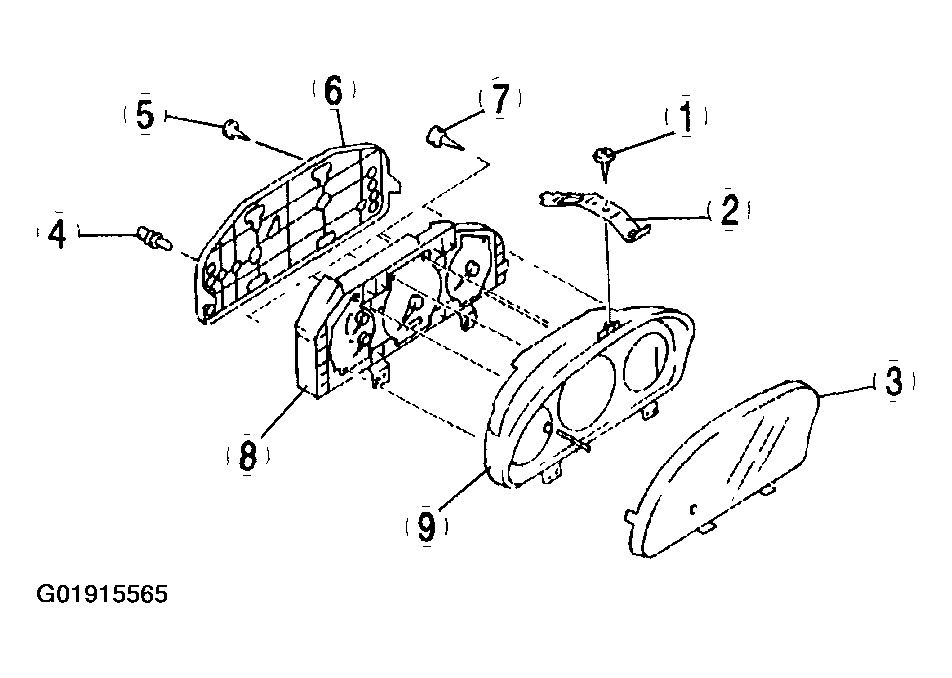

Fig 1: Disassembling Instrument Cluster
Courtesy of MAZDA MOTORS CORP.

Fig 2: Instrument Cluster Disassembly Sequence
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
