Front Antenna Feeder Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the audio unit. (See AUDIO UNIT REMOVAL .) (See AUDIO UNIT INSTALLATION .)
Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
Disconnect the connection between the pillar antenna and the front antenna feeder.
Remove in the order indicated in the figure.

Fig 1: Front Antenna Feeder Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.

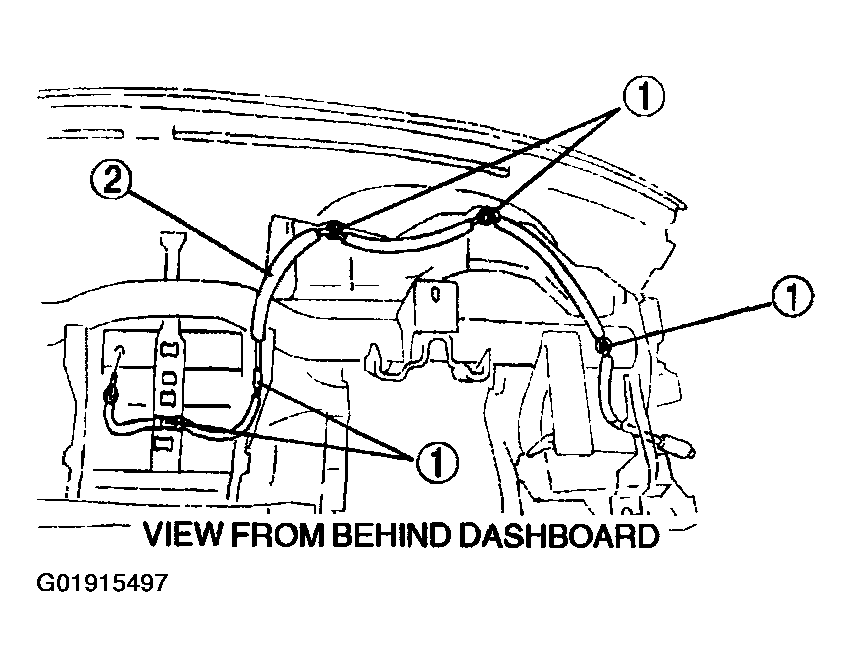

Fig 2: Removing Front Antenna Feeder
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
