Windshield Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bonnet insulator.
Partially peel off the right side mud guard.
Remove in the order indicated in the table.

Fig 1: Windshield Washer Hose Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.

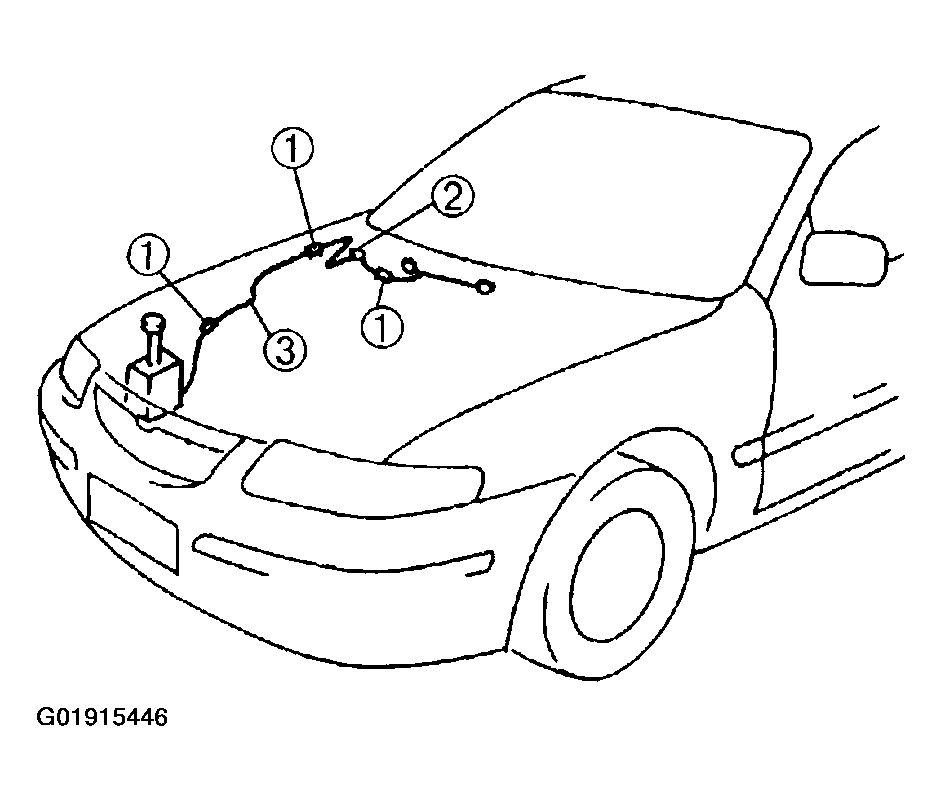

Fig 2: Removing Sequence Of Windshield Washer Hose
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
