Rear Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a needle or equivalent tool into the spray hole of the rear washer nozzle and adjust the nozzle direction as shown.

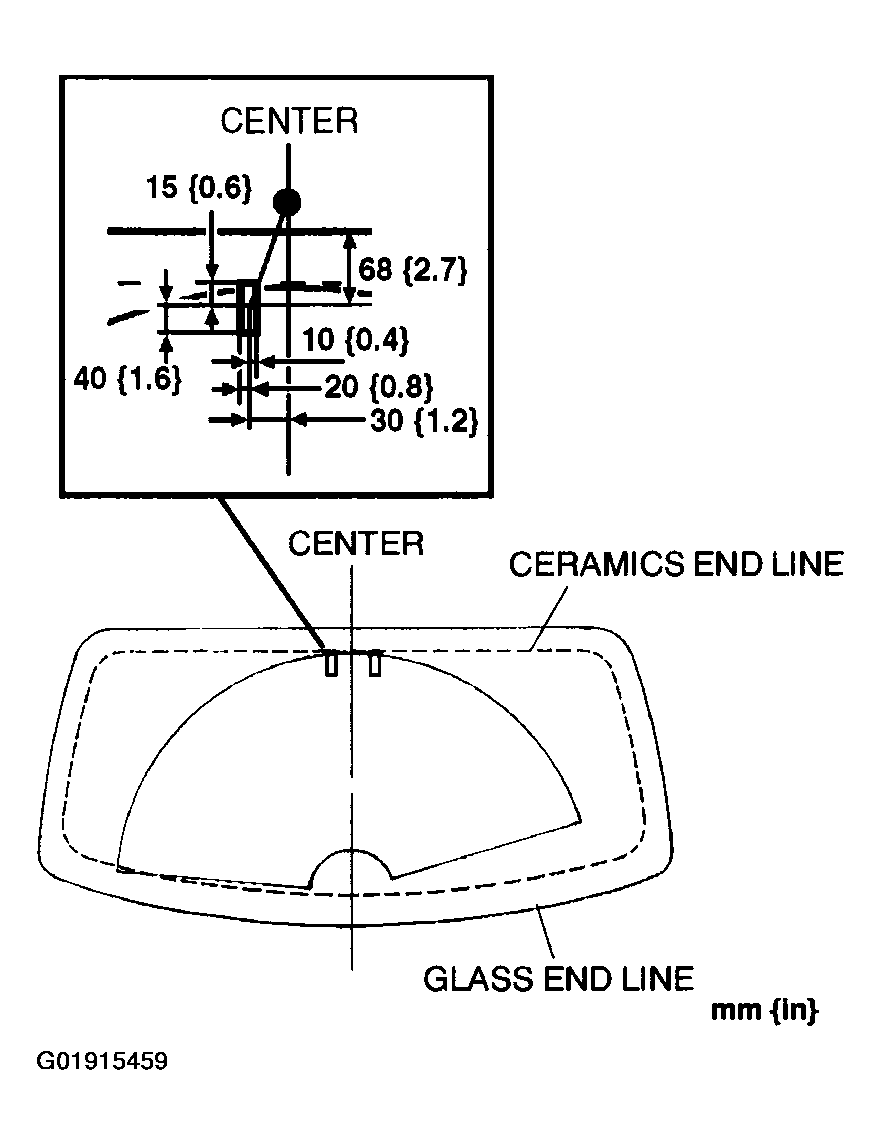

    Fig 1: Adjusting Rear Washer Nozzle
    G01915459Courtesy of MAZDA MOTORS CORP.
