Section 307 (Washer System & Wiper System)
>>
Location Index
>>
Windshield Wiper and Washer System
Windshield Wiper and Washer System
WARNING:
This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

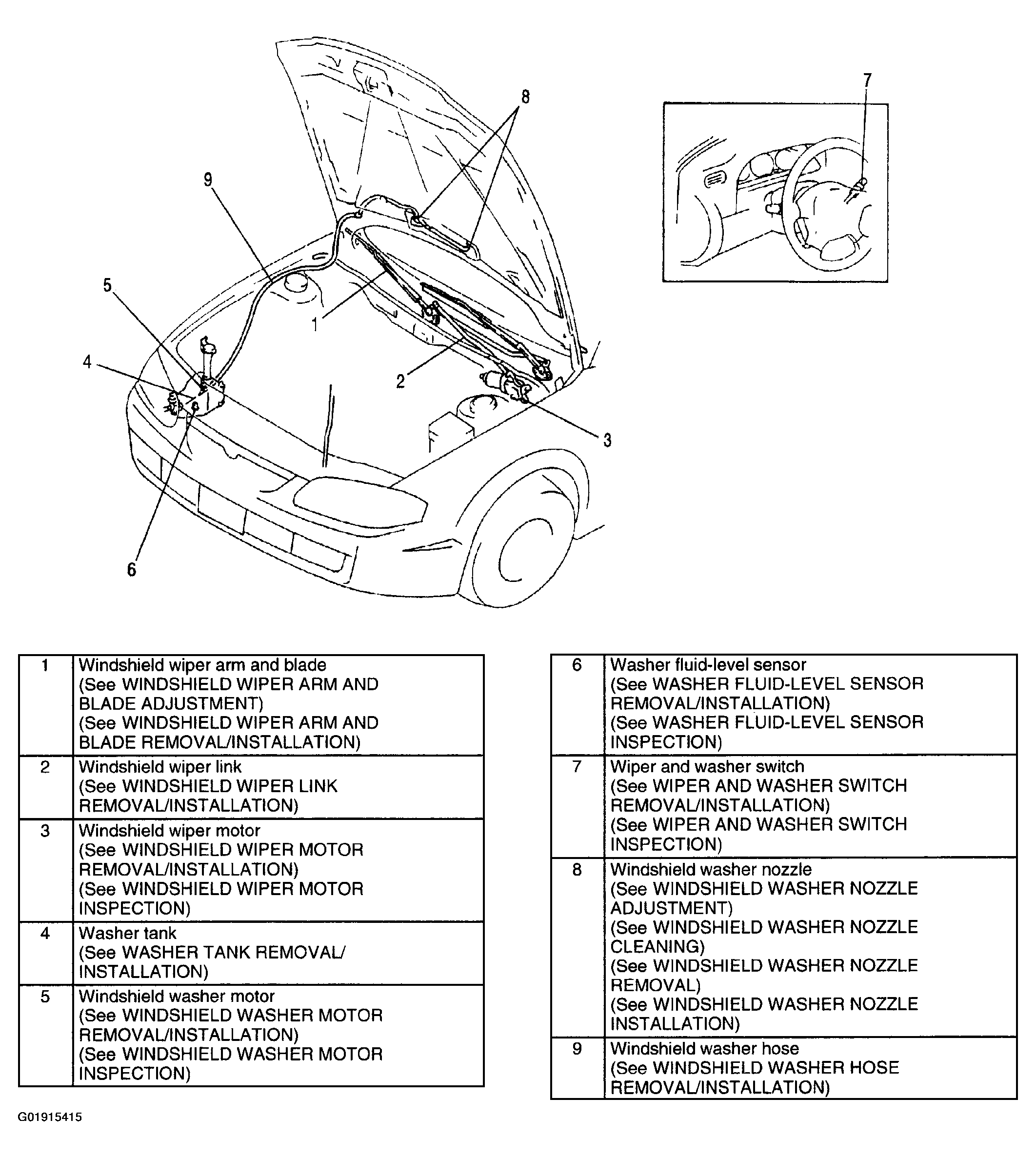

Fig 1: Windshield Wiper And Washer System Components Location Index
Courtesy of MAZDA MOTORS CORP.
