Rear Wiper and Washer System

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

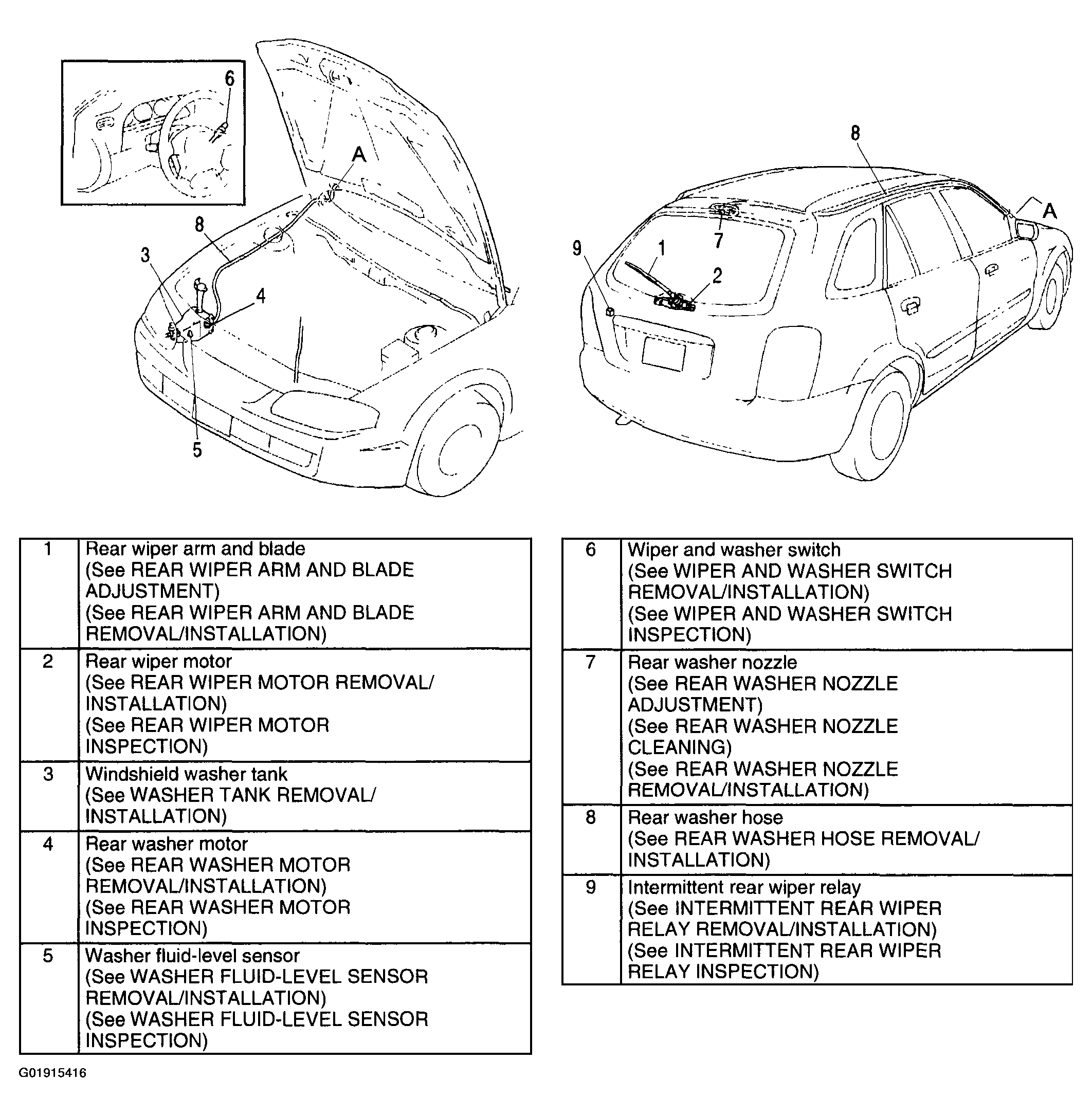

Fig 1: Rear Wiper And Washer System Components Location Index
G01915416Courtesy of MAZDA MOTORS CORP.
