Intermittent Rear Wiper Relay Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the left side trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Intermittent Rear Wiper Relay Removing Sequence Index
    G01915462Courtesy of MAZDA MOTORS CORP.

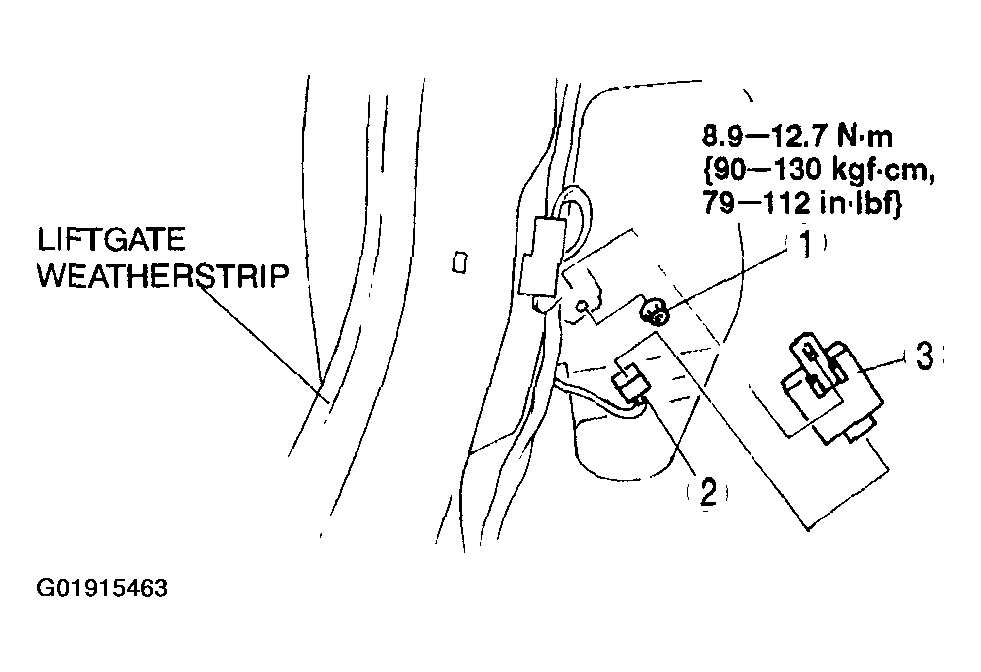

    Fig 2: Removing Sequence Of Intermittent Rear Wiper Relay
    G01915463Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
