Ignition Key Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove the ignition key illumination bulb.

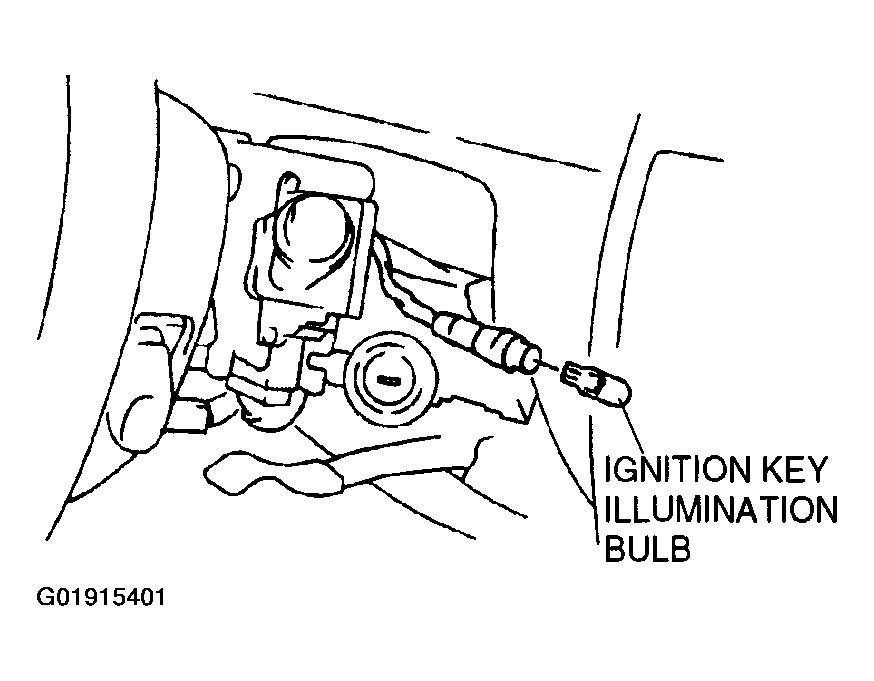

    Fig 1: Removing Ignition Key Illumination Bulb
    G01915401Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
