Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the hazard warning switch terminals using an ohmmeter.
- If not as specified, replace the hazard warning switch.
Fig 1: Hazard Warning Switch Terminals Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

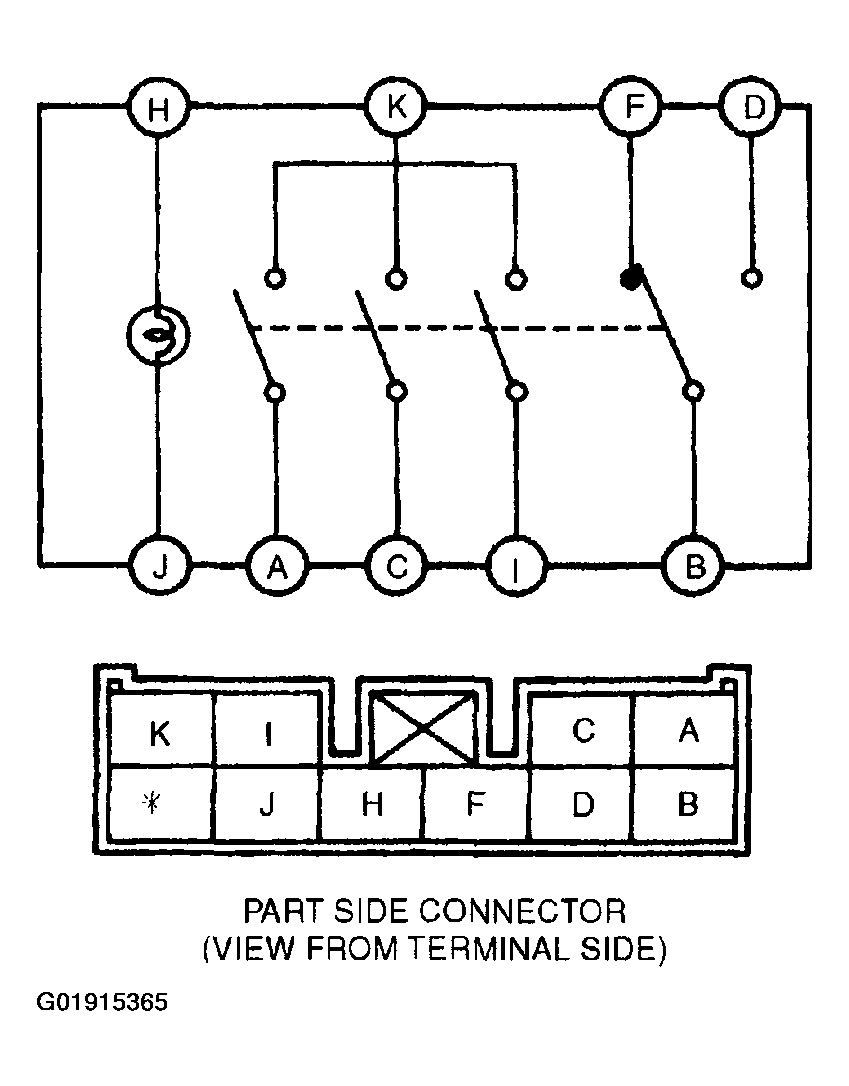

Fig 2: Identifying Hazard Warning Switch Circuits & Connector View
Courtesy of MAZDA MOTORS CORP.
