Trunk Side Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear package trim.
  2. Pull the trunk side upper trim upward, then disengage clips A and B from the body.
  3. Lift up the rear seat cushion.
  4. Remove the rear seat belt lower anchor installation bolts.

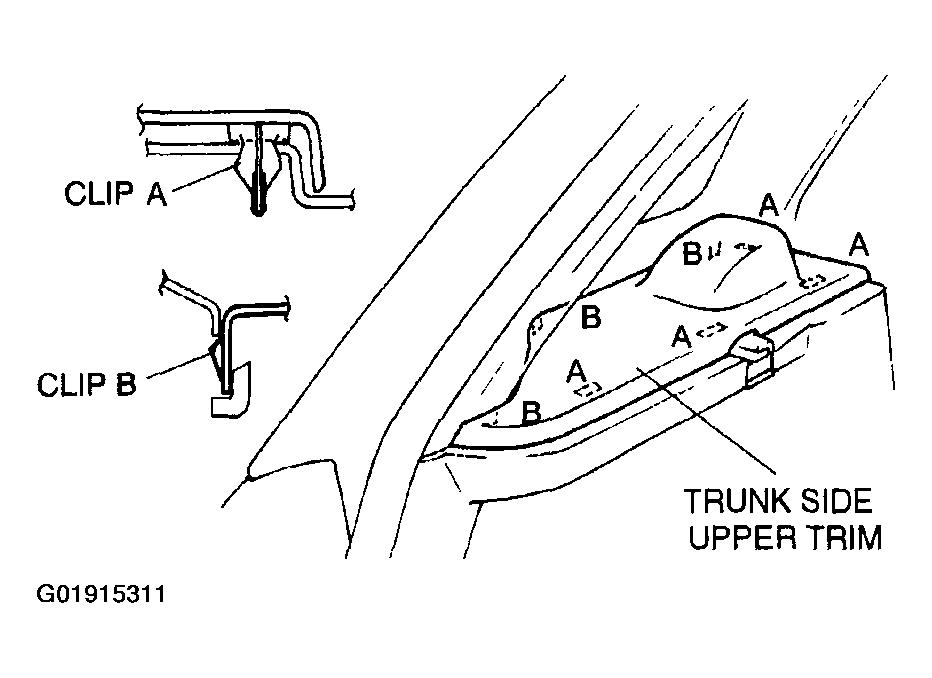

    Fig 1: Removing Trunk Side Upper Trim
    G01915311Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
