Trunk Side Trim Removal/Installation: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk end trim.
Turn over the weatherstrip.
Remove the trunk side upper trim.
Remove the tire house trim.
Remove the fasteners.
Remove the trunk side trim, then disengage clips A.
Disconnect the cargo compartment light connector. (LH only)

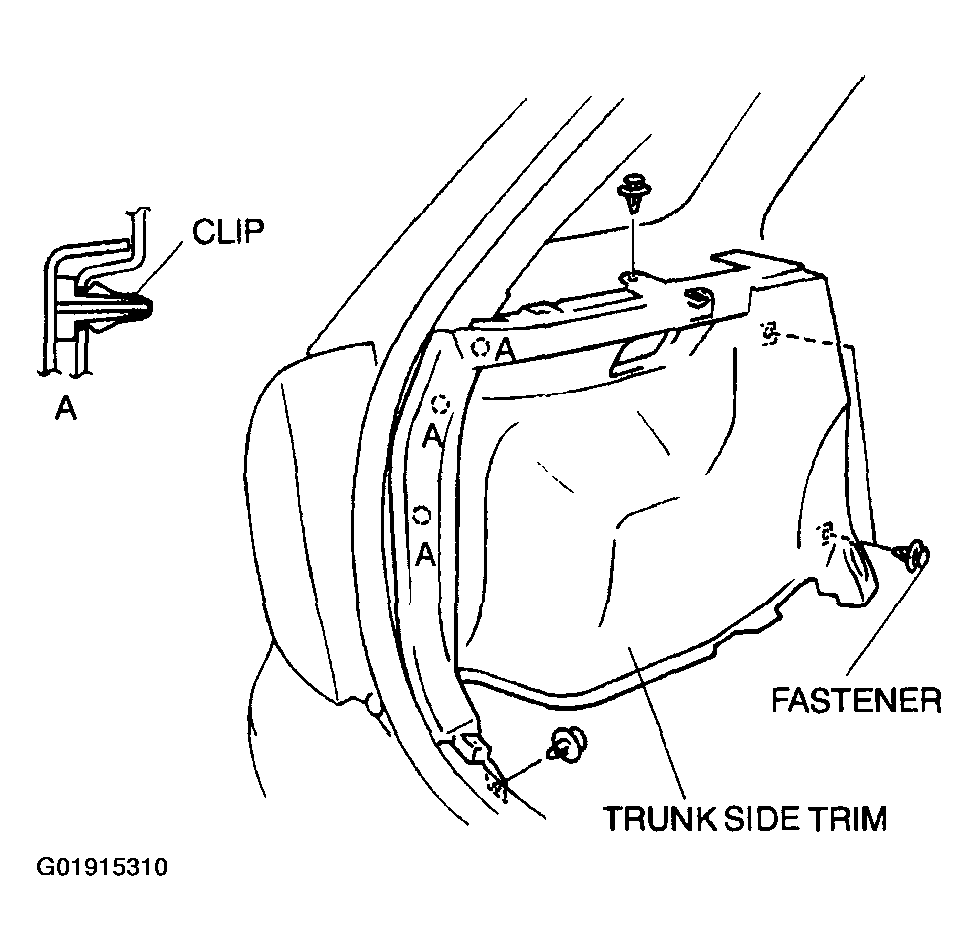

Fig 1: Removing Trunk Side Trim (5HB)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
