Trunk Side Trim Removal/Installation: 4SD

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk mat.
Remove the trunk end trim.
Remove the tire house trim.
Remove the fasteners, then remove the belt.
Pull the trunk side trim outward, then remove it.

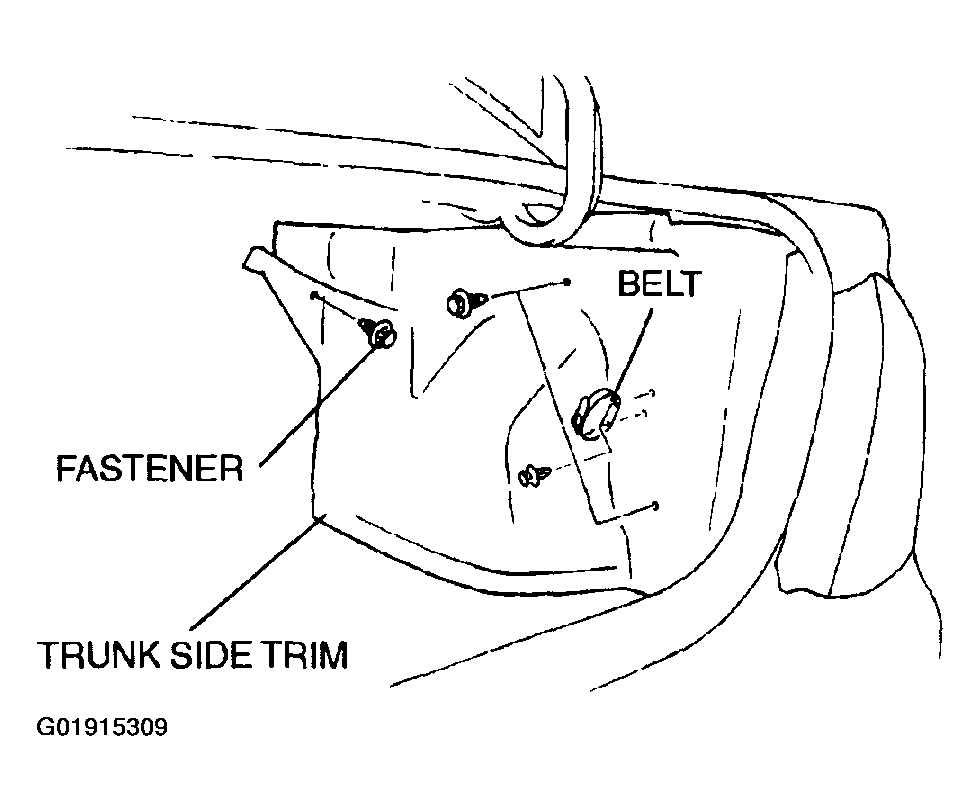

Fig 1: Removing Trunk Side Trim (4SD)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
