Trunk End Trim Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

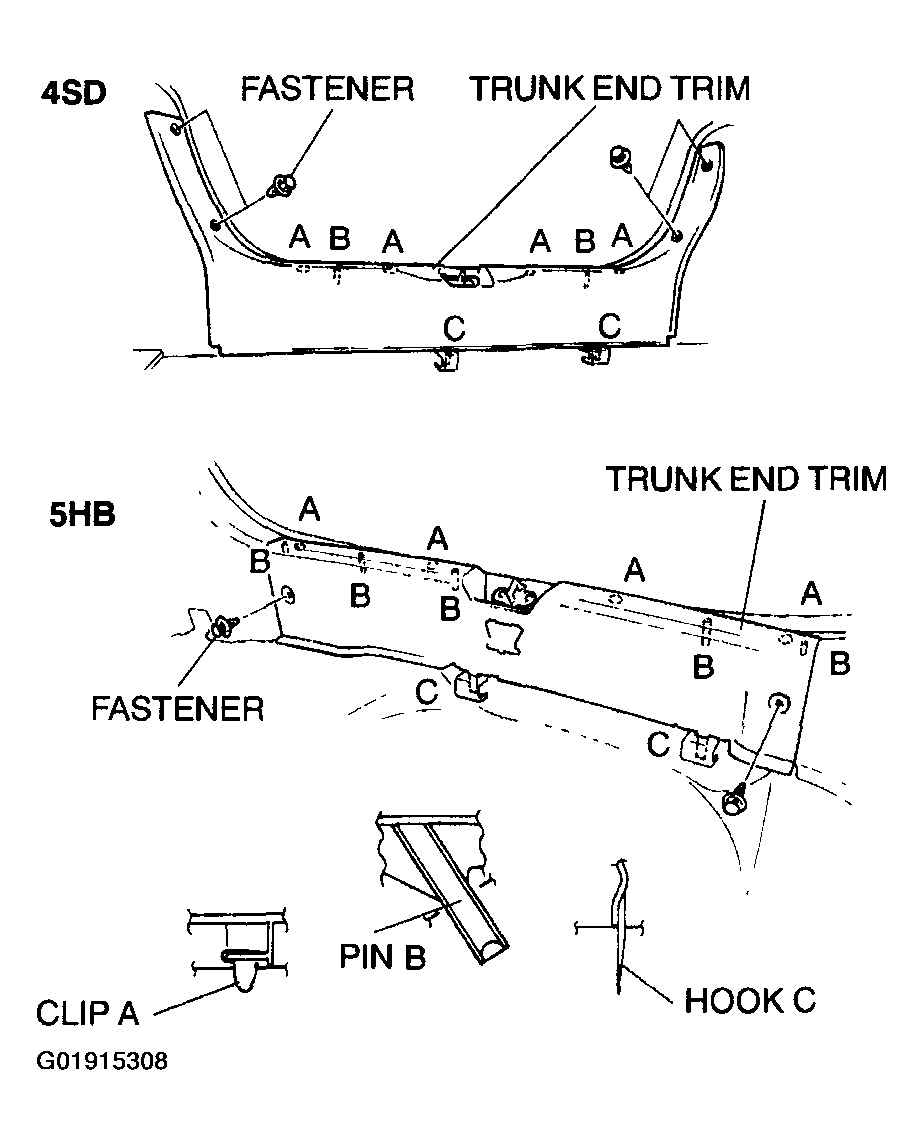

- Turn the weatherstrip over.
- Remove the fasteners.
- Disengage clips A using a fastener remover from the body.
- Pull the trunk end trim upward, then disengage pins B and C from the body.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
