Rear Package Trim Removal/Installation: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the straps from the strap hangers.
  2. Pull the rear package trim, then remove the hinge pin from the trunk side trim.

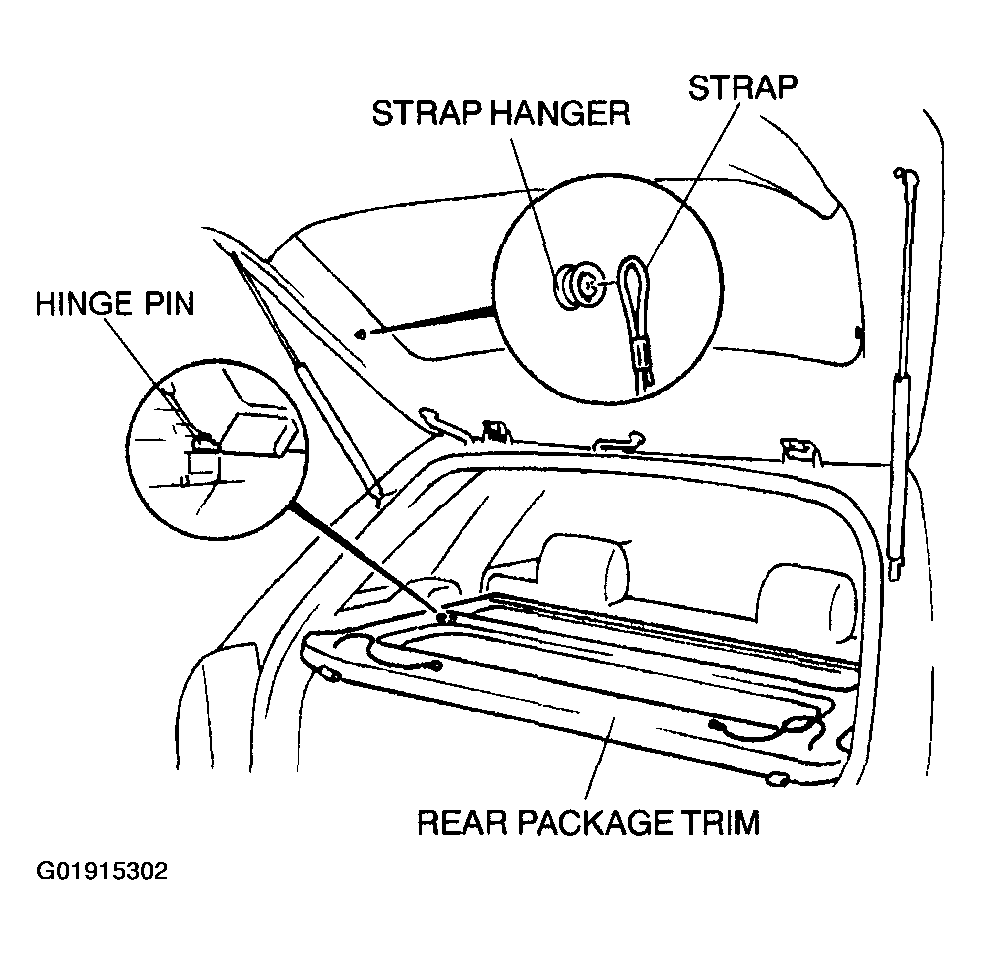

    Fig 1: Removing Rear Package Trim (5HB)
    G01915302Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
