Rear Package Trim Removal/Installation: 4SD

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat back.
Pull the rear package trim upward, then disengage clips A, pins B and tabs C from the body.
Pull the rear package trim toward you, then disengage tabs D from the body.

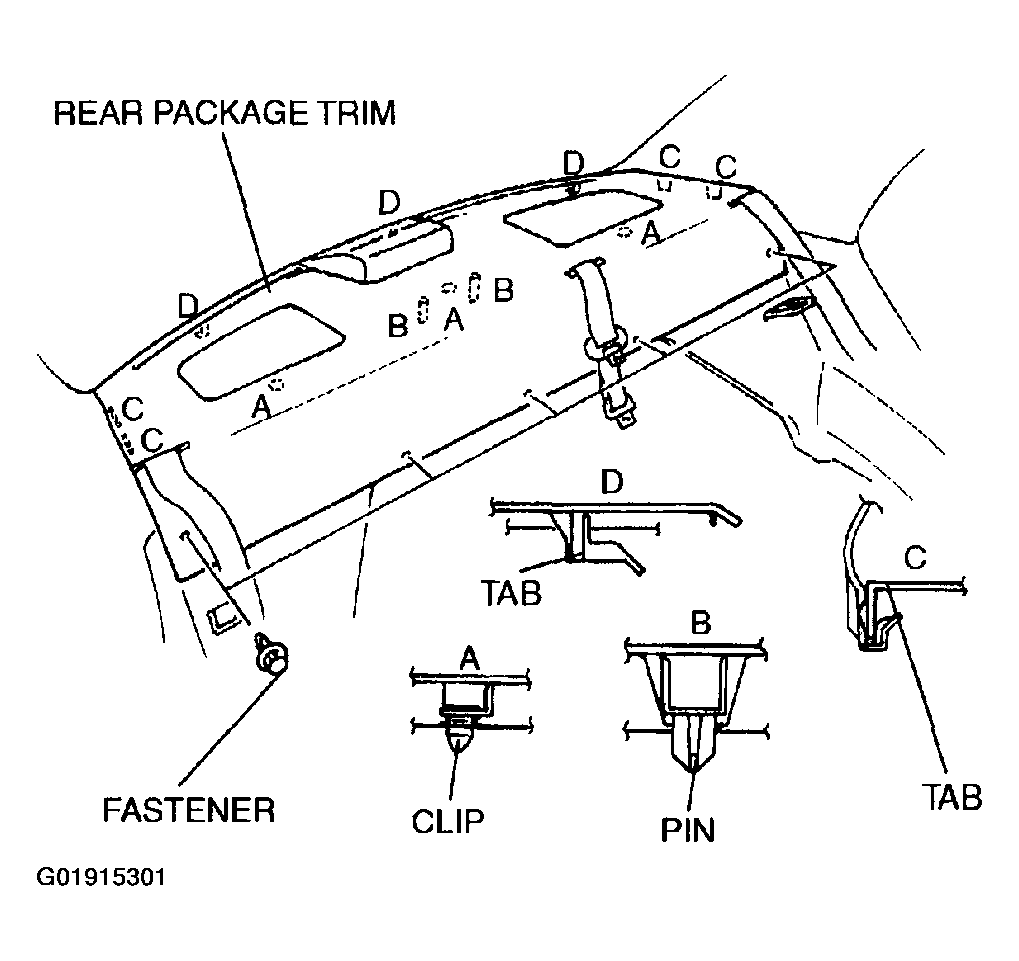

Fig 1: Removing Rear Package Trim (4SD)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
