Liftgate Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage clips A and pins B using a fastener remover, then remove the liftgate trim.

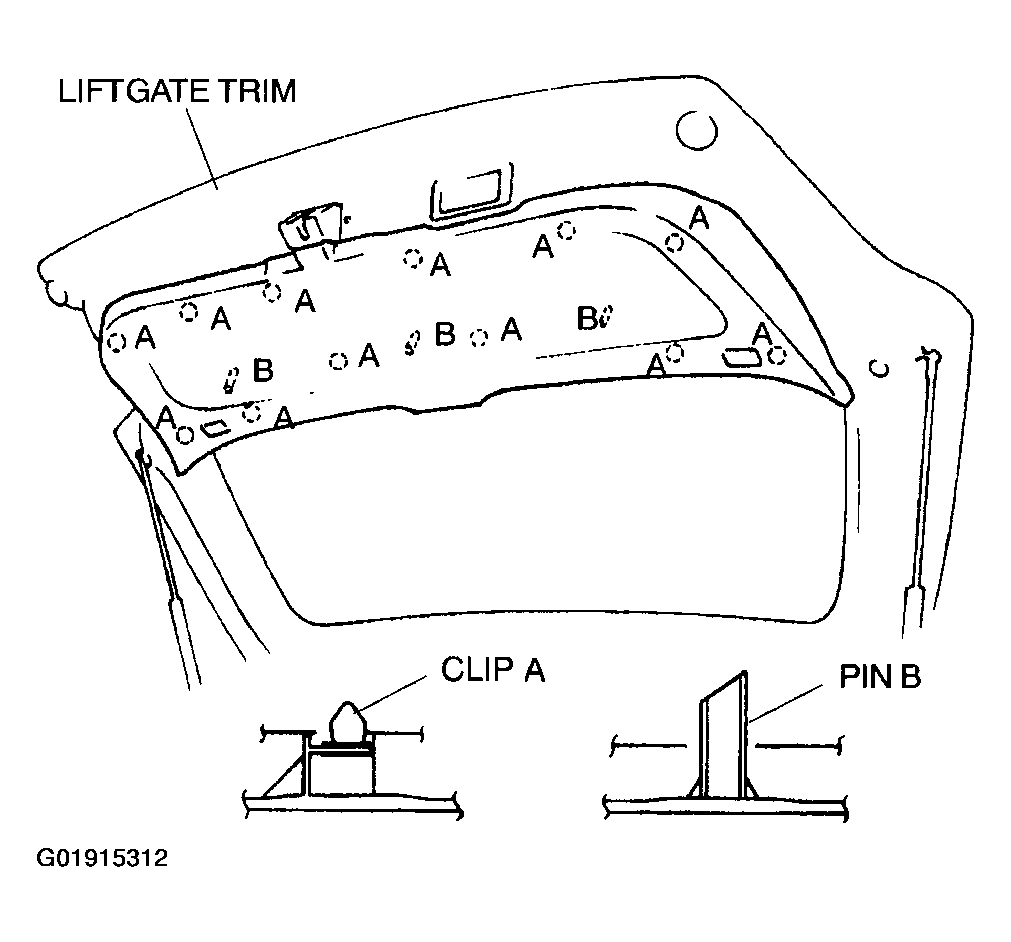

    Fig 1: Removing Liftgate Trim
    G01915312Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
