Console Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.

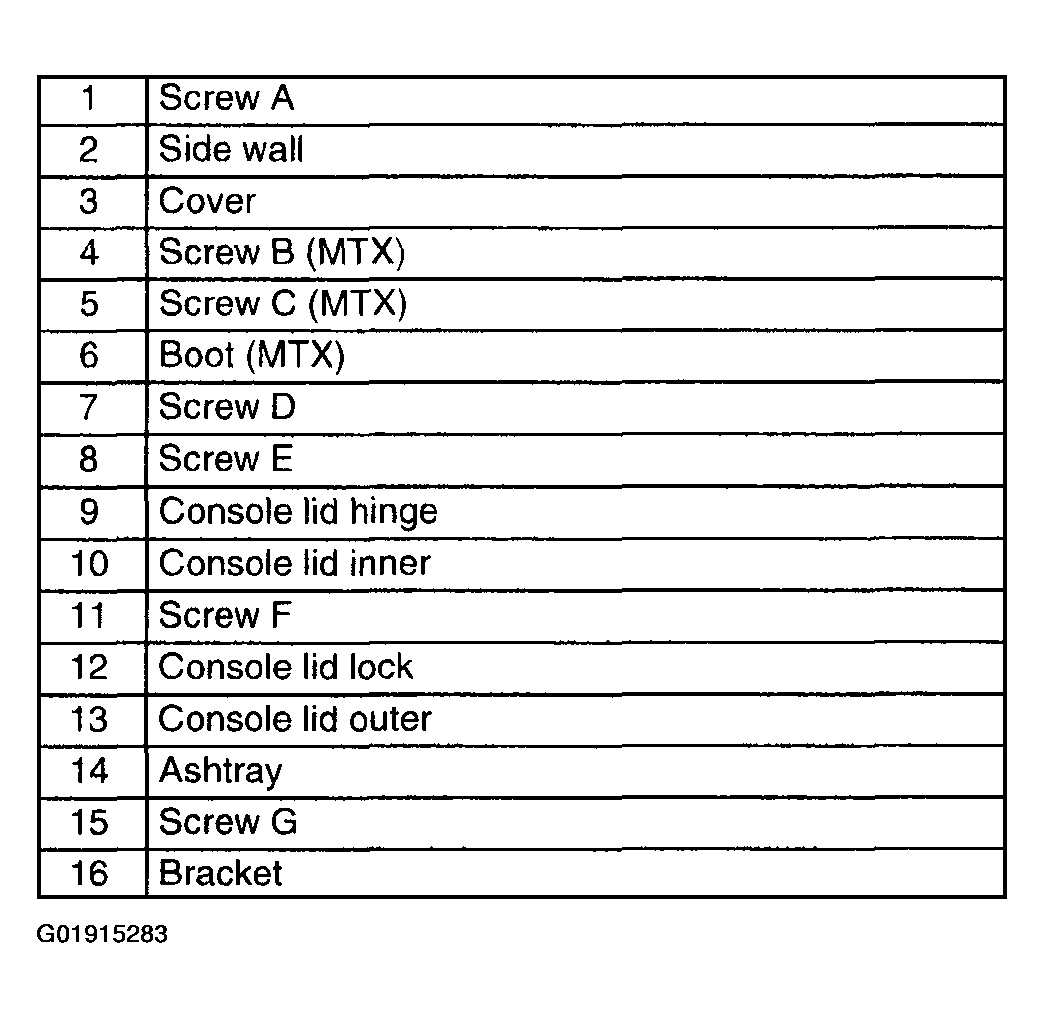

Fig 1: Console Cover Disassembling Sequence Index
Courtesy of MAZDA MOTORS CORP.

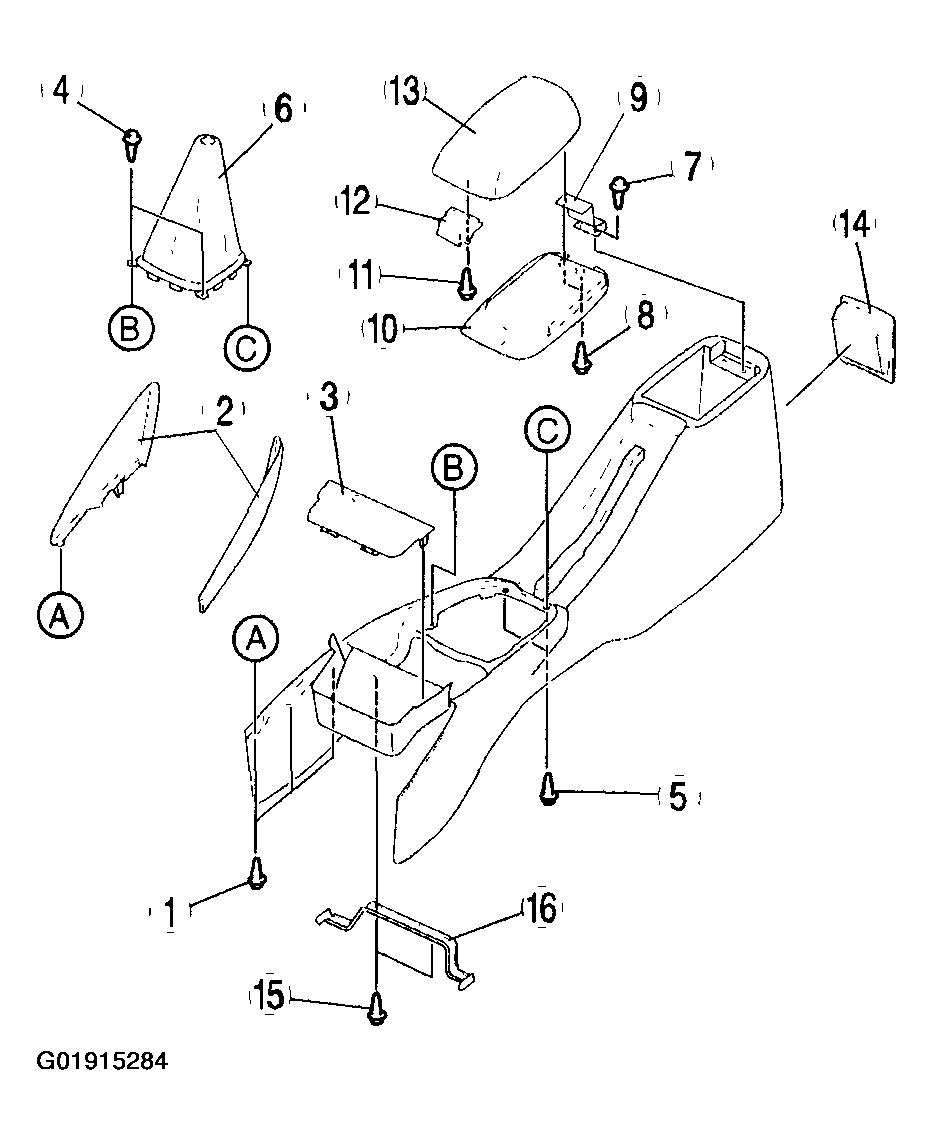

Fig 2: Disassembling Sequence Of Console Cover
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
