Center Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment.
  3. For vehicles equipped with the semi-logic type climate control unit, disconnect the wires for the heater unit. (See CLIMATE CONTROL UNIT REMOVAL .) (See CLIMATE CONTROL UNIT INSTALLATION .)
  4. Push out clip A from behind the dashboard.
    Fig 1: Pushing Out Clip A From Behind Dashboard
    G01915275Courtesy of MAZDA MOTORS CORP.
  5. Pull the center panel, then remove clips B and pins C from the dashboard.
  6. Disconnect the hazard warning switch connector and climate control unit connector.

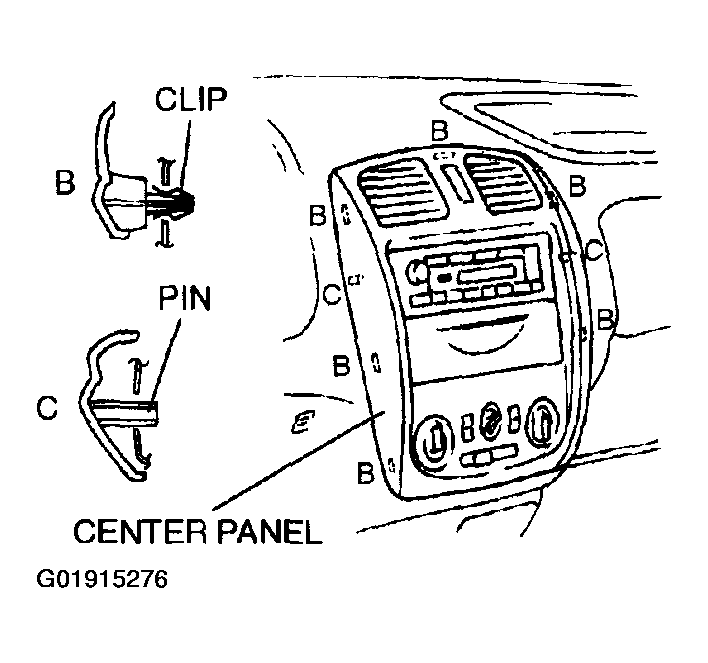

    Fig 2: Pulling Center Panel And Removing Clips B And Pins C From Dashboard
    G01915276Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
