C-Pillar Trim Removal/Installation: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk side trim.
  2. Remove the rear center seat belt upper anchor installation bolt. (LH only)
  3. Remove the fastener.
  4. Disengage clips A and pins B using a fastener remover.
  5. Pull the C-pillar trim upward, then disengage hooks C from the body.

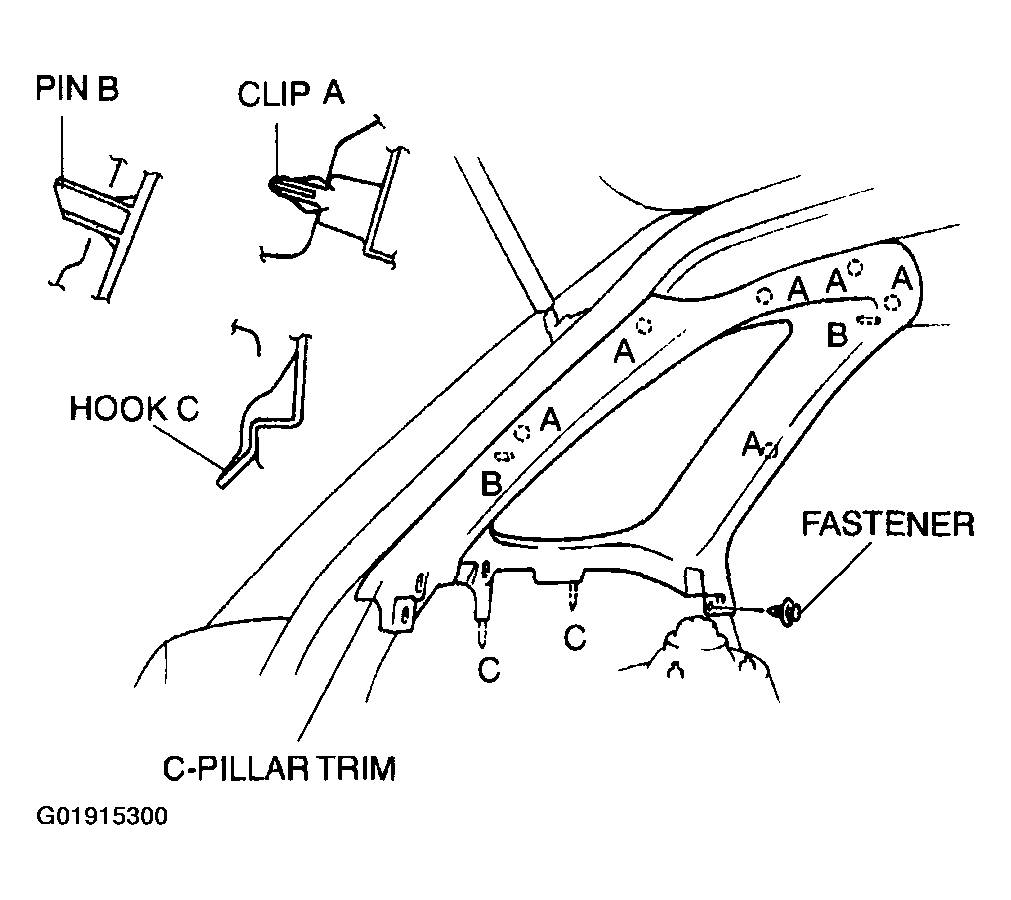

    Fig 1: Removing C-Pillar Trim (5HB)
    G01915300Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
