C-Pillar Trim Removal/Installation: 4SD
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the tire house trim.
- Turn the seaming welt over.

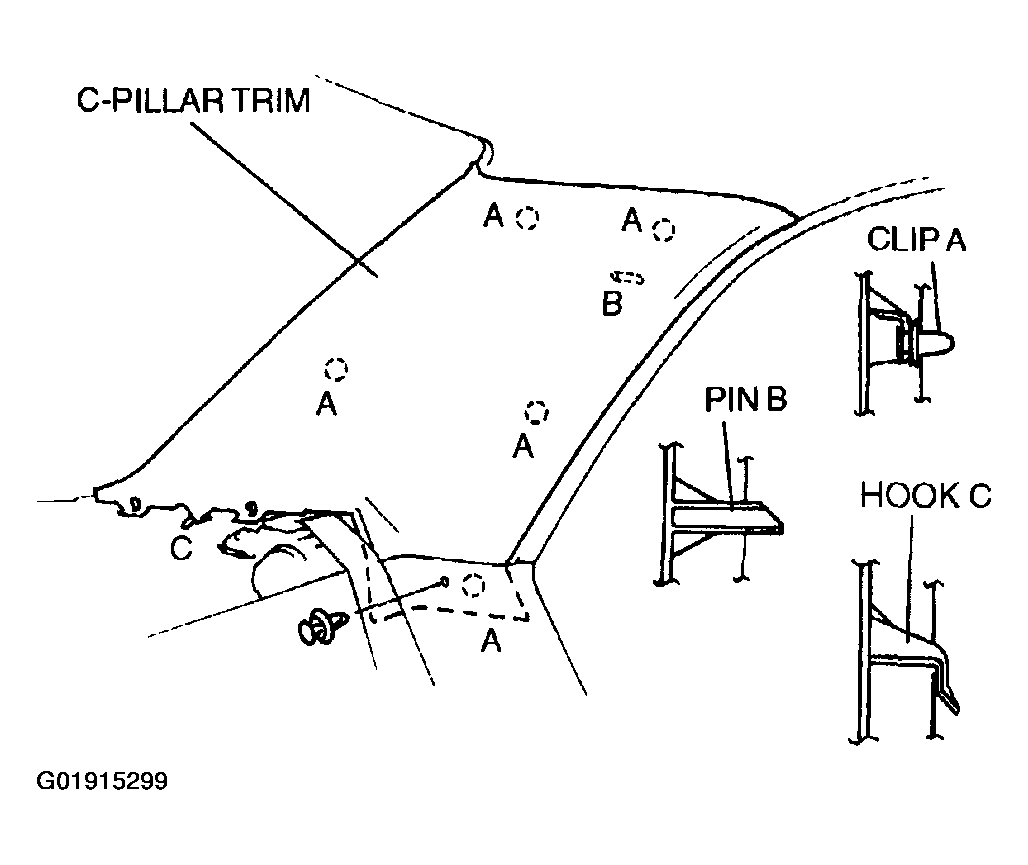

- Disengage clips A and pin B using a fastener remover.
- Pull the C-pillar trim upward, then disengage hook C from the body.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
