Side Step Molding Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the side air bag sensor improperly can accidentally deploy the side air bag module, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the side air bag sensor. (See AIR BAG SAFETY PRECAUTIONS .)

Turn the ignition switch to LOCK position.
Disconnect the negative battery cable and wait for more than 1 minute.
Remove the fasteners and clips B.
Disengage clips A from the vehicle front to remove the side step molding.

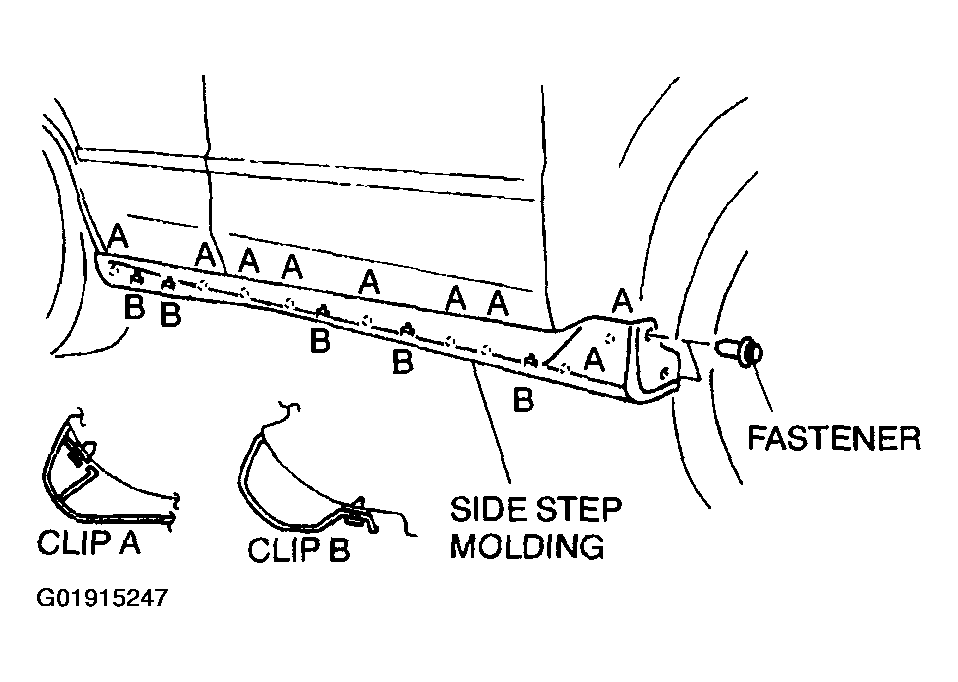

Fig 1: Disengaging Clips A From Vehicle Front To Removing Side Step Molding
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
