Side Protector Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the adhesive remaining on the side protector (if it will be reused) and the body using a razor.
Remove any grease or dirt from the adhesion surface of the side protector (if it will be reused) and the body.
Attach double-sided adhesive tape to the side protector as shown (if it will be reused).

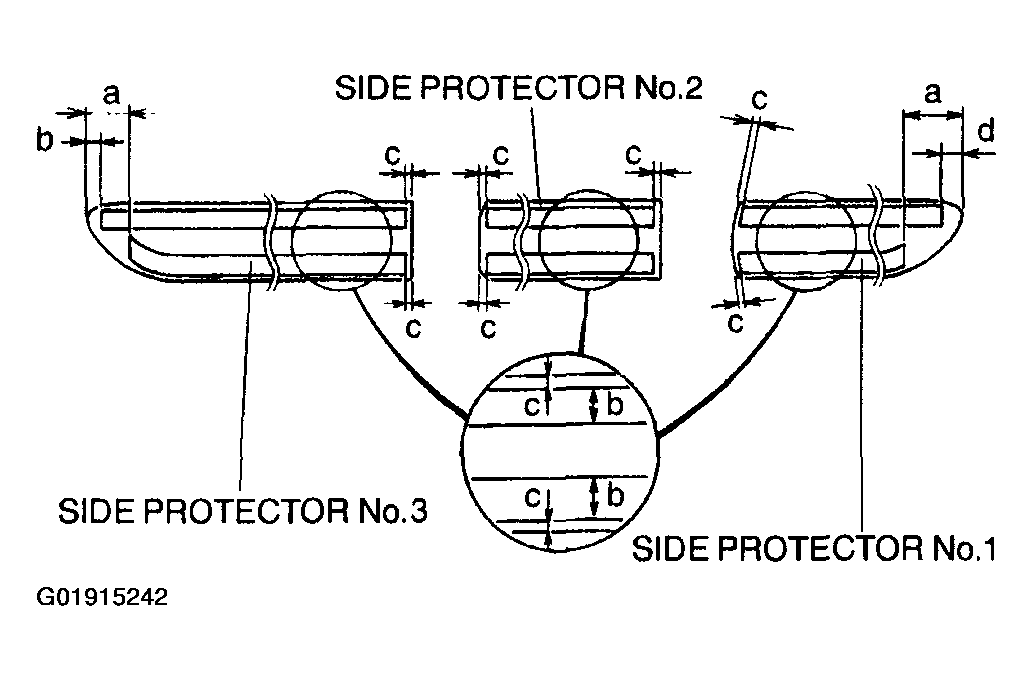

Fig 1: Attaching Double-Sided Adhesive Tape To Side Protector
Courtesy of MAZDA MOTORS CORP.

A: 25.0 mm (0.98 in)

B: 7.0 mm (0.28 in)

C: 1.0-3.0 mm (0.04-0.11 in)

D: 9.0 mm (0.35 in)
Peel off the backing from the double-sided adhesive tape and attach the side protector onto the body as shown.

Fig 2: Attaching Side Protector Onto Body
Courtesy of MAZDA MOTORS CORP.

A: 0.66-3.66 mm (0.03-0.14 in)

B: 7.74 mm (0.30 in)

C: 4.0-7.0 mm (0.16-0.27 in)

D: 0.5-3.5 mm (0.02-0.13 in)

E: 3.0-6.0 mm (0.12-0.23 in)
