Rear Carrier Bar Installation Note
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

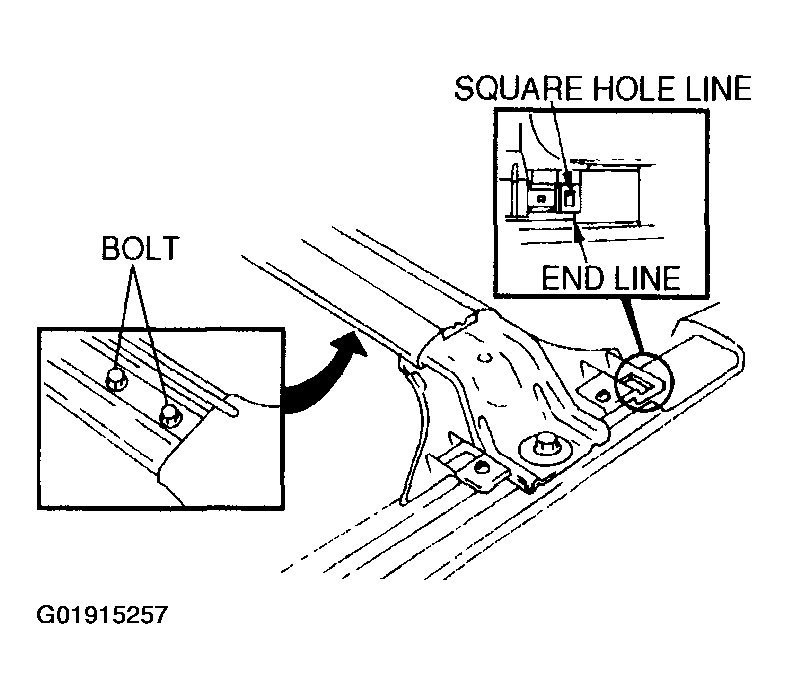

- Loosen the bolt under the rear carrier bar, and adjust the rear carrier bar position.
- When the rear carrier bar is in the final position, align the square hole line for cover B with the rear cover line.
Courtesy of MAZDA MOTORS CORP.
