Roof Carrier Removal/Installation: Rear: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

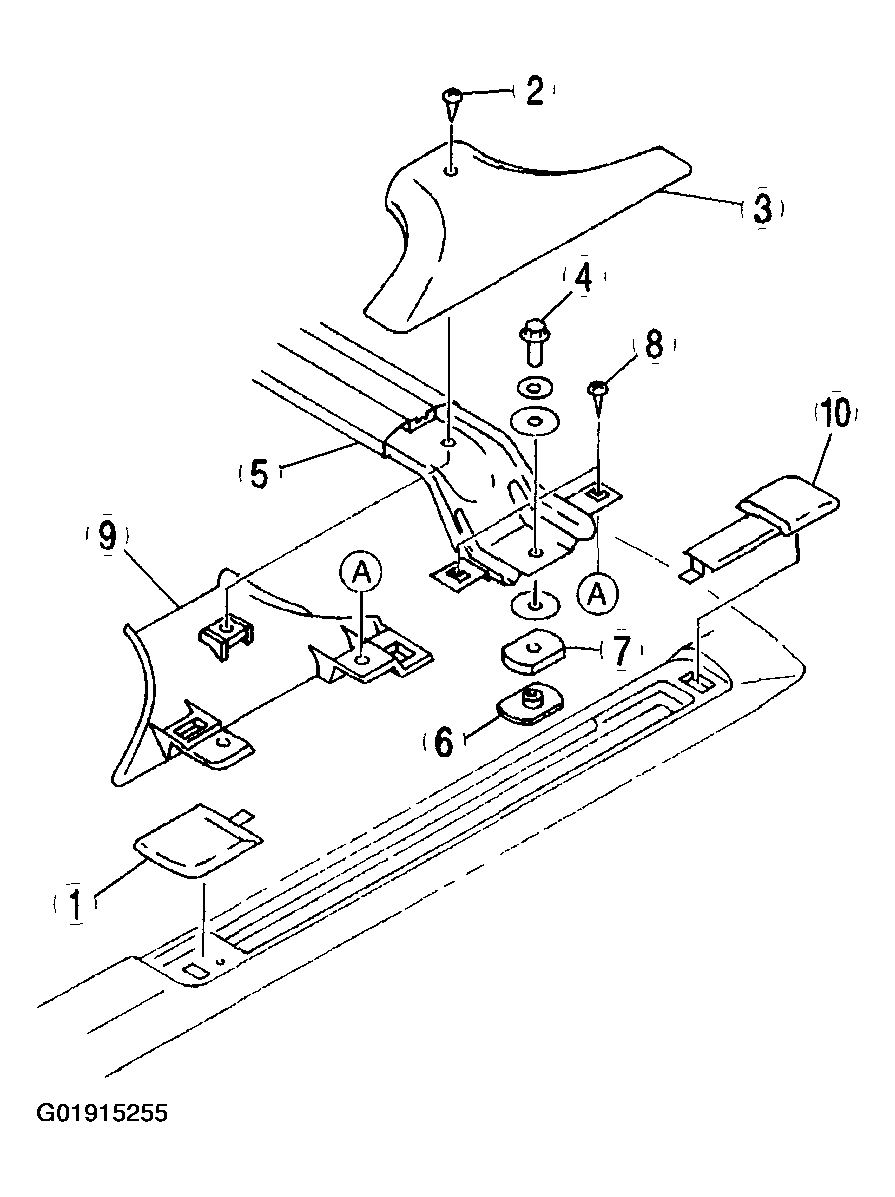

Fig 1: Removing Sequence Of Front Carrier Bar
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Carrier Bar Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
