Rear Spoiler Removal/Installation: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the hole cover A using a tape-wrapped screwdriver.
Remove the fasteners, then remove hole cover B.

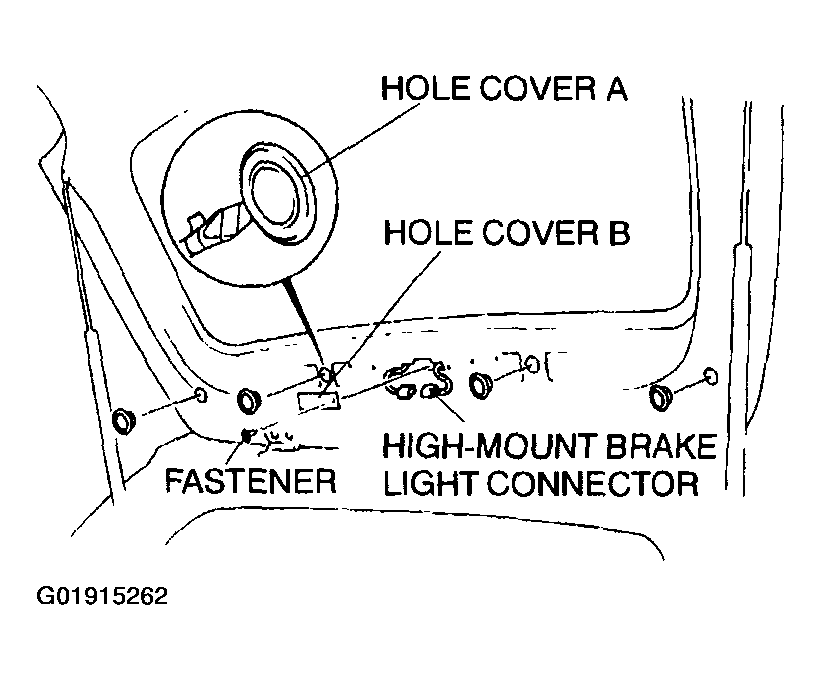

Fig 1: Removing Fasteners And Removing Hole Cover B
Courtesy of MAZDA MOTORS CORP.
Pull out the high-mount brake light connector, then disconnect it.
Remove the bolts and nuts.
Pull the rear spoiler upward, then disengage clips A from the body.

Fig 2: Removing Rear Spoiler (5HB)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
