Rear Spoiler Installation (MAZDASPEED)

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the solderless connector and fix it using bands.
    CAUTION:
    • When connecting the solderless connector, extend the lead wire 0-5 mm out of the solderless connector to prevent the wire from slipping out
    NOTE:
    • The high-mount brake light is connected to the vehicle harness with a short cord.
  2. To avoid abnormal noise, fix the solderless connector to the vehicle harness using bands.
  3. Install the nuts in the order shown in the figure.
  4. Connect the negative battery cable.

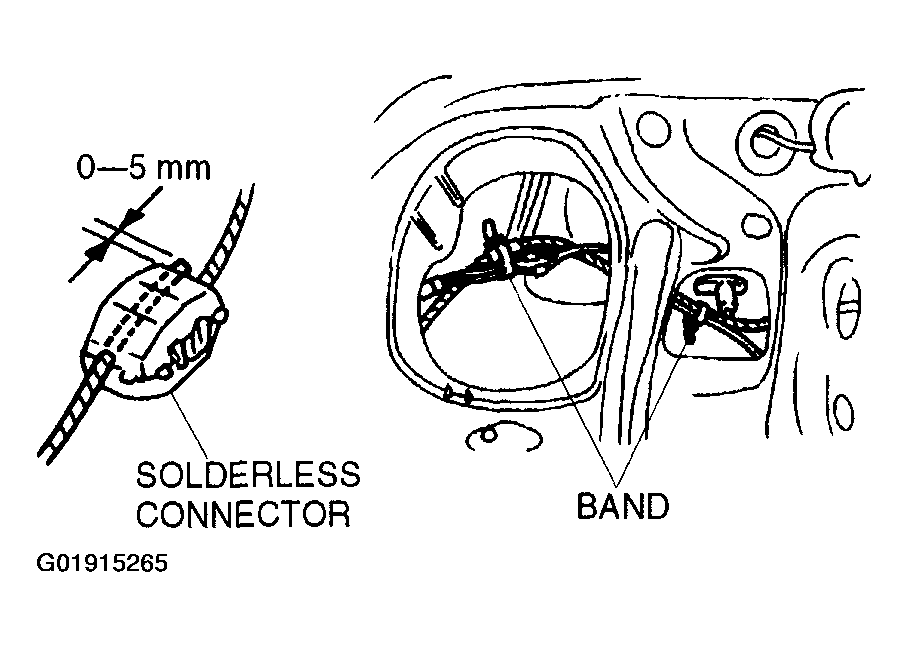

    Fig 1: Connecting Solderless Connector
    G01915265Courtesy of MAZDA MOTORS CORP.

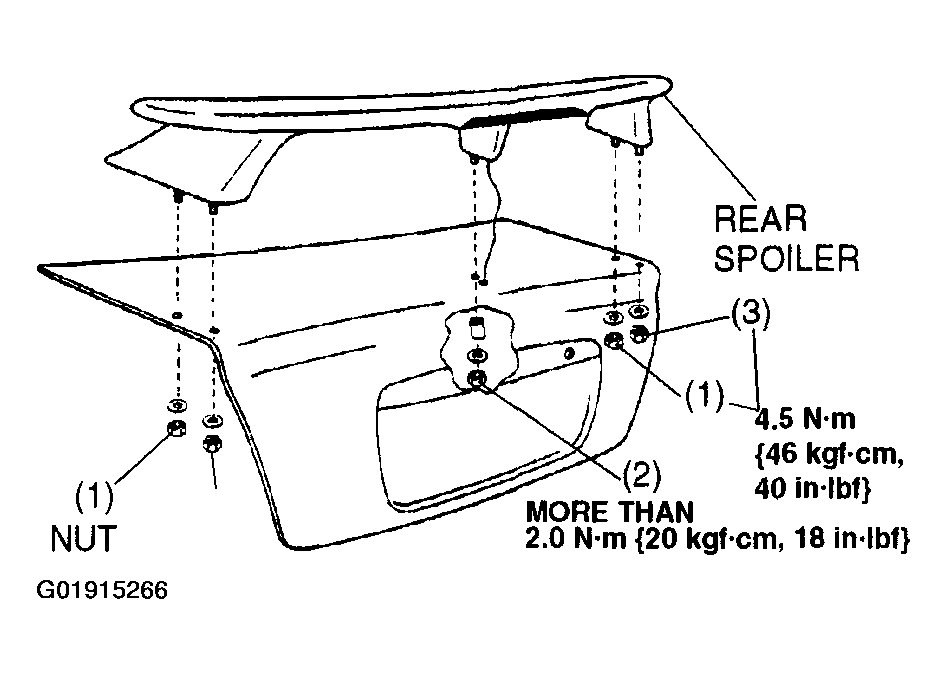

    Fig 2: Installing Rear Spoiler (Mazdaspeed)
    G01915266Courtesy of MAZDA MOTORS CORP.
