Hood Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

Fig 1: Removing Order Table
Courtesy of MAZDA MOTORS CORP.

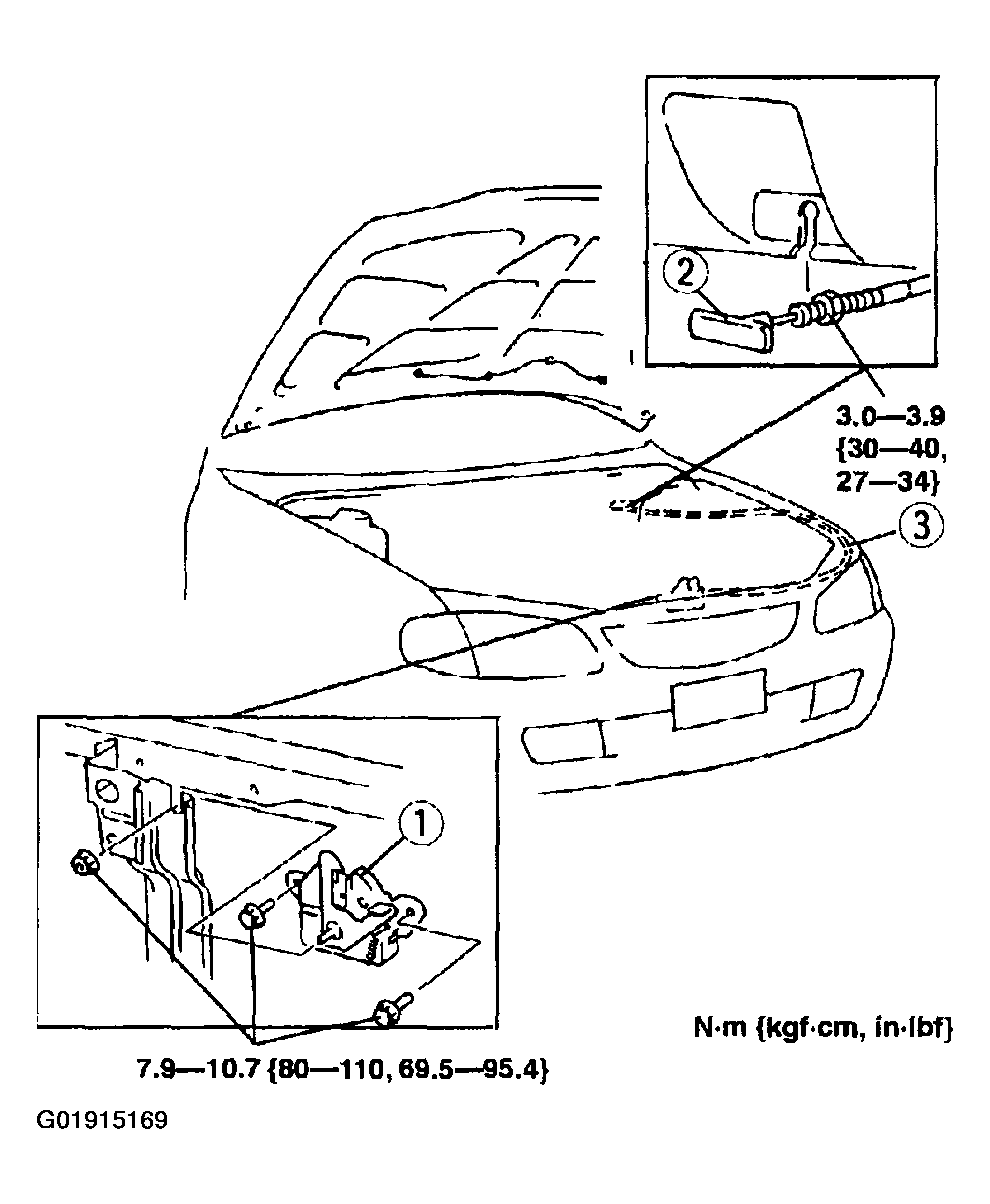

Fig 2: Removing Hood Lock And Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
