Rear seat back

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the rear seat cushion.
Remove the service hole cover.
Remove in the order indicated in the figure.

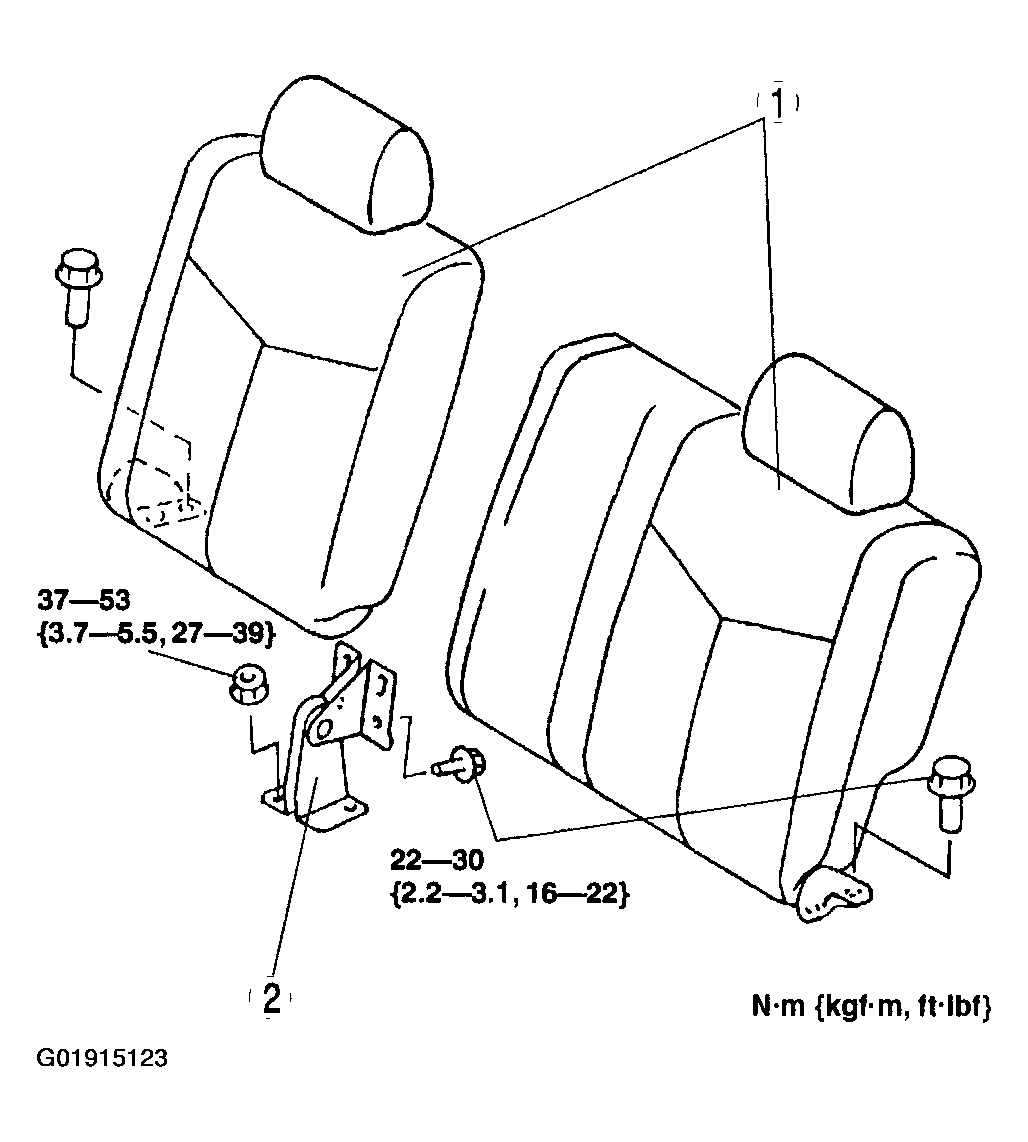

Fig 1: Rear Seat Back Removal Order Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Rear Seat Back
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
