Rear Seat Disassembly/Assembly: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

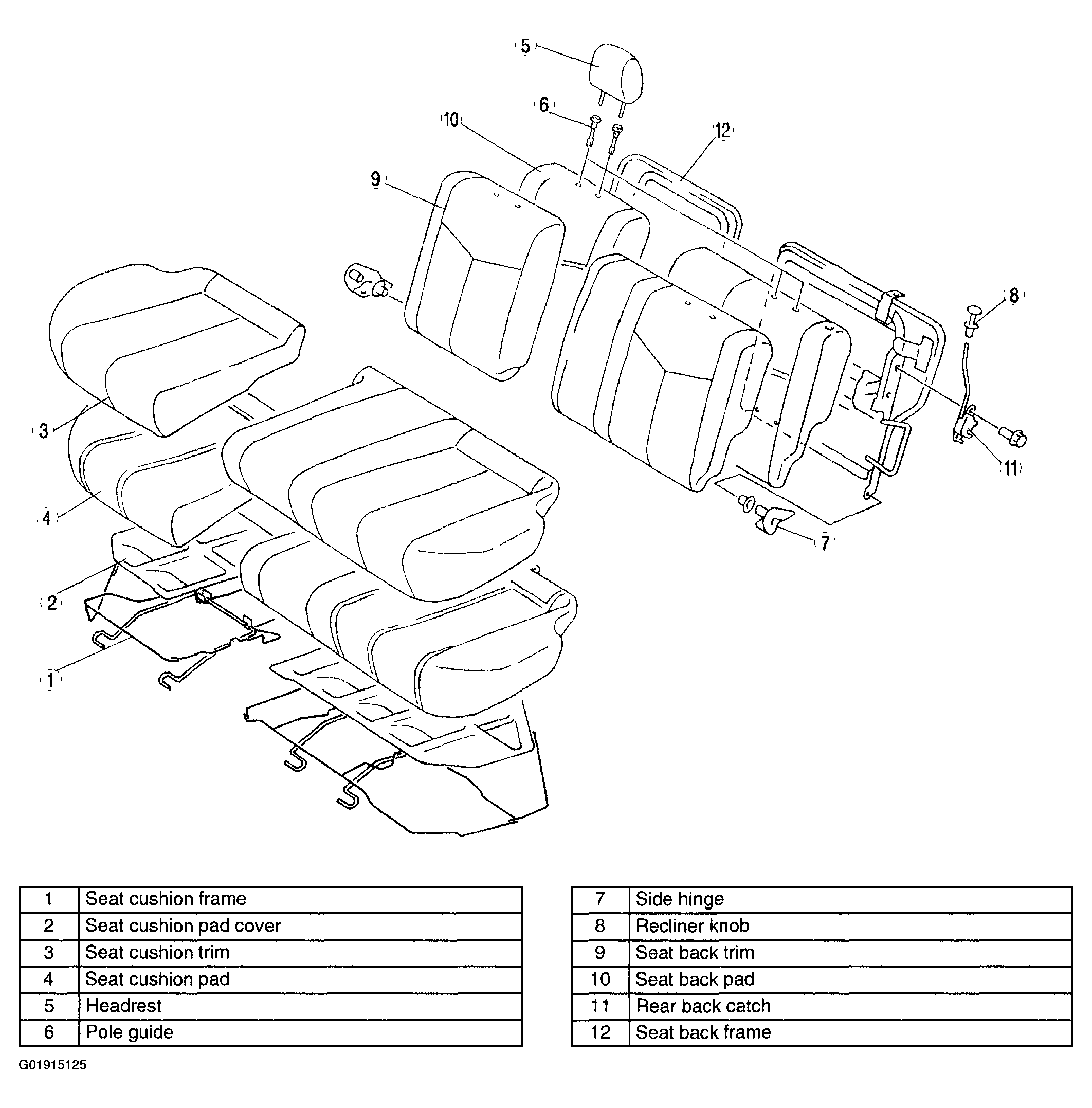

    Fig 1: View Of Rear Seat (5HB)
    G01915125Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
