Passenger's Seat

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the front seat (side air bag) improperly can accidently deploy the side air bag, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before handling the front seat.
  1. Remove the passenger-side side air bag module. (See PASSENGER-SIDE AIR BAG MODULE .)
  2. Disassemble in the order indicated in the figure.
  3. Assemble in the reverse order of disassembly.

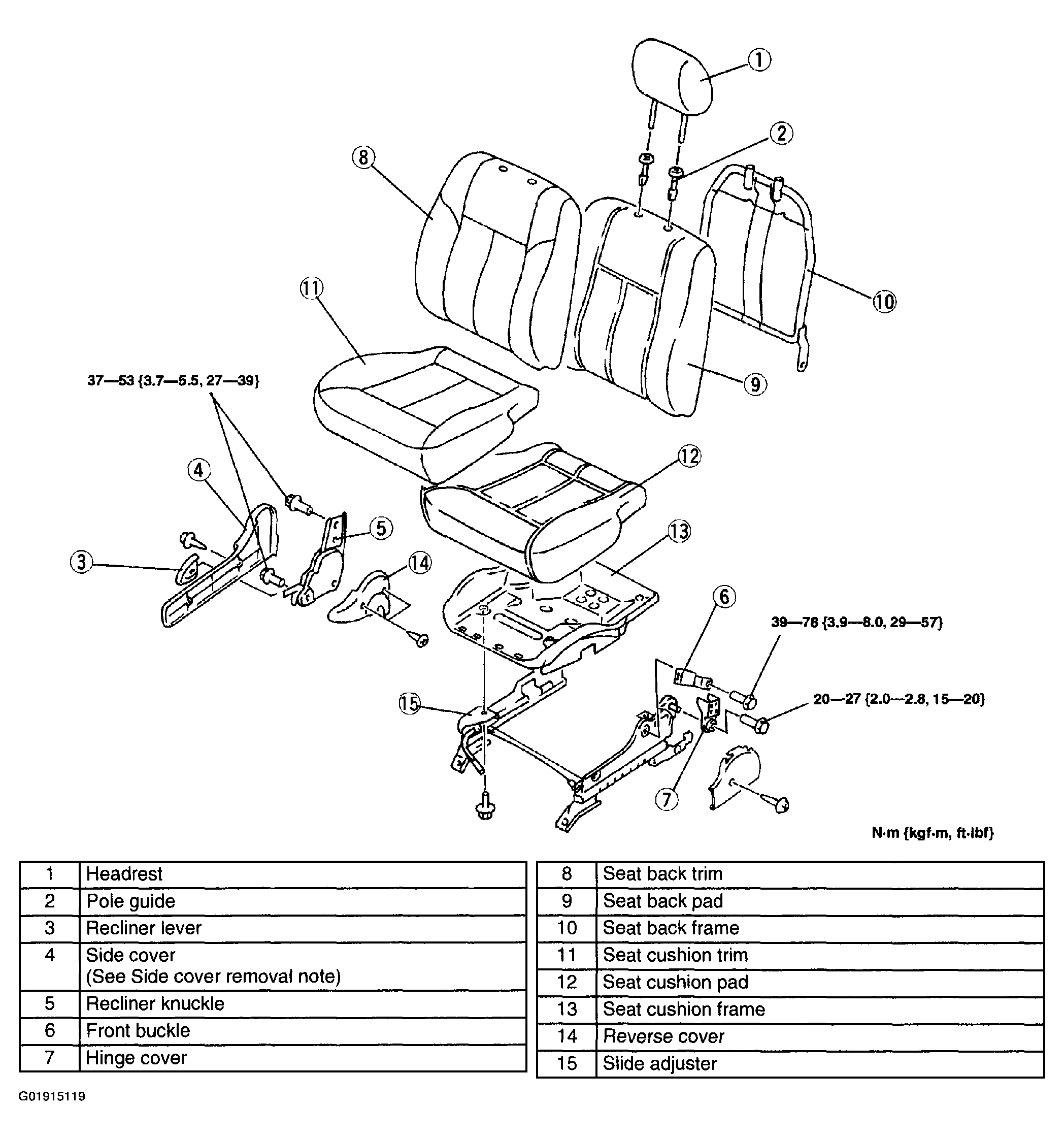

    Fig 1: Exploded View Of Passenger's Seat Components
    G01915119Courtesy of MAZDA MOTORS CORP.
