Rear Window Glass Removal: 5HB: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the liftgate trim.
  3. Remove the rear spoiler.
  4. Apply protective tape along the edge of body to protect it from damage.
    Fig 1: Applying Protective Tape Along Edge Of Body To Protect From Damage
    G01915040Courtesy of MAZDA MOTORS CORP.
  5. Remove the lip of the rear window molding using a razor.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
    NOTE:
    • The rear window molding is a replacement part.

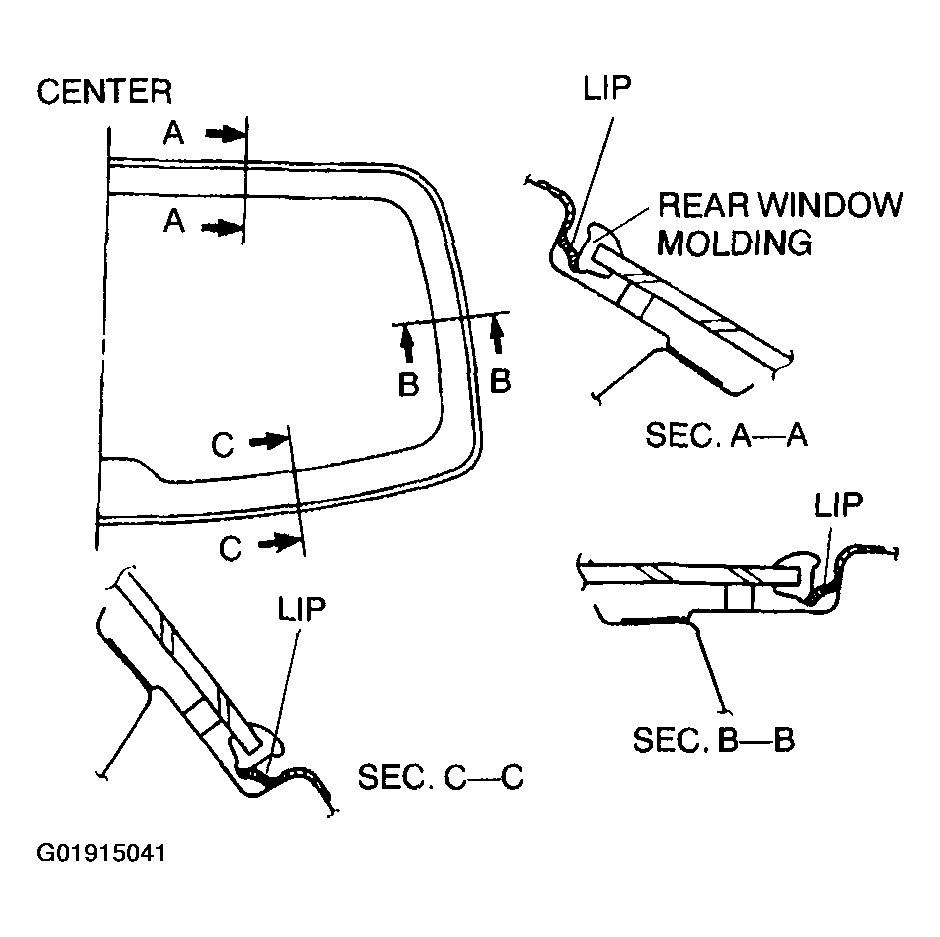

    Fig 2: Removing Lip Of Rear Window Molding
    G01915041Courtesy of MAZDA MOTORS CORP.
