Rear Door Adjustment
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

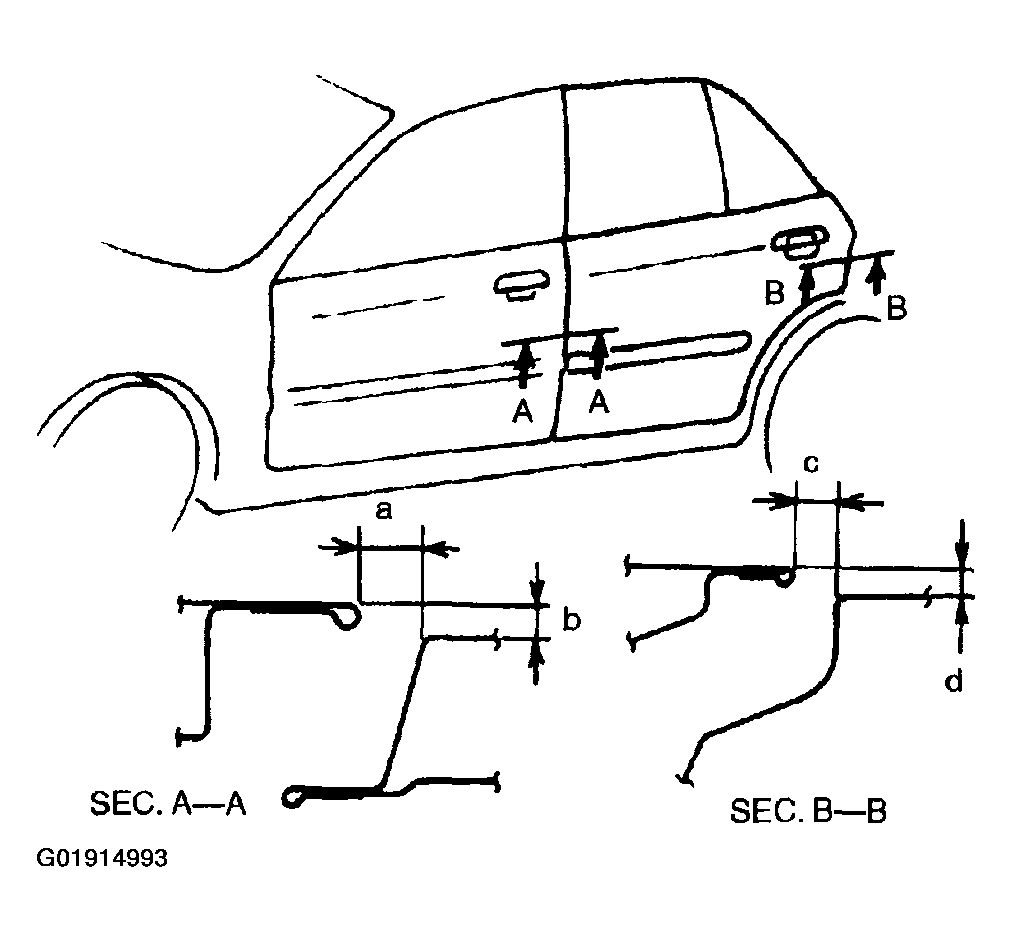

- Measure the gap and height between the rear door and the body.
- If not as specified, loosen the door hinge installation bolts or the door lock striker installation screws, and reposition the door. (See REAR DOOR REMOVAL/INSTALLATION .) (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)
Clearance
a: 3.5-5.5 mm {0.14-0.21 in}
b: -1.0-0.5 mm {-0.040-0.019 in}
c: 3.0-5.0 mm {0.12-0.19 in}
d: -1.0-1.0 mm {-0.040-0.039 in}
- Tighten the bolts or screws.
