Liftgate Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate trim.
  3. Disassemble in the order indicated in the table.
  4. Assemble in the reverse order of disassembly.

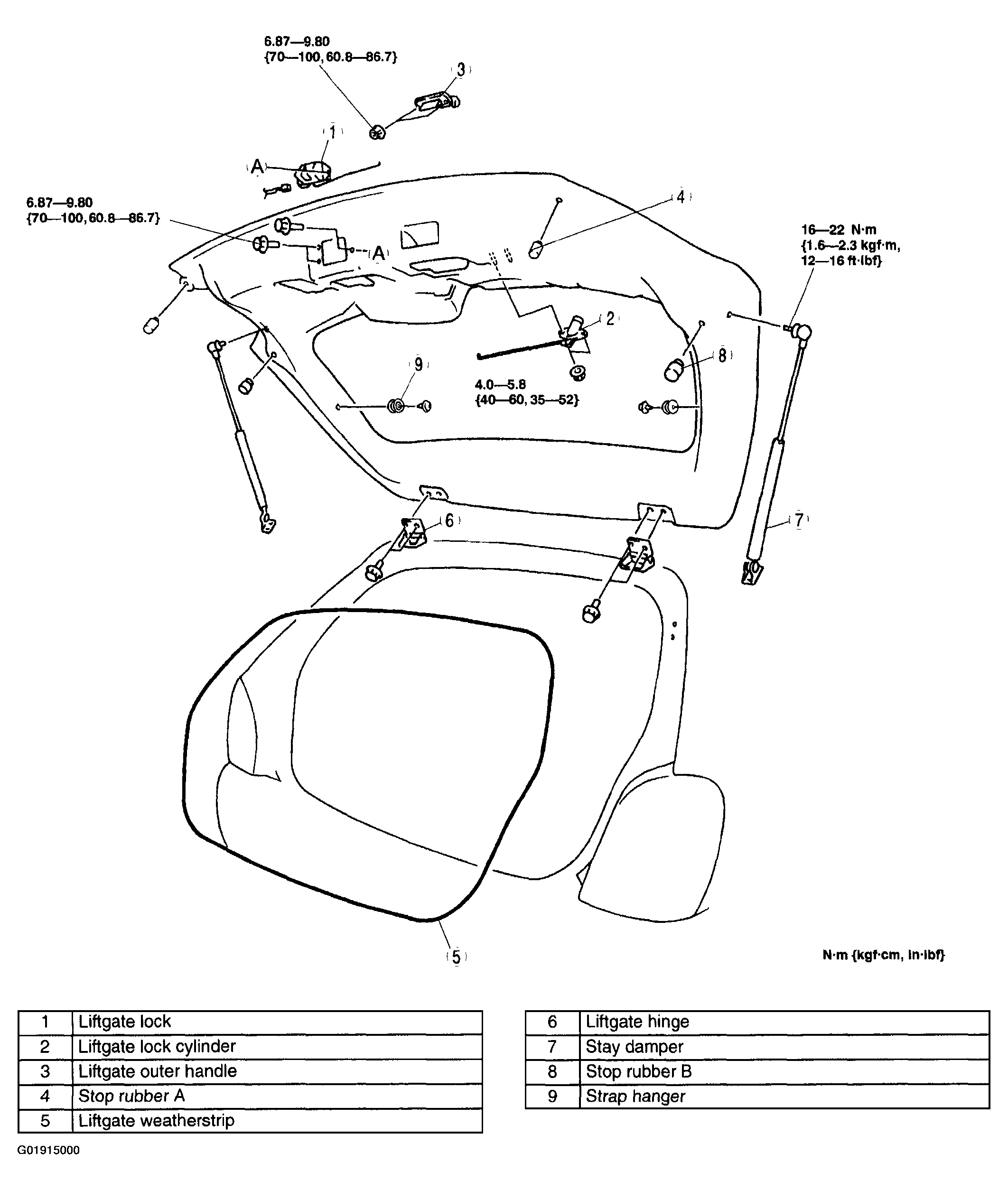

    Fig 1: Identifying Components Of Liftgate
    G01915000Courtesy of MAZDA MOTORS CORP.
