Balance Spring Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The balance springs are under high tension.

Push the tab of the clip to open the cover using a tape-wrapped flathead screwdriver.
Remove the balance springs from the clip.

Fig 1: Removing Balance Springs From Clip
Courtesy of MAZDA MOTORS CORP.
Remove the balance spring from the trunk lid hinge using a tape-wrapped flathead screwdriver.

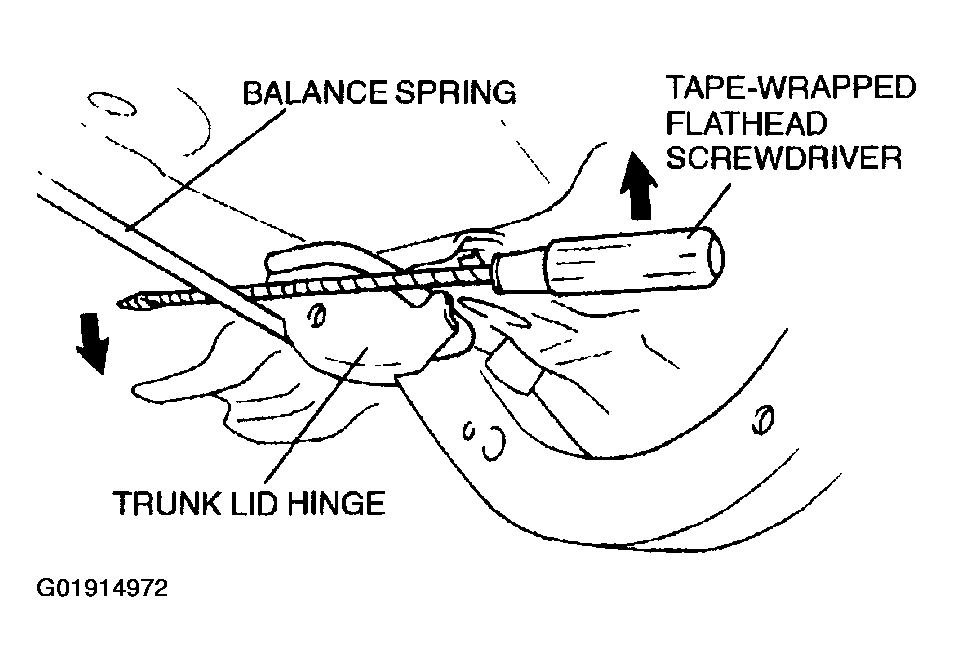

Fig 2: Removing Balance Spring From Trunk Lid Hinge
Courtesy of MAZDA MOTORS CORP.
