Rear Bumper Removal/Installation: 4SD

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the rear combination lights. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

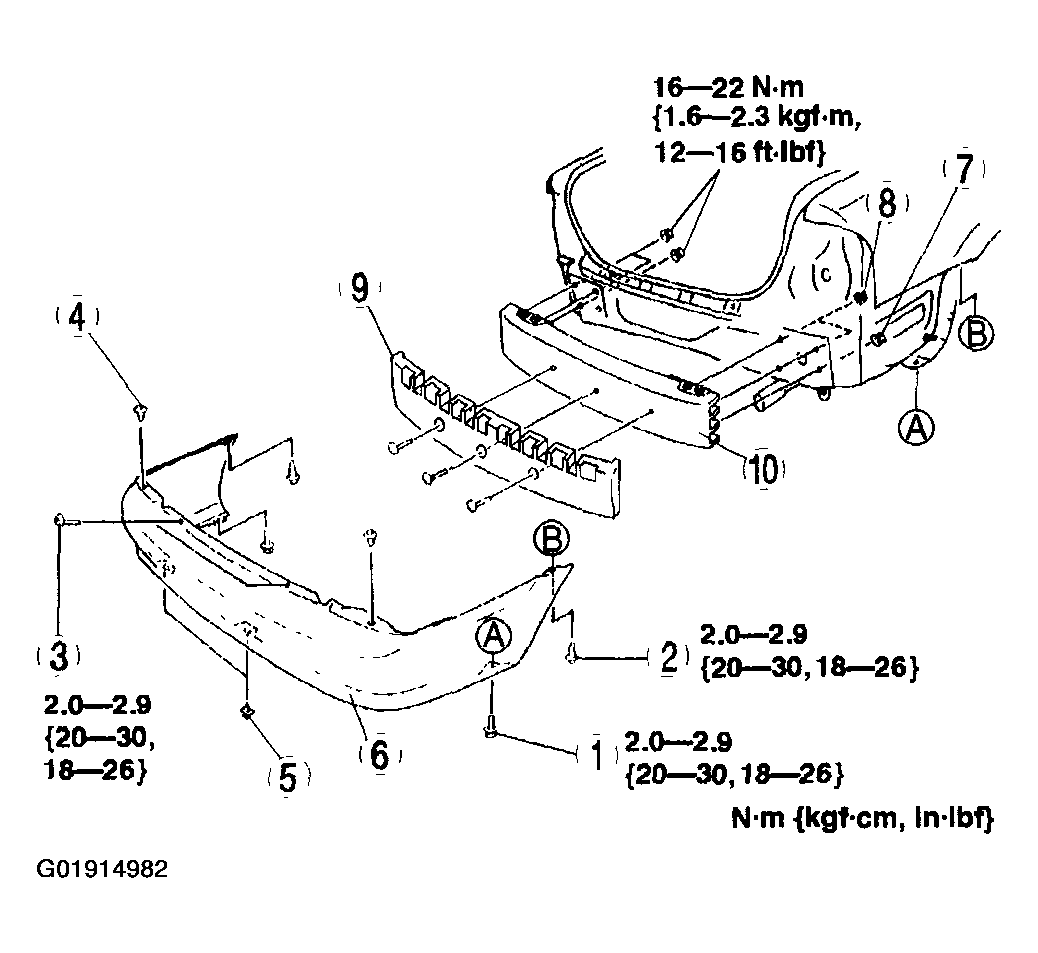

Fig 1: Identifying Removing Sequence Of Rear Bumper - SD (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

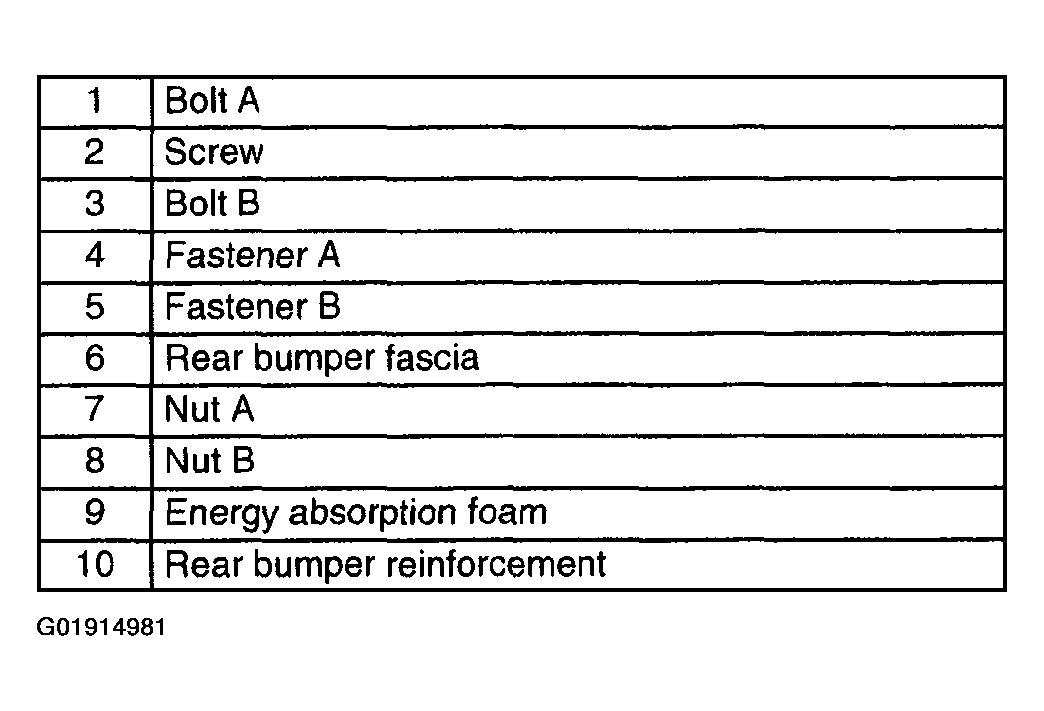

Fig 2: Identifying Removing Sequence Of Rear Bumper - SD (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
