Hood Adjustment: Notes
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the gap and height between the bonnet and the body.
- If not as specified, adjust the gap and height.

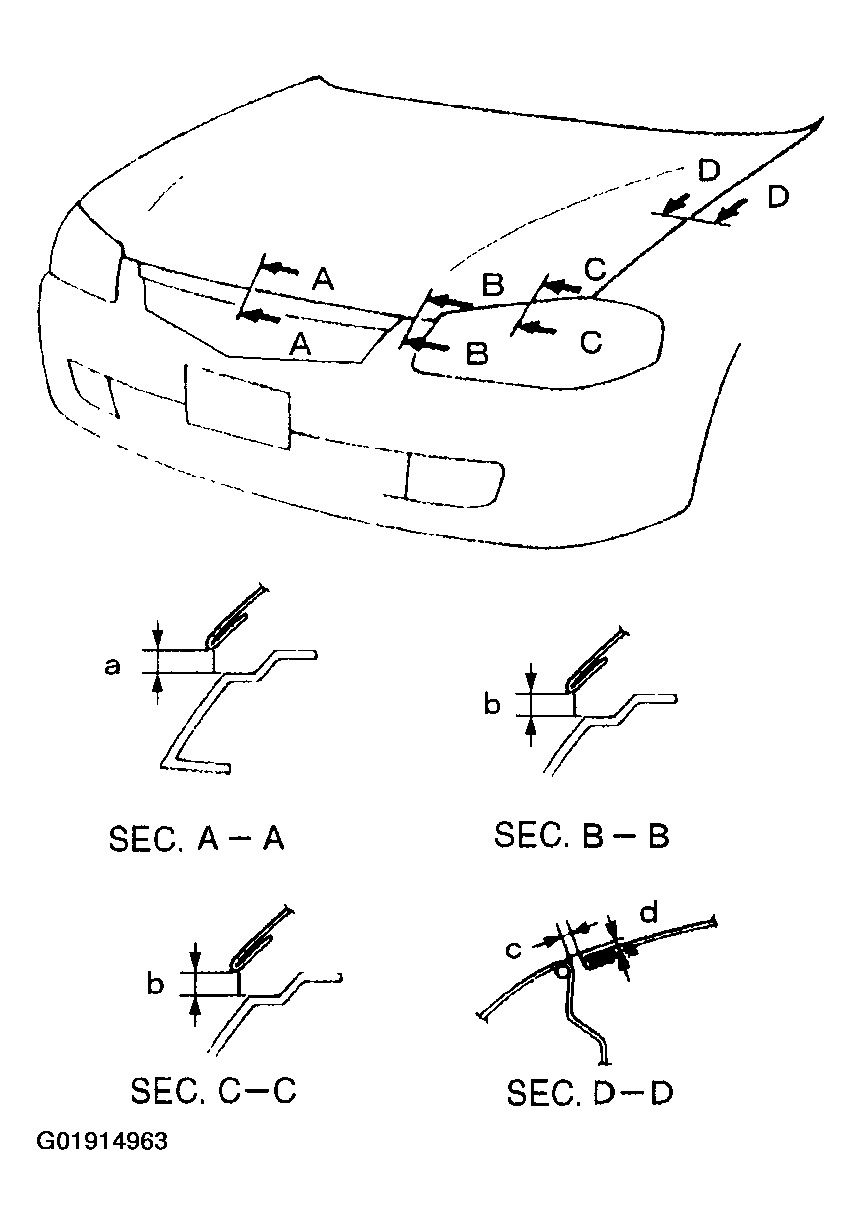

Clearance
a: 3.7-8.3 mm {0.15-0.33 in}
b: 4.0-8.0 mm {-0.16-0.32 in}
c: 3.0-5.0 mm {0.12-0.20 in}
d:-1.0-1.0 mm {-0.04-0.04 in}
