Front Bumper Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. While supporting the connection between the front bumper and bracket, pull the front bumper forward to disengage the connection.
    NOTE:
    • The connection between the front bumper and bracket does not disengage until the front bumper is pulled forward. Be sure to pull the front bumper forward to disengage it from the bracket.
  2. Remove the front bumper.

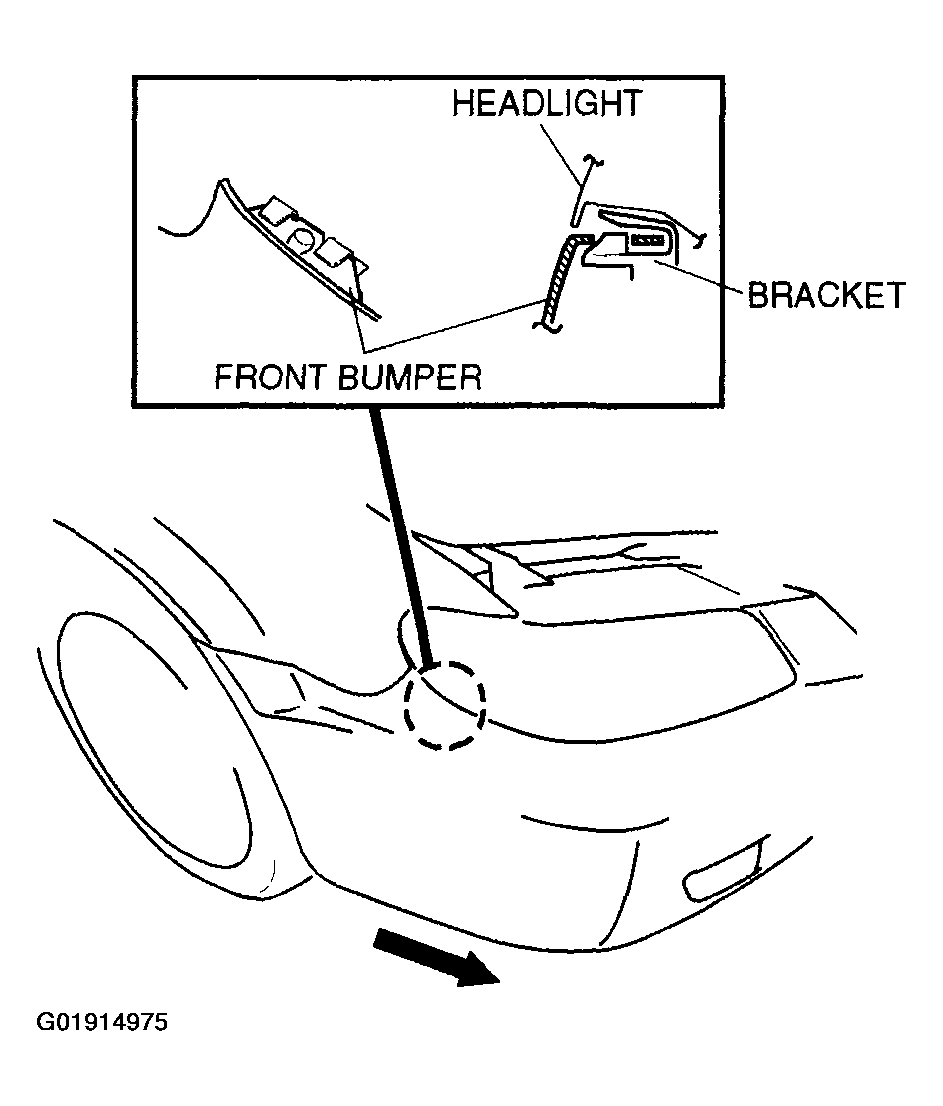

    Fig 1: Removing Front Bumper
    G01914975Courtesy of MAZDA MOTORS CORP.
